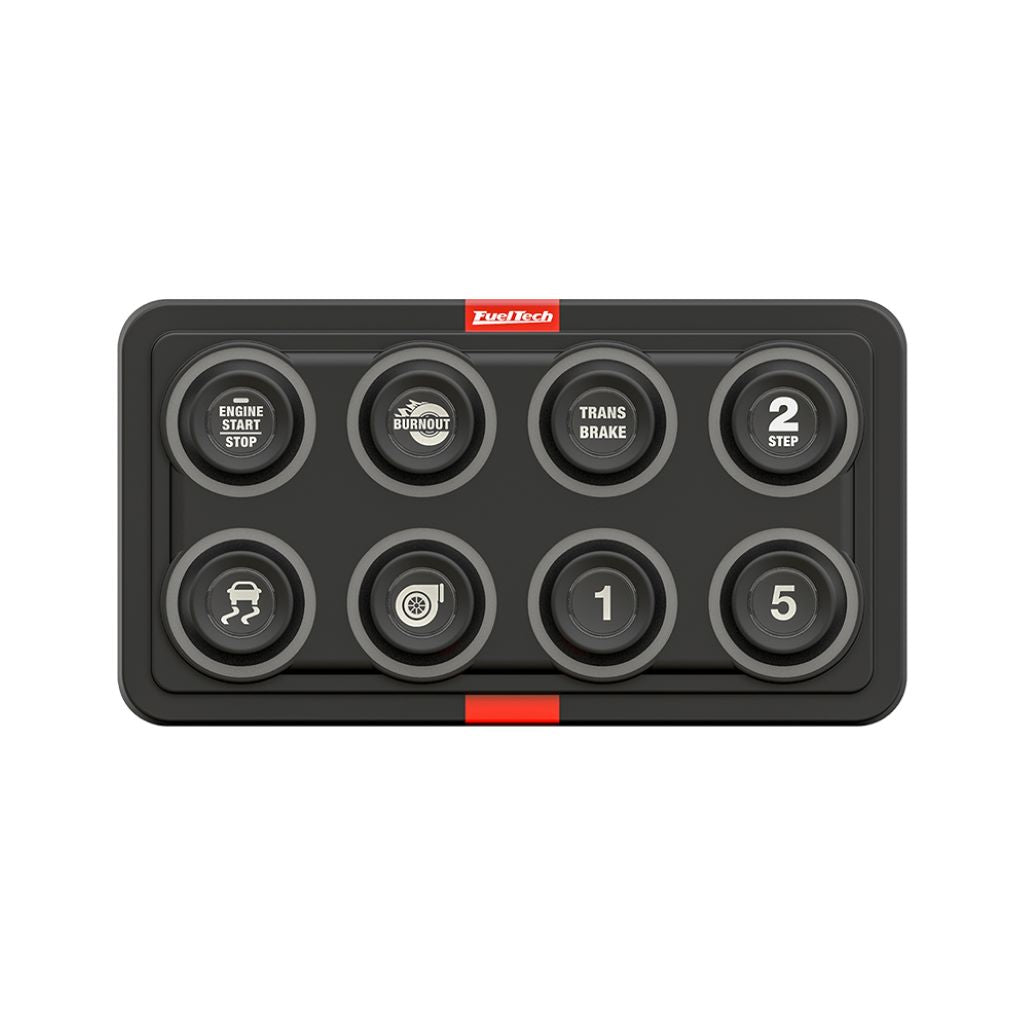

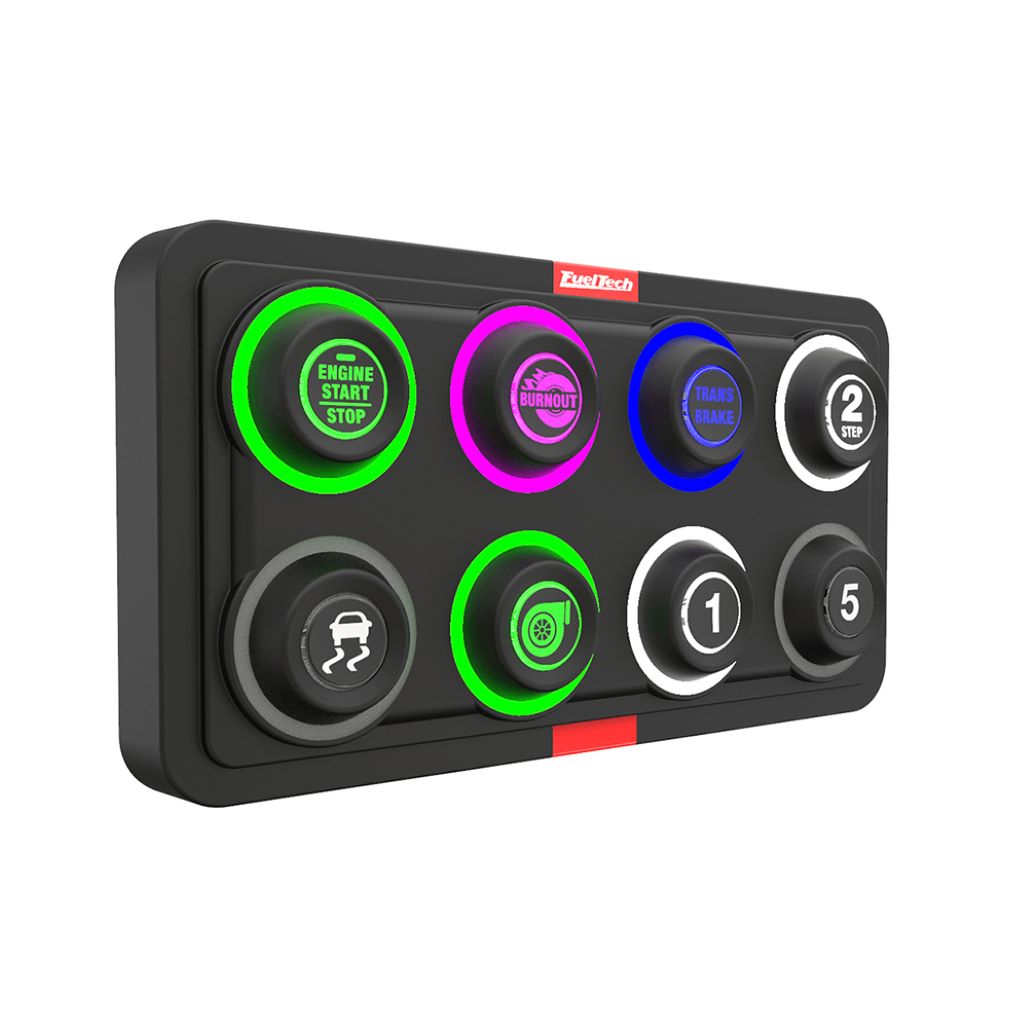

The SwitchPanel-8 Mini is a compact 8-button racing switch panel with multicolor LED backlighting behind every button. It talks to the ECU over FTCAN 2.0, so the buttons control ECU functions without using up any of the ECU's own inputs. The buttons are spaced wide enough to hit with racing gloves on, and the sealed housing is rated IP67/NEMA6 against water and dust.
Works with the full PowerFT ECU line: FT450, FT550, FT550LITE, FT600, FT700 and FT700PLUS.
| Supply voltage | 12–24 Vdc |
| Standby current | <50 mA |
| Communication | FTCAN 2.0 |
| CAN connectors | 1 Molex male, 1 Molex female |
| Button material | Silicone rubber with polyurethane hard coat |
| Mounting studs | #10-32 |
| Ingress rating | IP67 / NEMA6 |
| Dimensions | 4.98 x 2.70 x 0.82 in |
The SwitchPanel Mini is also offered in 4 and 5-button versions.
