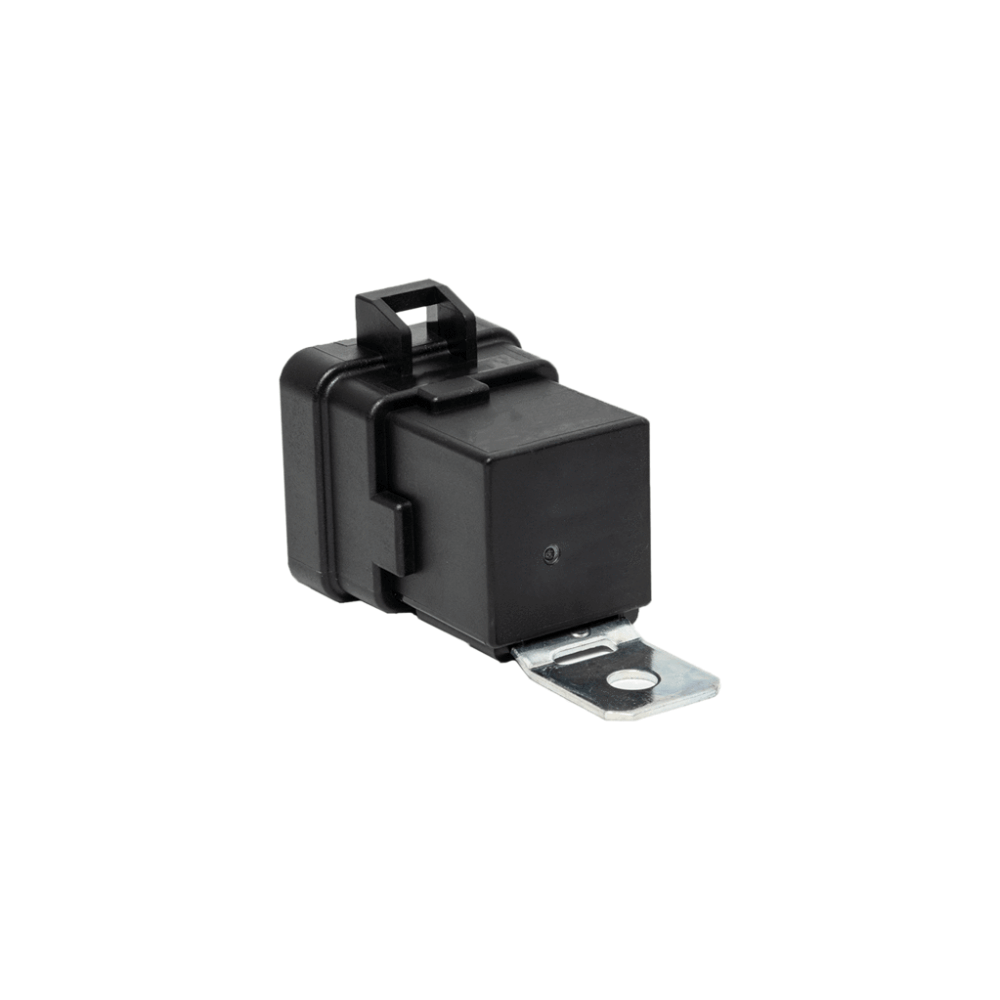

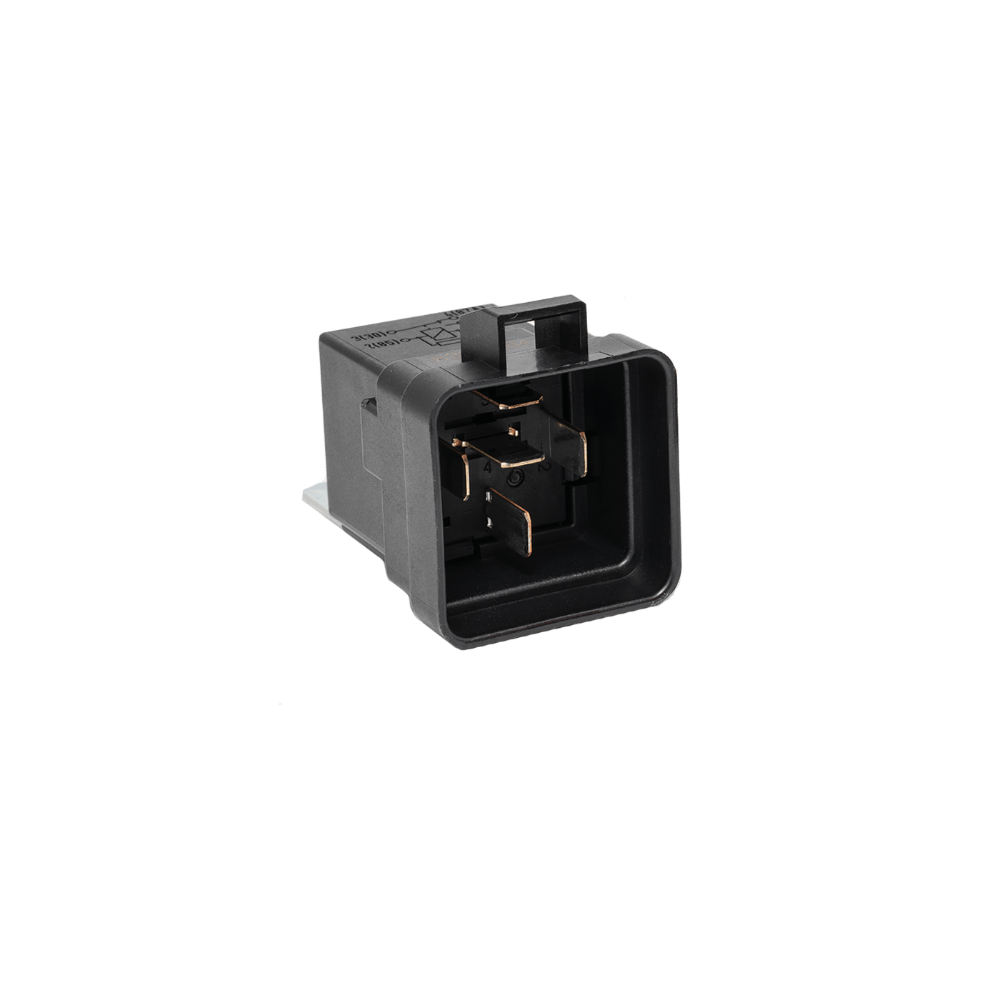

FuelTech Sealed Relay 40A
A sealed 40 A relay typically used to power the ECU, injectors and coils when building...
Guaranteed Fitment
Always the correct part
In-House Experts
We know our products
Added Value
Fast Support and Installation Help
Shipping
Wordwide Delivery
A sealed 40 A relay typically used to power the ECU, injectors and coils when building your own harness. It has both normally open and normally closed contacts. Use one relay per item being wired.
- Sealed housing
- 40 A normally open contact plus a normally closed contact
- Triggered by a FuelTech auxiliary output switching to ground
Specifications
| Pin | Function |
|---|---|
| 85 | Trigger (FT auxiliary output, ground-switched) |
| 86 | Switched 12V |
| 30 | Battery 12V (fuse required) |
| 87 | Output to load, normally open, 40 A |
| 87A | Normally closed contact |
