Which pressure ranges are available?

0-150 psi, 0-300 psi, 0-500 psi, 0-1500 psi and 0-3000 psi.

What output and supply voltage does it use?

It runs on a 5V supply and outputs 0.5-4.5V.

Pin A is ground, pin B is 5V and pin C is signal.

Do I need the mating plug kit?

Choose the w/ mating plug kit option if your harness does not already have the matching connector for the sensor.

FuelTech Pressure Sensor PRO

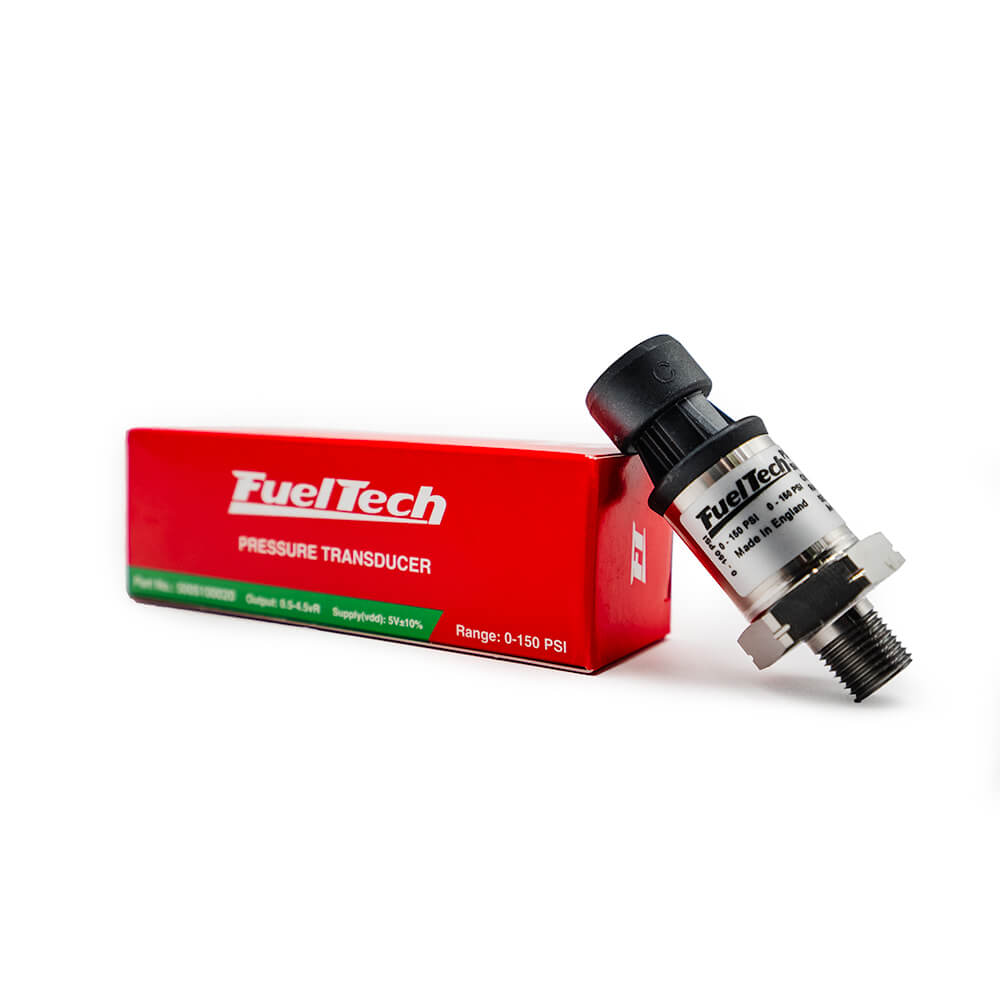

FuelTech Pressure Sensor PRO 0-150 psi version

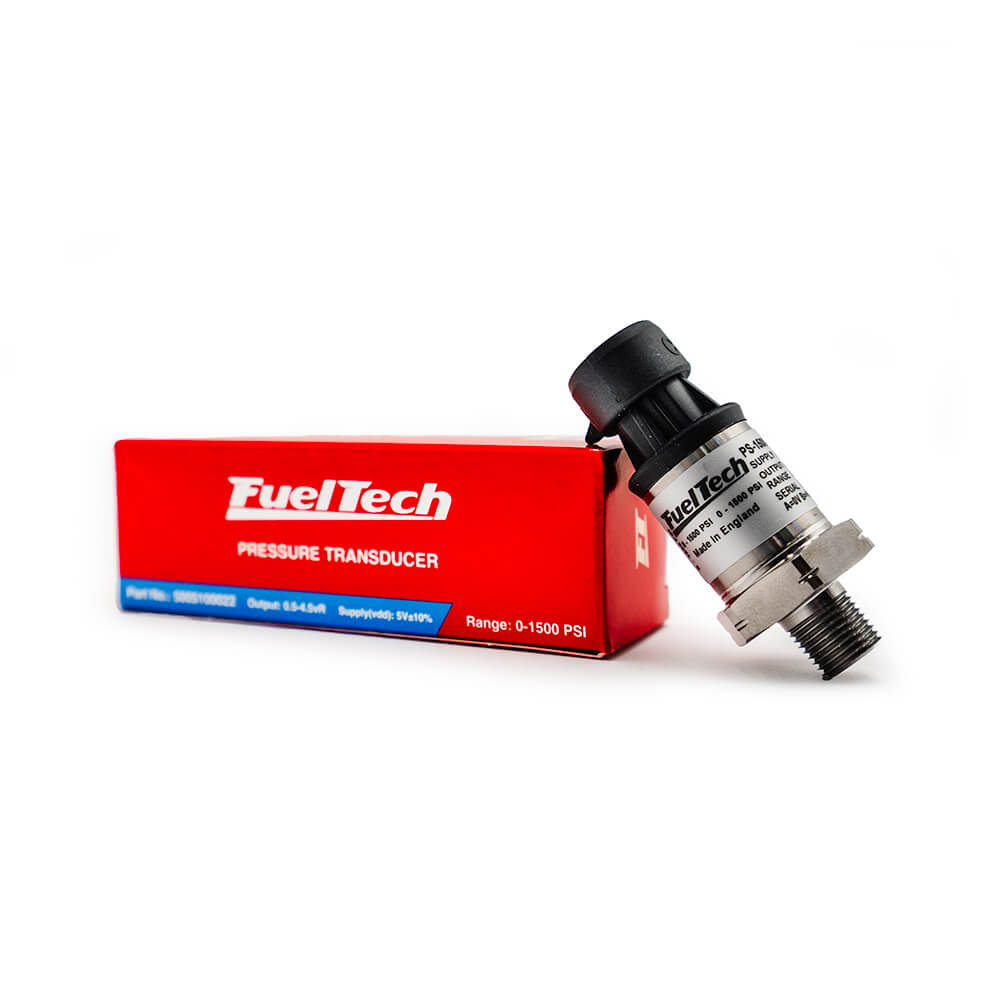

FuelTech Pressure Sensor PRO 0-1500 psi version

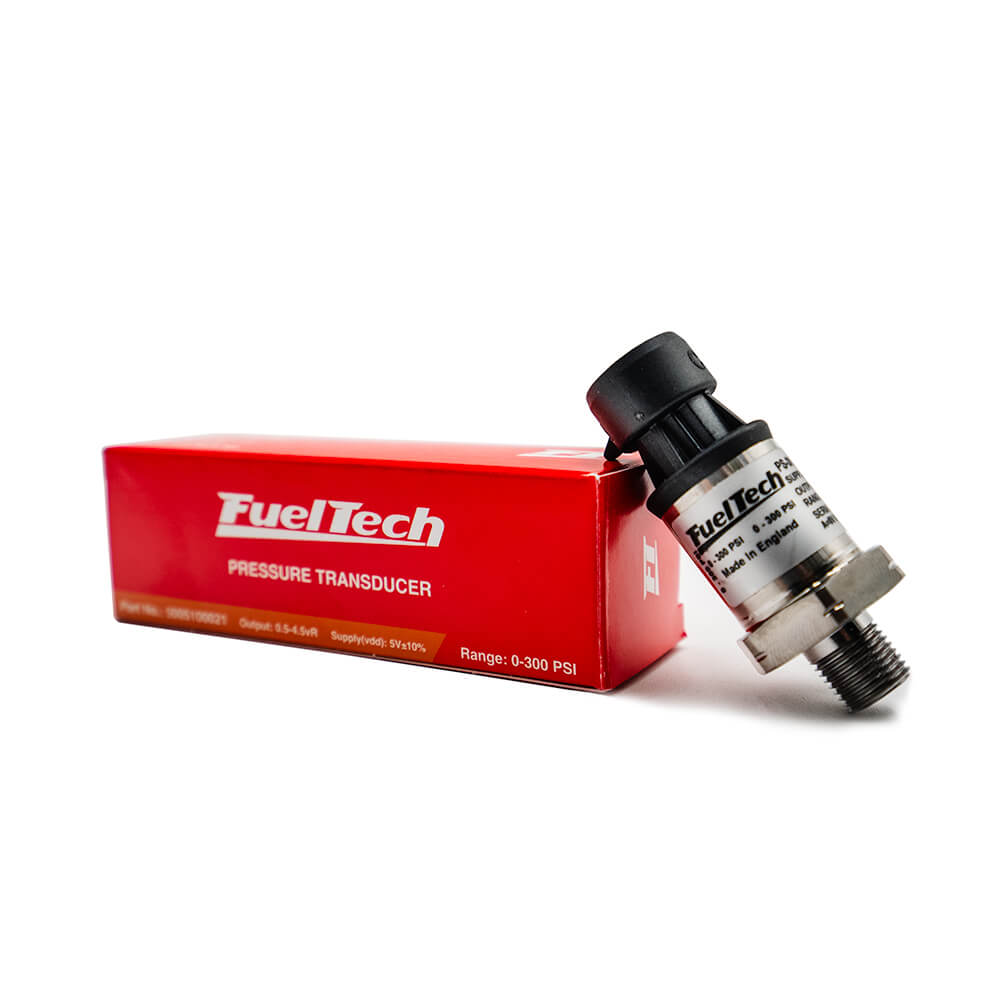

FuelTech Pressure Sensor PRO 0-300 psi version

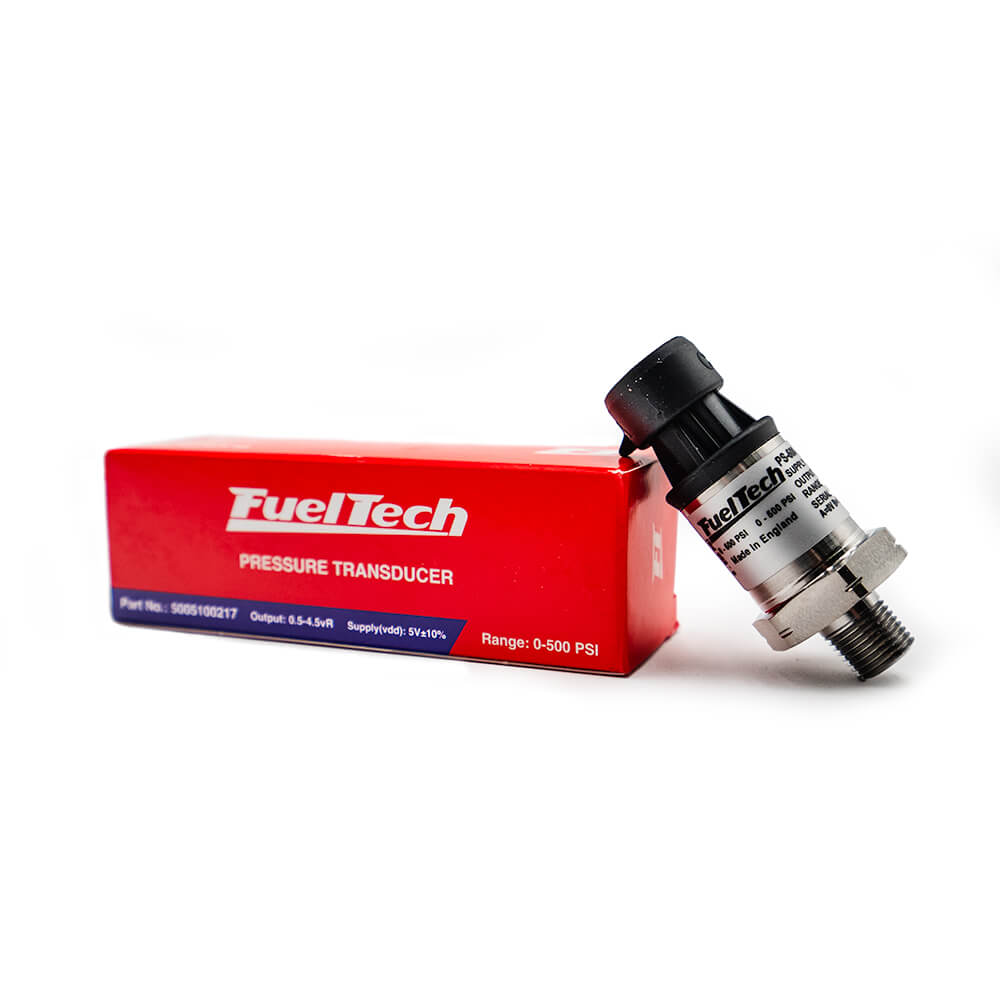

FuelTech Pressure Sensor PRO 0-500 psi version

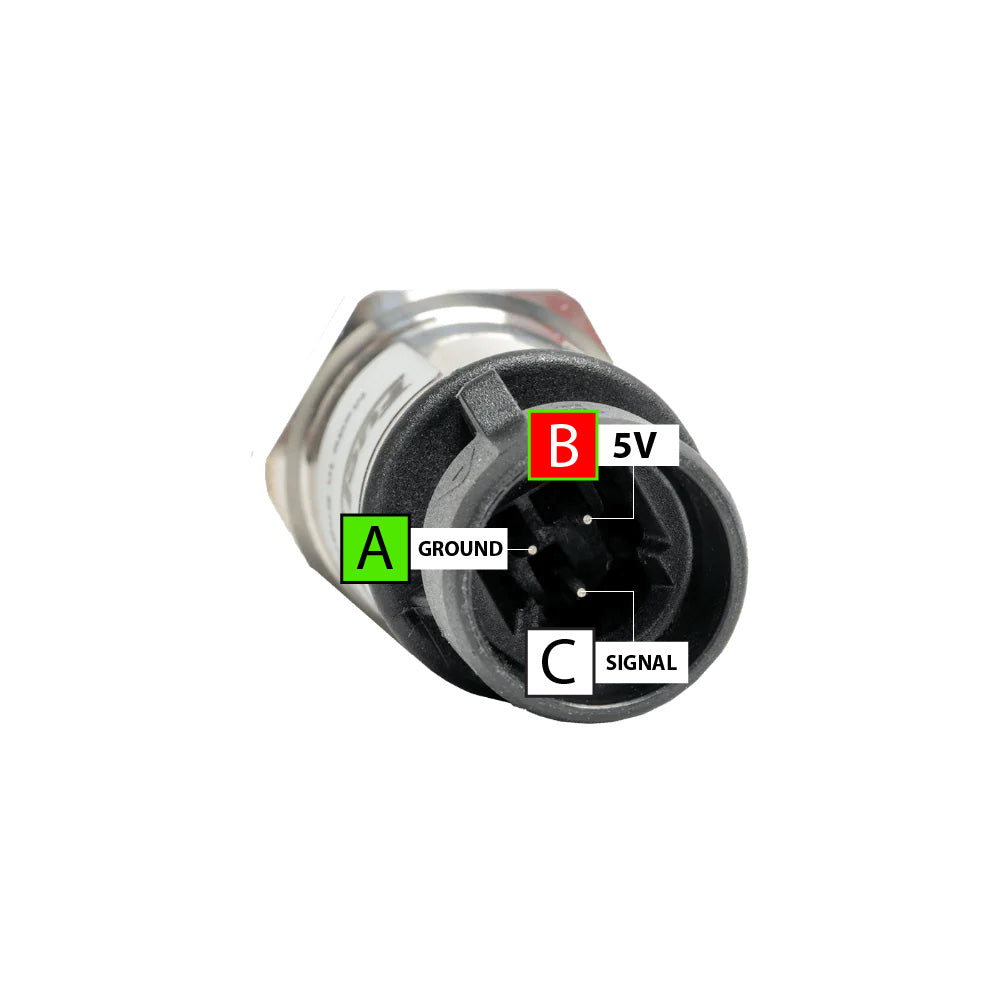

FuelTech Pressure Sensor PRO 3-pin connector pinout diagram

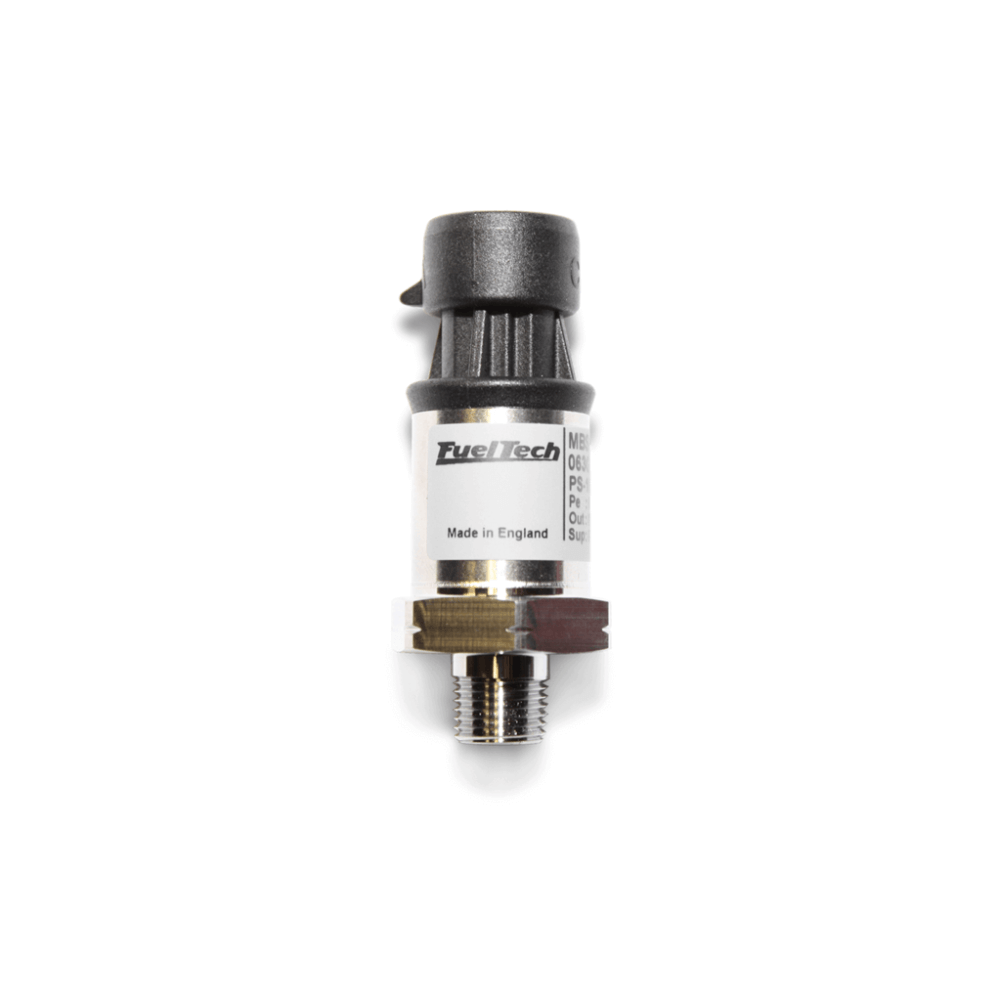

Load image into Gallery viewer, FuelTech Pressure Sensor PRO stainless pressure transducer

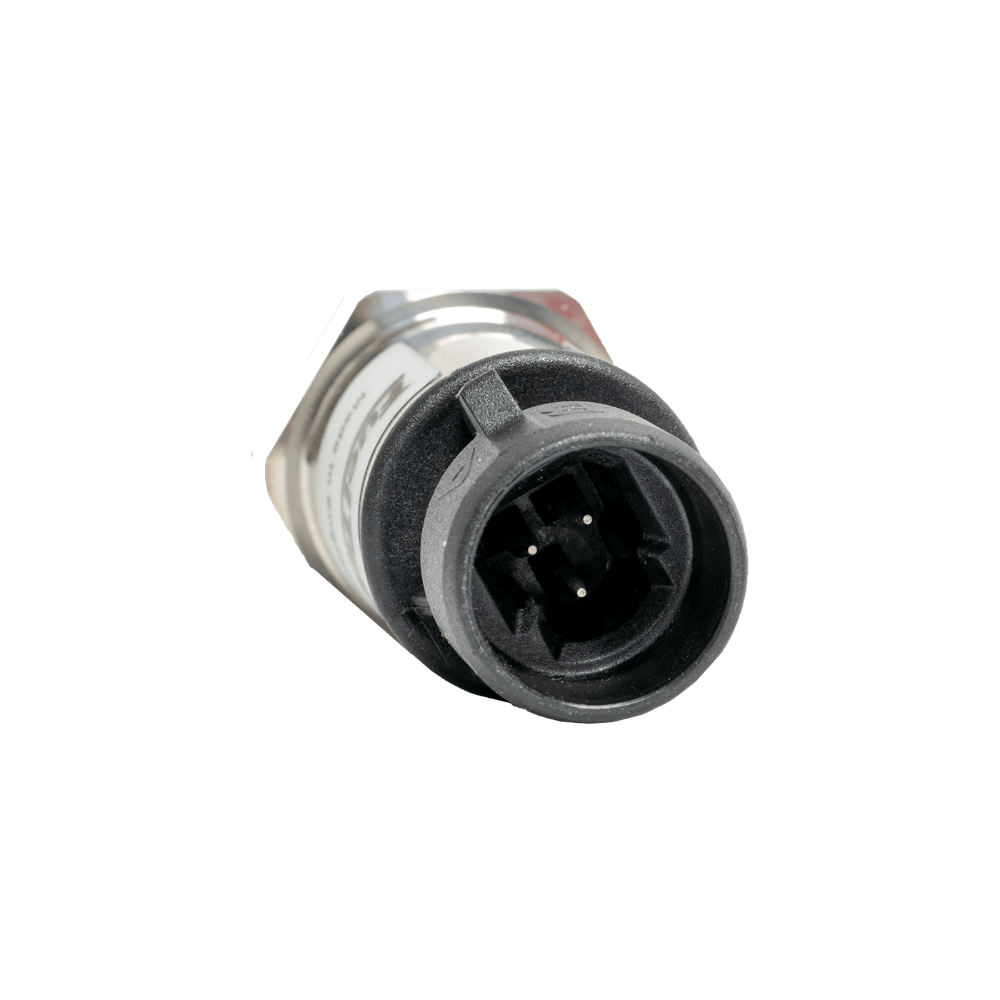

Load image into Gallery viewer, FuelTech Pressure Sensor PRO alternate angle

Load image into Gallery viewer, FuelTech Pressure Sensor PRO 0-150 psi version

Load image into Gallery viewer, FuelTech Pressure Sensor PRO 0-1500 psi version

Load image into Gallery viewer, FuelTech Pressure Sensor PRO 0-300 psi version

Load image into Gallery viewer, FuelTech Pressure Sensor PRO 0-500 psi version

The FuelTech Pressure Sensor PRO is a 3-wire analog transducer for logging fluid or air pressure...

FuelTech Pressure Sensor PRO

Brand: FuelTech

SKU: 5005100020

availability: In stock

Product Code: Pressure Sensors

$129.00

The FuelTech Pressure Sensor PRO is a 3-wire analog transducer for logging fluid or air pressure...

Range *

0-150 PSI

0-300 PSI

0-500 PSI

0-1500 PSI

0-3000 PSI

Options *

w/o mating plug kit

w/ mating plug kit

Quantity

- +

Subtotal: $129.00

Quantity must be 1 or more

I agree with the terms and conditions

283 customers are viewing this product

FuelTech Pressure Sensor PRO

0-150 PSI / w/o mating plug kit - $129.00

Have Questions?

+1888 641 5150

Ask an Experts

Guaranteed Fitment
Always the correct part

In-House Experts
We know our products

Added Value
Fast Support and Installation Help

Shipping
Wordwide Delivery

Description
Shipping + Returns

Description

The FuelTech Pressure Sensor PRO is a 3-wire analog transducer for logging fluid or air pressure on a FuelTech ECU or any system that reads a 0.5-4.5V signal. Pick the range that suits the job, from 0-150 psi for fuel or oil up to 0-3000 psi for high-pressure circuits.

Ranges: 0-150, 0-300, 0-500, 0-1500 or 0-3000 psi
Output: 0.5-4.5V
Supply: 5V
Thread: 1/8 in NPT
Available with or without the mating plug kit

Specifications

Pin	Function
A	Ground
B	5V
C	Signal
