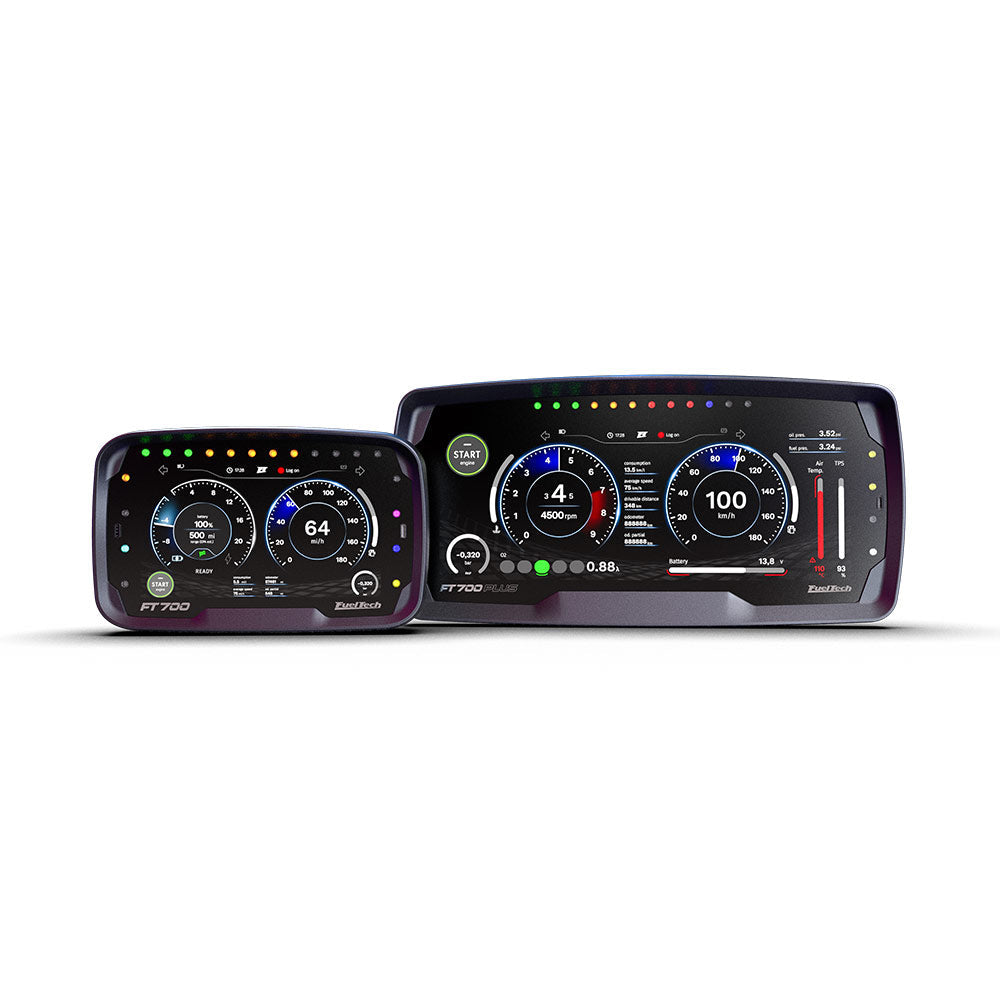

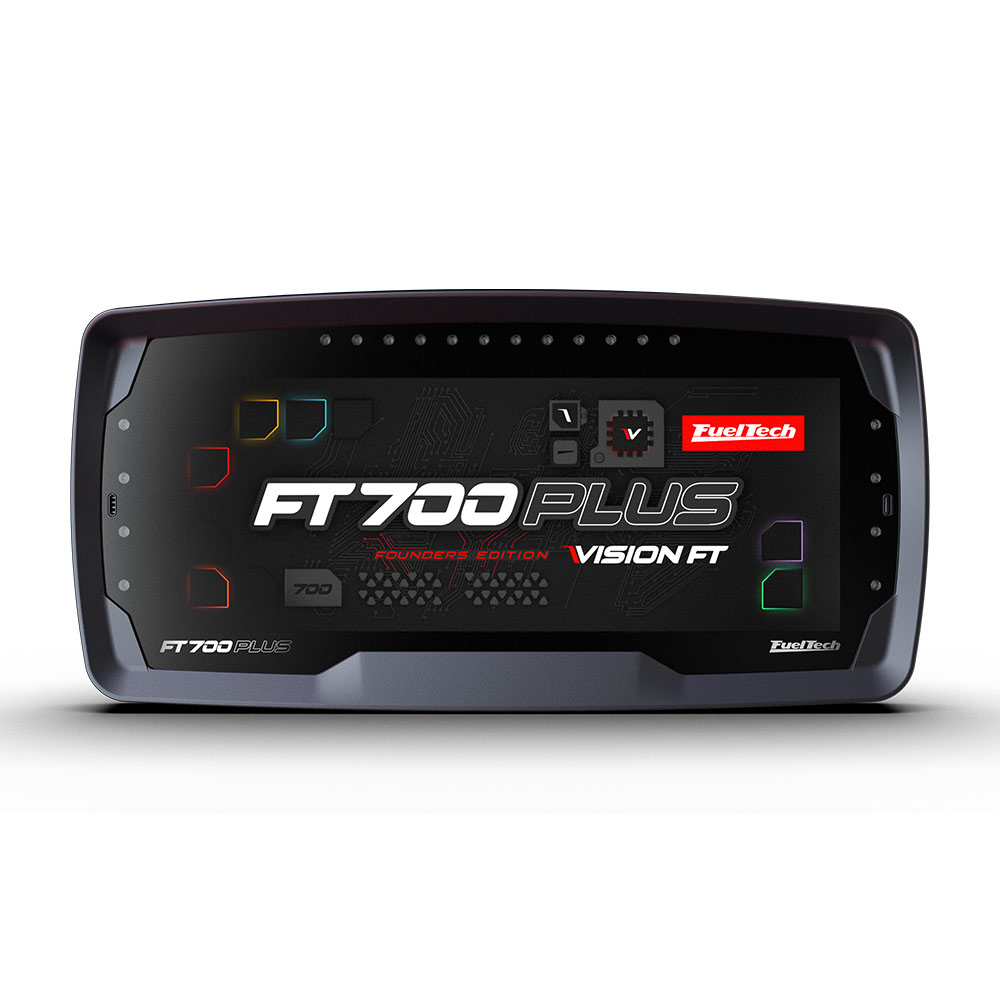

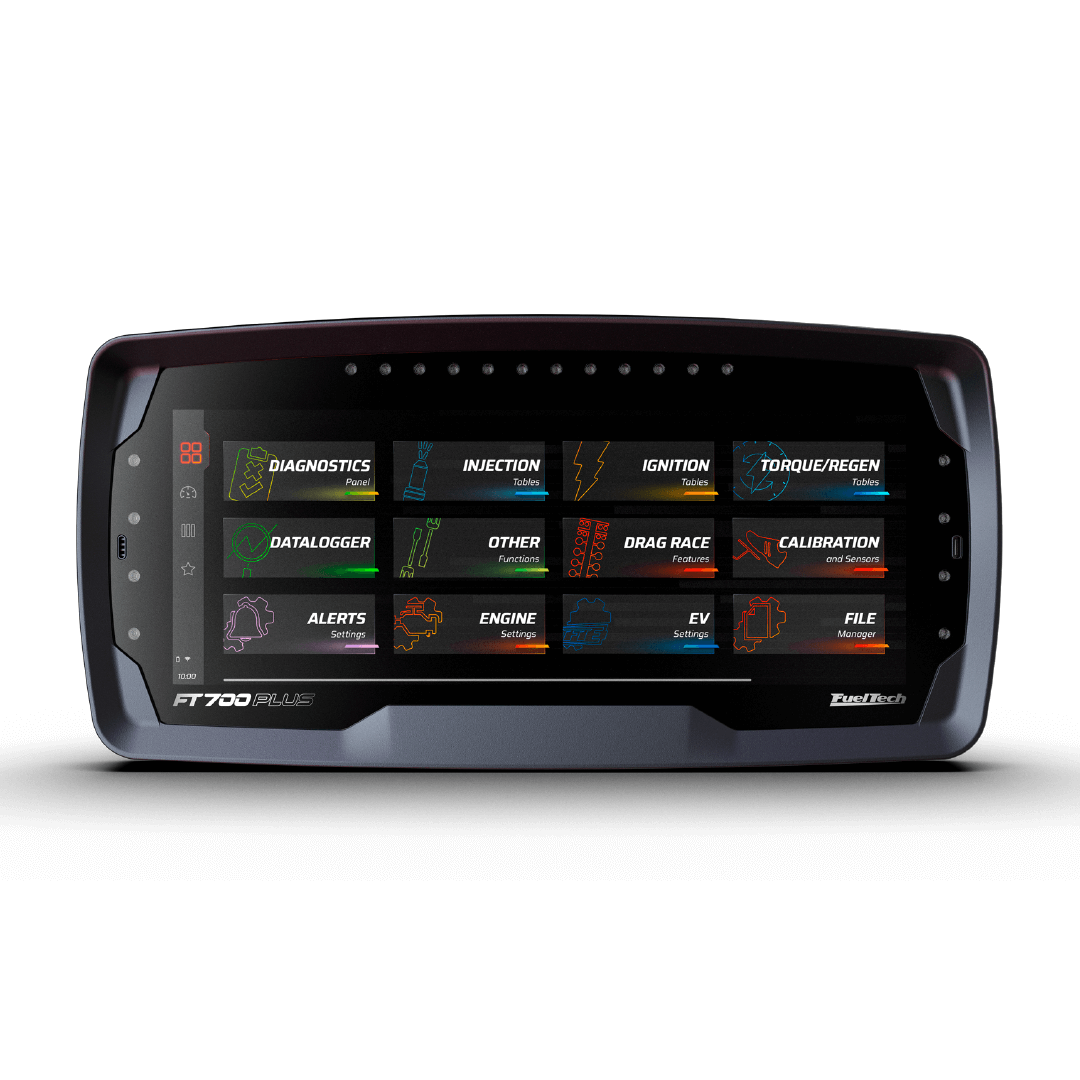

The FT700 and FT700PLUS are FuelTech's Vision FT generation of engine management: a standalone ECU, digital dash and datalogger in one touchscreen unit. They add wireless tuning, a built-in GPS and accelerometer, and season-length data storage, while keeping the same main connectors as the FT600 so existing FT600 harnesses carry over.

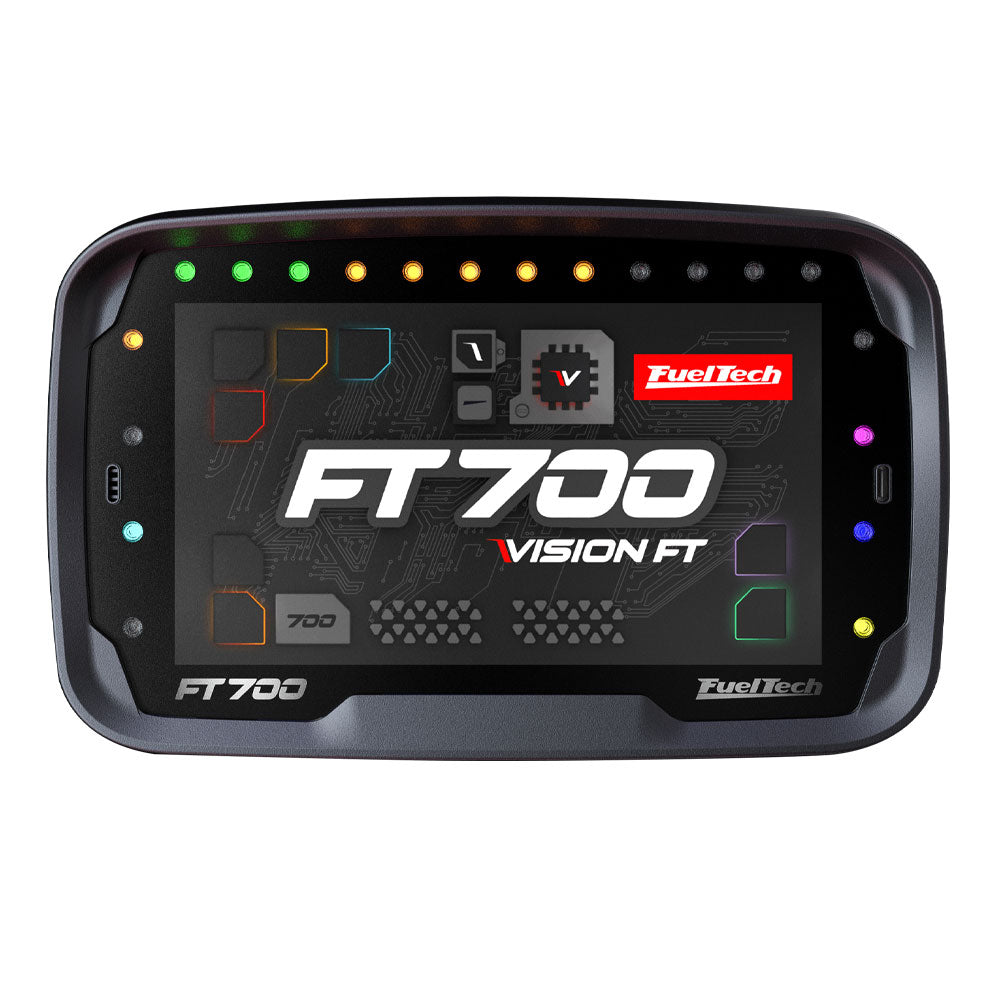

- LCD multi-touchscreen with anti-glare finish and adjustable brightness
- 20 configurable LEDs: 12 across the top as an RPM progression bar, 4 alert LEDs on each side

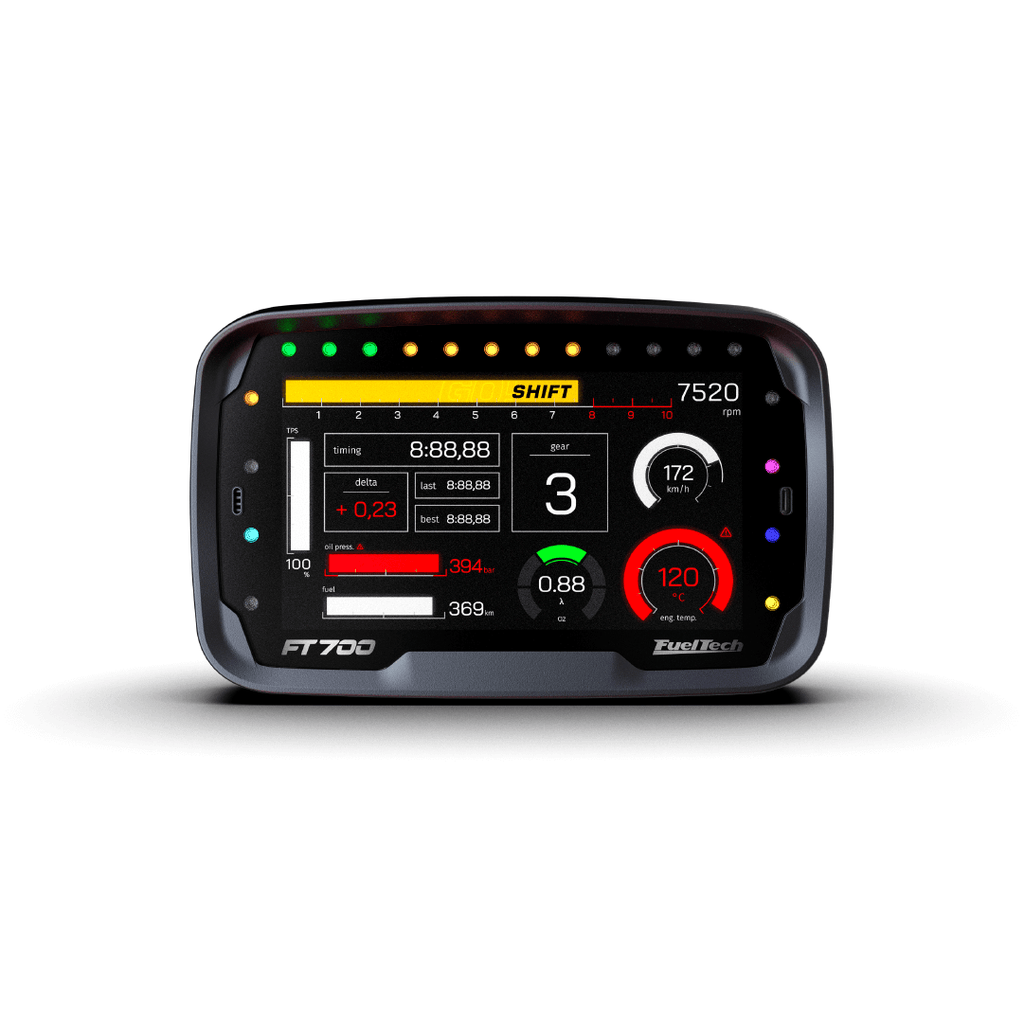

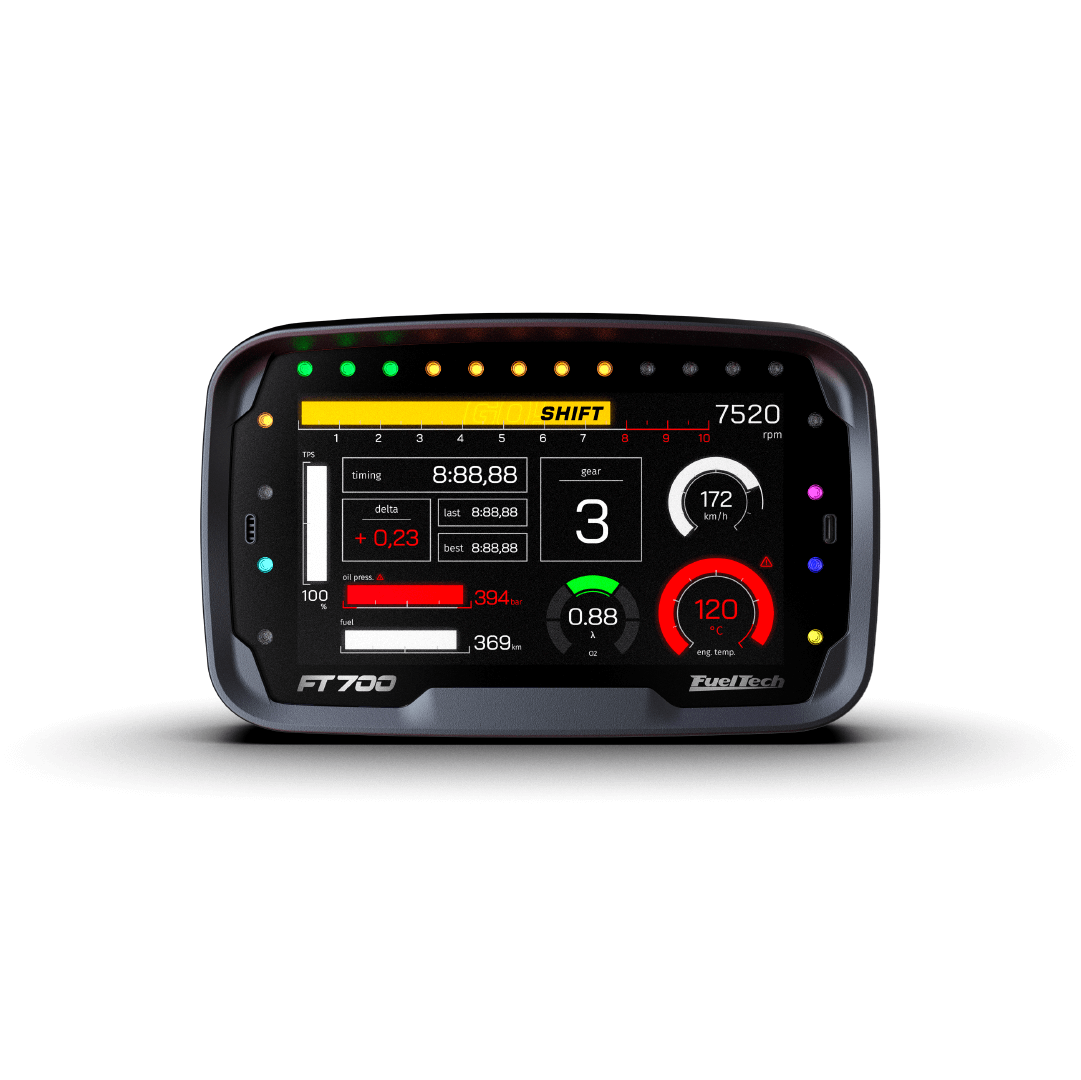

- Fully customizable digital gauge cluster: choose each gauge's function, style, size and position
- Encrypted Wi-Fi and Bluetooth plus USB; up to 3 devices connected at once
- Built-in GPS and accelerometer
- 64 GB internal storage for maps, logs, telemetry, images and audio; expandable through the USB-C ports
- Datalogger records up to 1024 channels at up to 1 kHz, depending on the selected rate
- Real-time tuning changes from the screen, phone, tablet or laptop

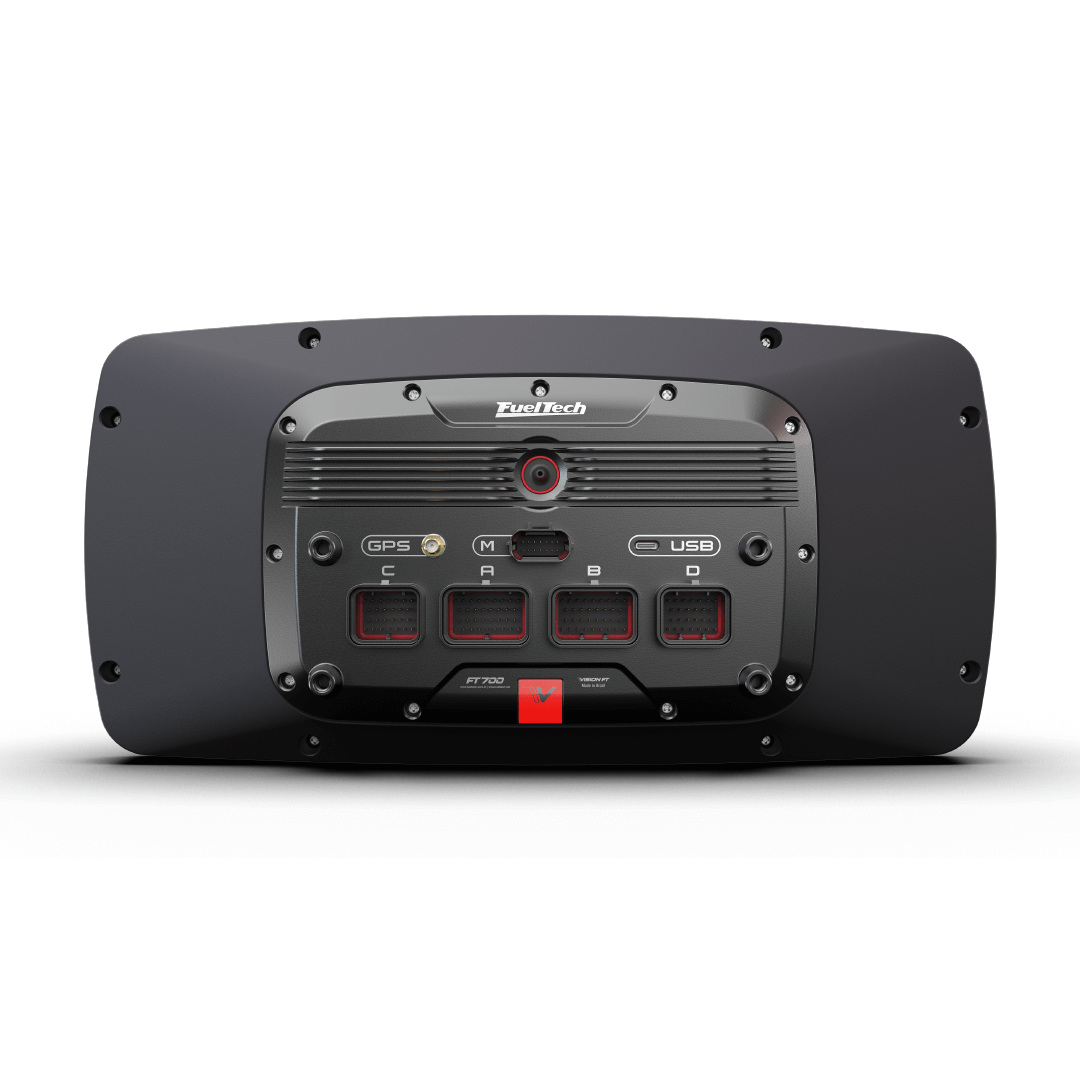

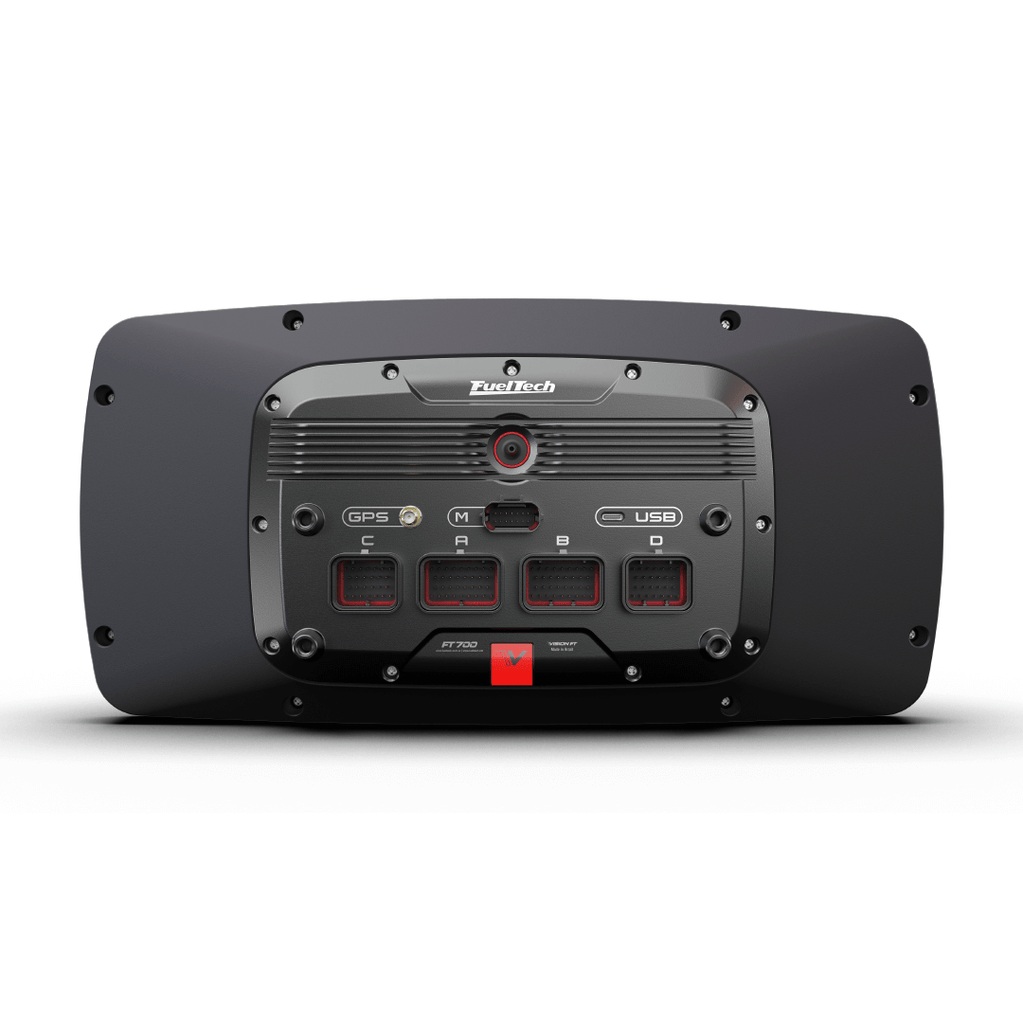

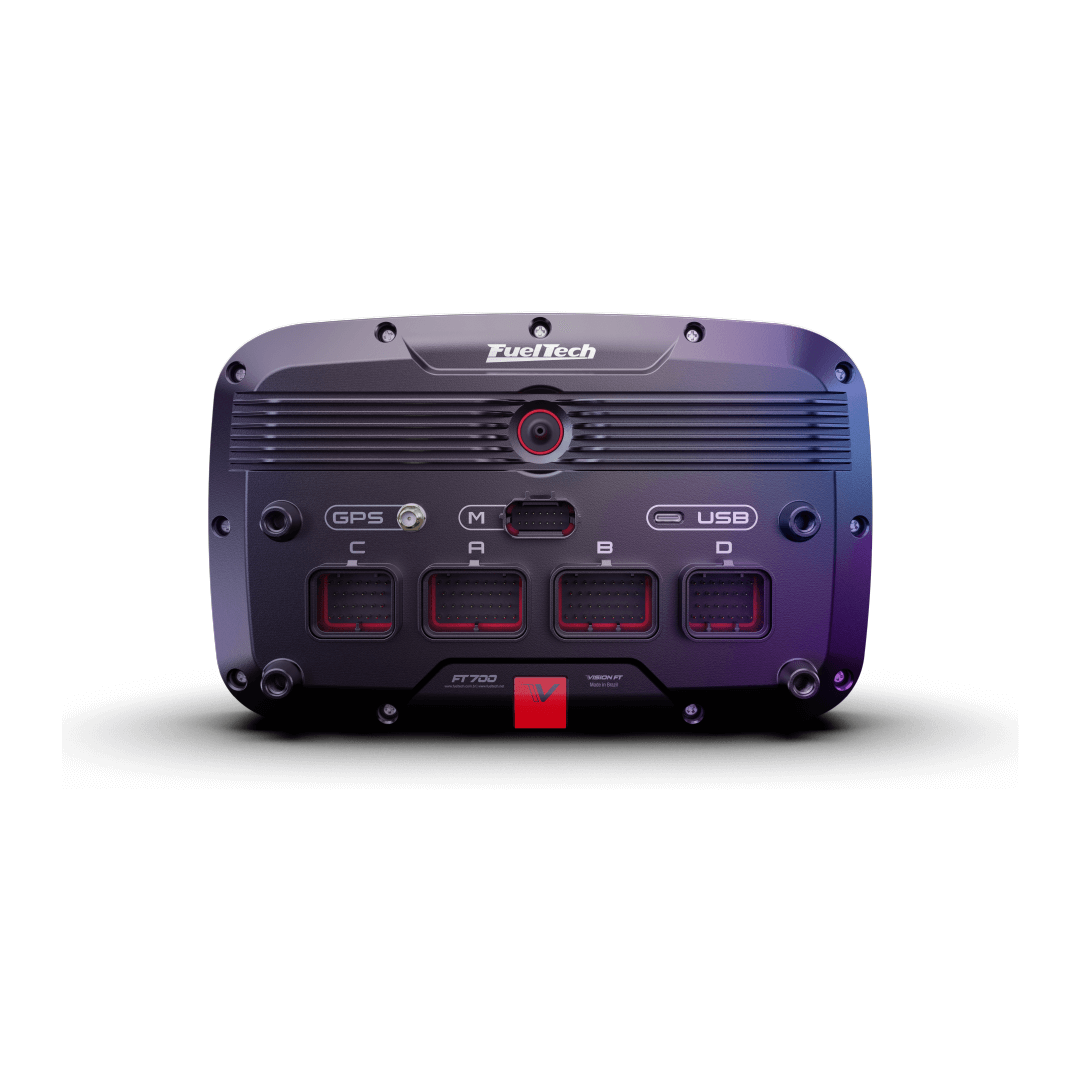

- Dual 34-pin SuperSeal connectors shared with the FT600, plus two optional I/O expansion connectors and a dedicated audio/video connector
Installation notes

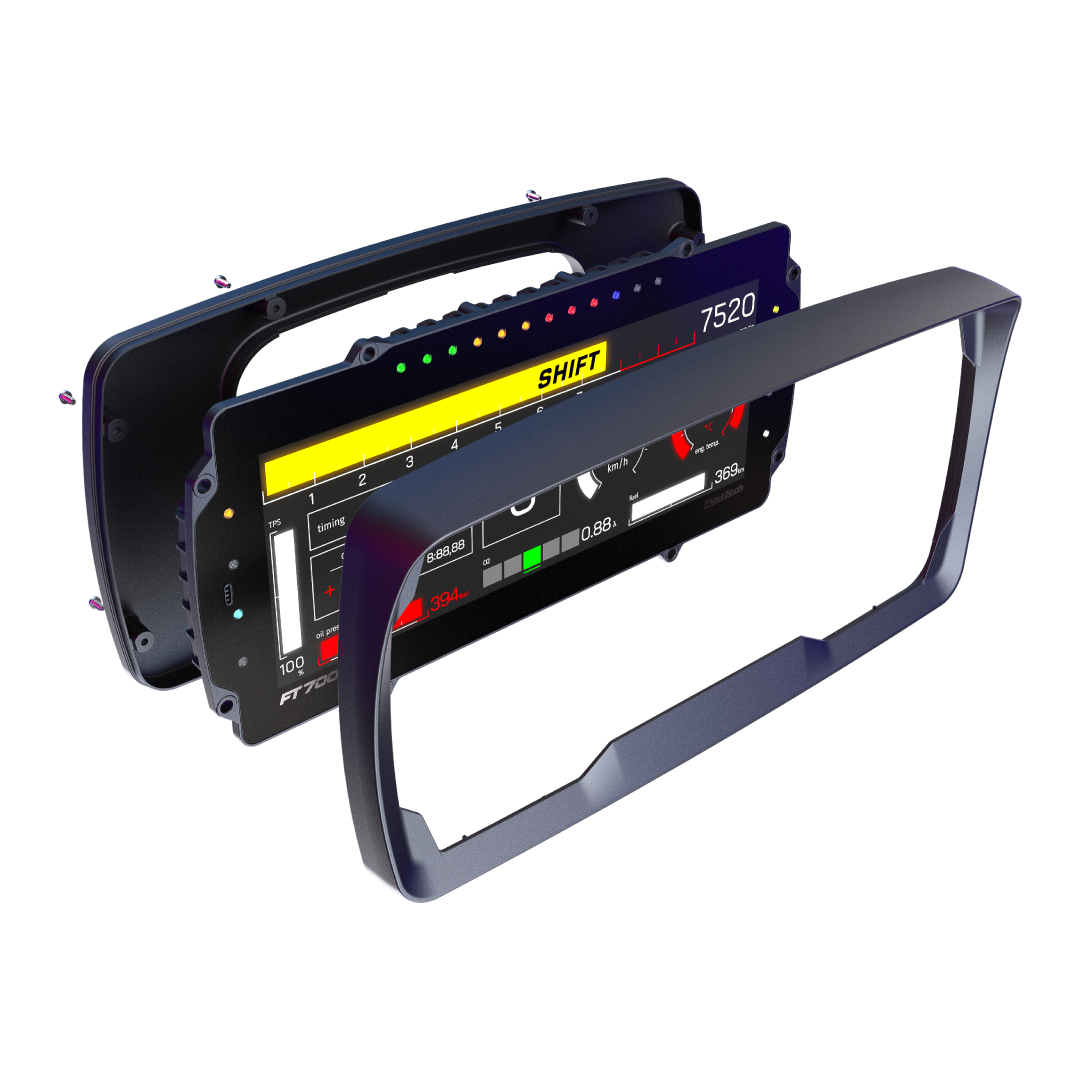

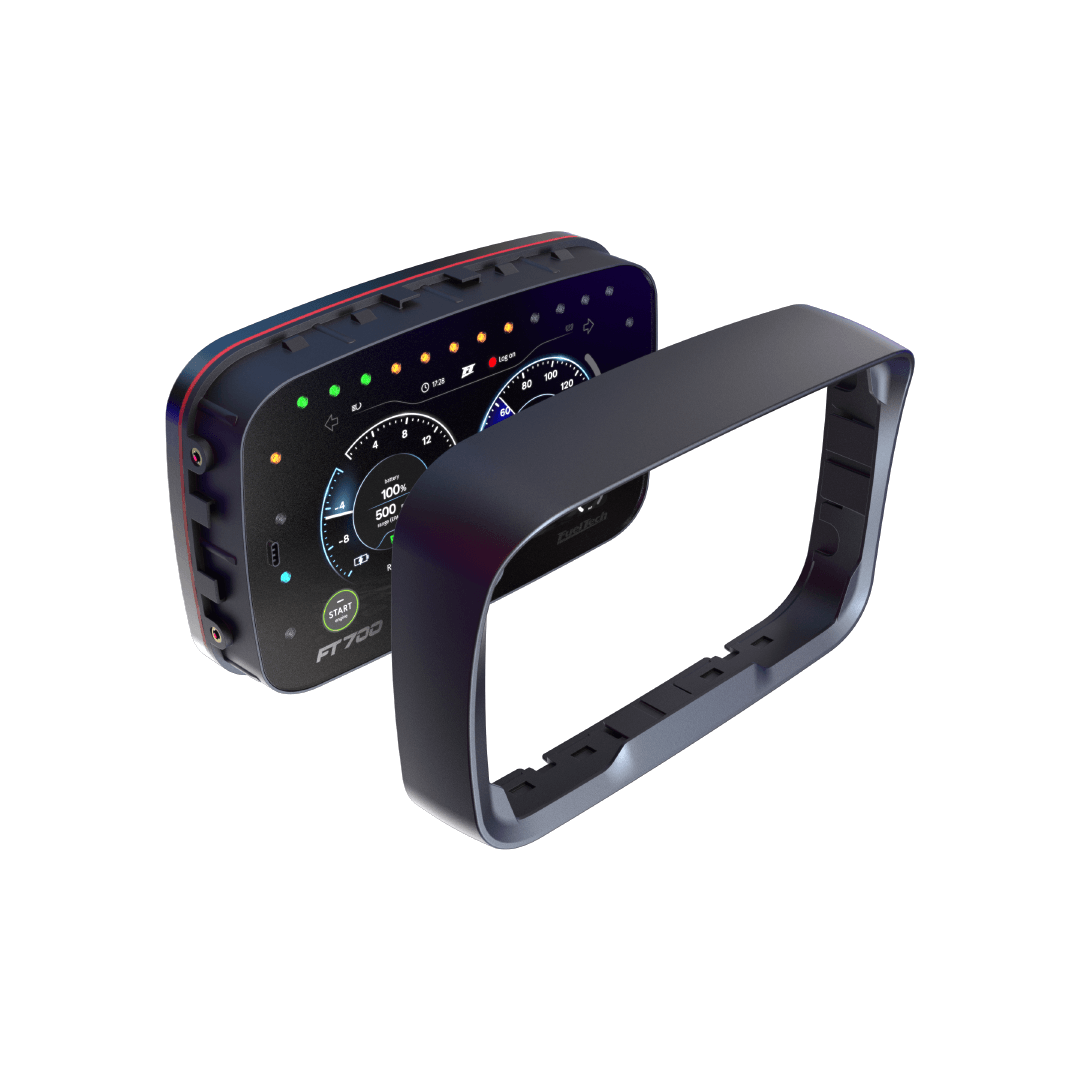

The modular enclosure has a detachable front fairing and standardized front and rear mounting, so the unit can be flush-mounted in place of the factory instrument panel or mounted as a second dash. Coming from an FT600, unplug the FT600 and plug in the FT700 - the main harness does not need to be replaced.
Harness options
- w/o harness: ECU only
- A & B or C & D unterminated harnesses in 10 ft or 20 ft lengths
- Full A-B-C & D unterminated harness sets in 10 ft or 20 ft
- Optional multimedia M harness for the audio/video connector
Software
- Tuned with FuelTech Vision software; app support for Windows, Mac, Android and iOS
- PC minimum: Intel Core i5 (10th gen) or better, Windows 10 64-bit or newer, 8 GB RAM (16 GB recommended), 500 MB disk, Full HD display
- USB-C (PD or Thunderbolt) powers and communicates with the FT700; a USB 2.0 port communicates only, with 12V supplied through the rear connectors
- Internet connection required on first launch
FuelTech FT700 electrical diagram (PDF)
FuelTech FT700 quick install guide
FuelTech FT700 CAD files (ZIP)
FuelTech FT700PLUS CAD files (ZIP)
