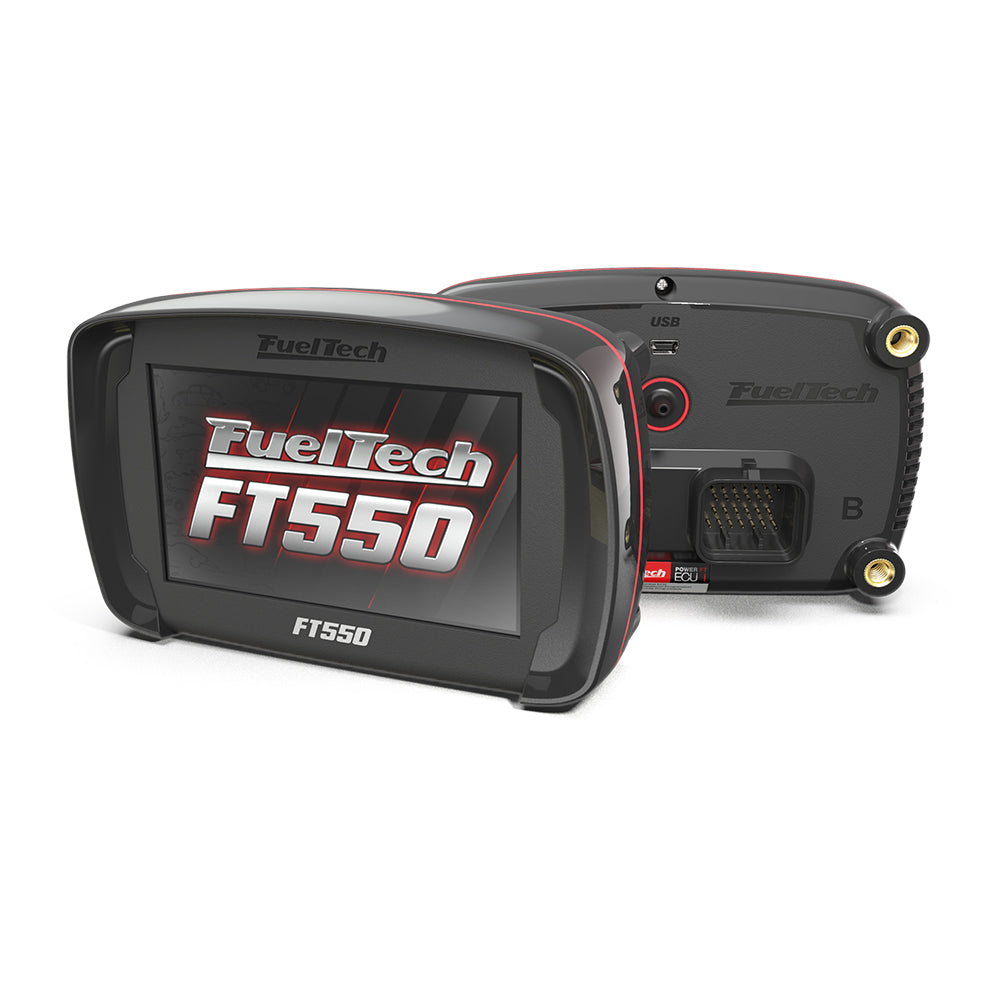

FuelTech FT550 EFI System ECU

The FT550 combines fuel injection control, a touchscreen dash, data acquisition and power management in one...

FuelTech FT550 EFI System ECU

FuelTech
3010005496
In stock
ECUs
$1,899.00
The FT550 combines fuel injection control, a touchscreen dash, data acquisition and power management in one...
$1,899.00

customers are viewing this product

Guaranteed Fitment
Always the correct part

In-House Experts
We know our products

Added Value
Fast Support and Installation Help

Shipping
Wordwide Delivery

The FT550 combines fuel injection control, a touchscreen dash, data acquisition and power management in one unit. It handles engines up to 12 cylinders or 4 rotors with 14 programmable inputs and 24 outputs, and adds drive-by-wire, a GearController with strain gauge shift cut, and built-in motion sensors on top of the FT450 feature set.

  • Up to 12 cylinders or 4 rotors
  • 14 programmable inputs, 24 outputs

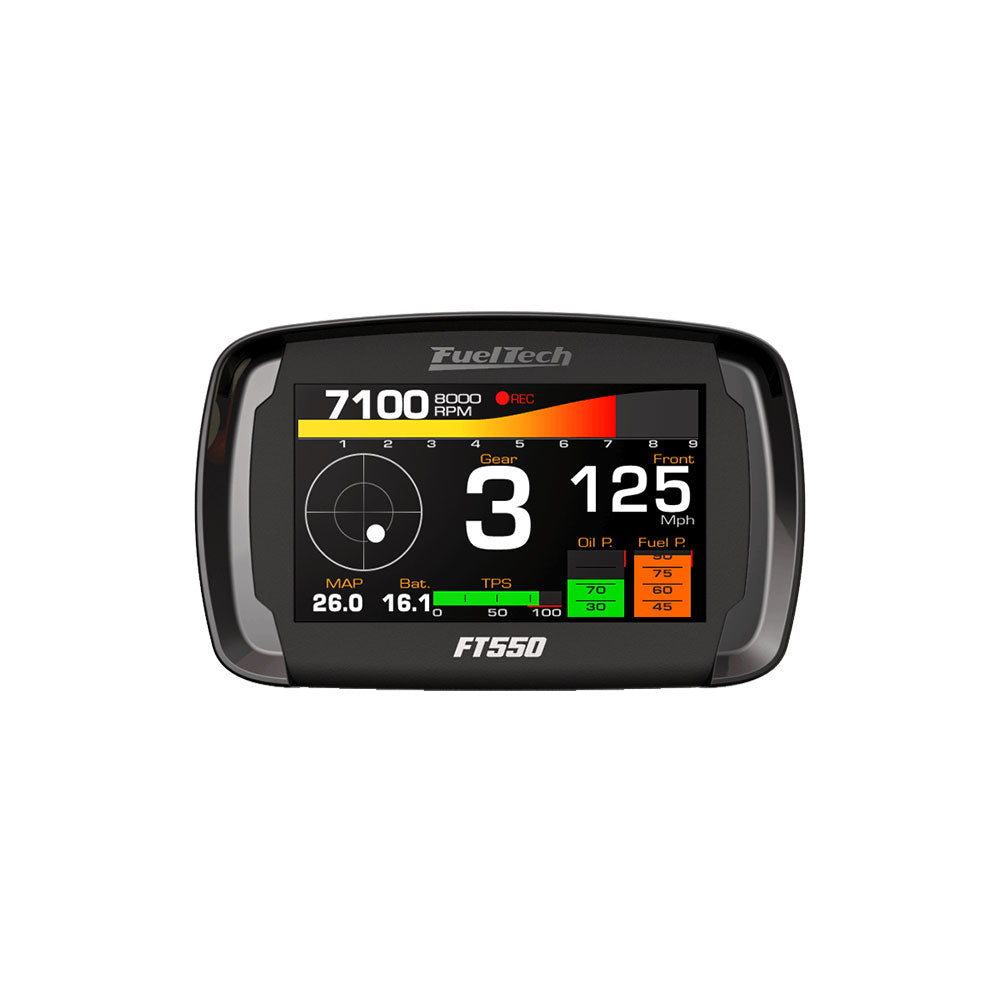

  • Touchscreen dash with 4 programmable screens and custom splash screen
  • Electronic throttle control
  • Integrated GearController with strain gauge shifter sensor for shift cuts
  • Built-in accelerometer (G-meter), gyroscope and inclinometer gauge
  • All FT450 functions: sequential injection and ignition, O2 closed loop, active traction control, built-in boost controller, internal datalogger, progressive and PRO-Nitrous control, odometers and drag racing functions
  • ABS housing, IP67 rated for marine and off-road use

Harness options

  • w/o harness or w/ connector kit
  • w/ 10 ft or 20 ft unterminated harnesses
  • w/ LS550 V8 complete harness or PRO550 complete harness
  • w/ 4 cylinder or 6 cylinder A & B complete harnesses
  • w/ 2019-2024 Yamaha 1800 adapter harness
  • w/ Sea Doo 300 plug-and-play harness

Who it's for

Builds that need more channels than the FT450 offers, or need electronic throttle and gear-shift control, including car, motorcycle and PWC applications.

FuelTech FT450 / FT550 / FT550LITE / FT600 manual (PDF)

FuelTech FTManager software (ZIP)

FuelTech FT550 CAD file
