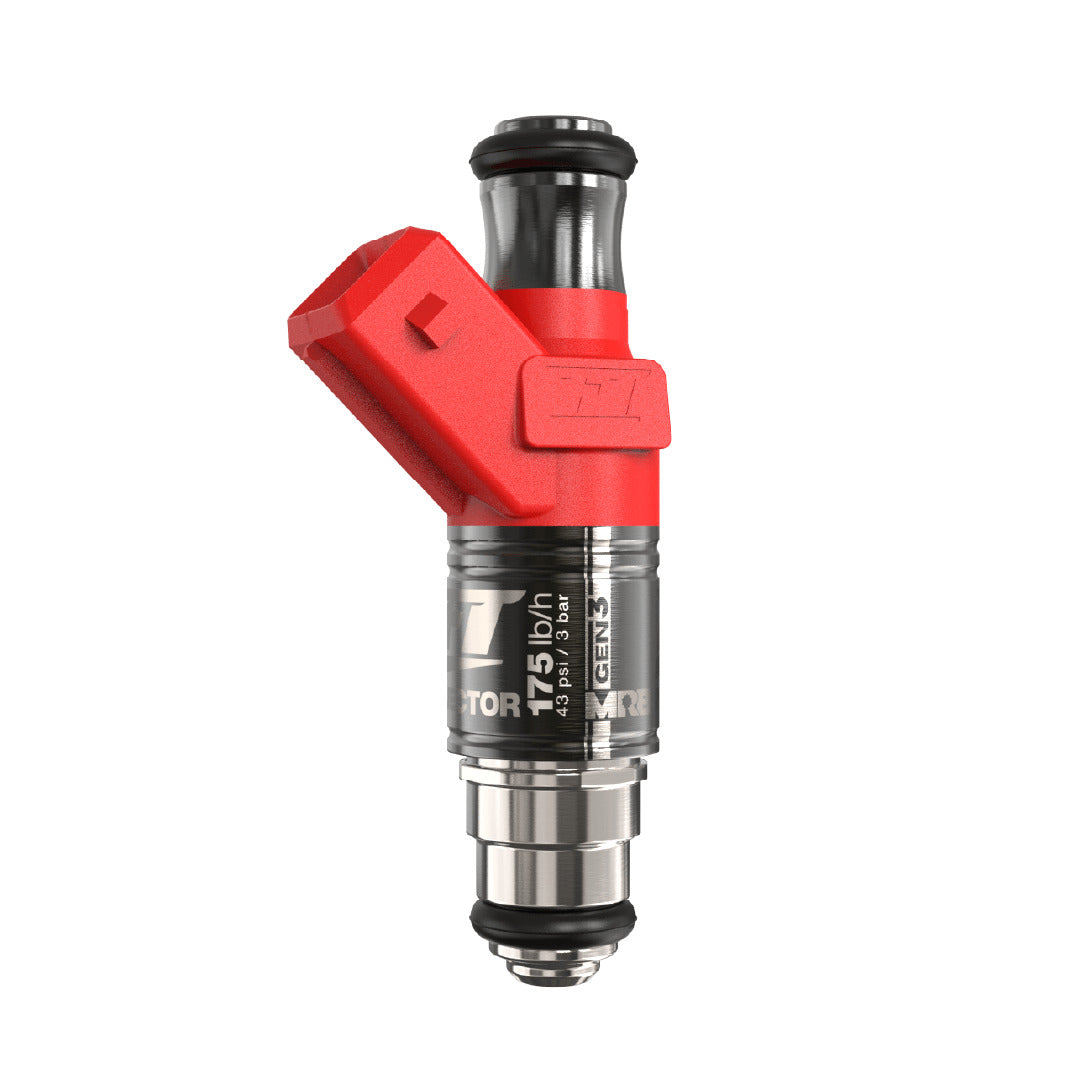

FuelTech FT Injector 175 lb/h GEN 3
The FT Injector 175 lb/h GEN 3 is a high impedance injector with an EV1 connector...
Guaranteed Fitment
Always the correct part
In-House Experts
We know our products
Added Value
Fast Support and Installation Help
Shipping
Wordwide Delivery
The FT Injector 175 lb/h GEN 3 is a high impedance injector with an EV1 connector that runs directly from any ECU, with no peak and hold driver. The third generation adds a new internal coil, needle geometry and spray pattern and drops the internal screen, giving shorter dead time and finer control at idle and low RPM.
- 175 lb/h flow rating
- High impedance, coil resistance 5.7-6.3 ohms - no peak and hold driver
- EV1 connector with silver plated terminals
- IP67 / NEMA6 ingress protection
- GEN 3: optimized coil, new needle geometry, next-generation spray pattern, no internal filter/screen
- Shorter dead time, better idle precision and stability across the operating range
- Each injector flow tested and calibrated for cylinder-to-cylinder accuracy
- Compatible with gasoline, ethanol, alcohol, nitromethane, nitropropane, MTBE and ETBE
Specifications
| Overall height | 72.5 mm (2.85 in) |
| Overall width | 18 mm (0.71 in) |
| O-ring diameter | 14.6 mm (0.57 in) |
| Tip | 4.1 mm (0.16 in) |
| Overall diameter | 5.9 mm (0.23 in) |
| Coil resistance | 5.7-6.3 ohms |
| Ingress protection | IP67 / NEMA6 |
| Warranty | 90 days |
What's included
One FT Injector and one manual.
