This kit makes a FuelTech Dual Power Driver (DPD) install cleaner and easier to service by putting unpluggable DTP and DTM connectors between the DPD, the electronic wastegate (eGate) and the ECU. Each connector is supplied as a matched pair, so every joint can be separated without cutting wires.

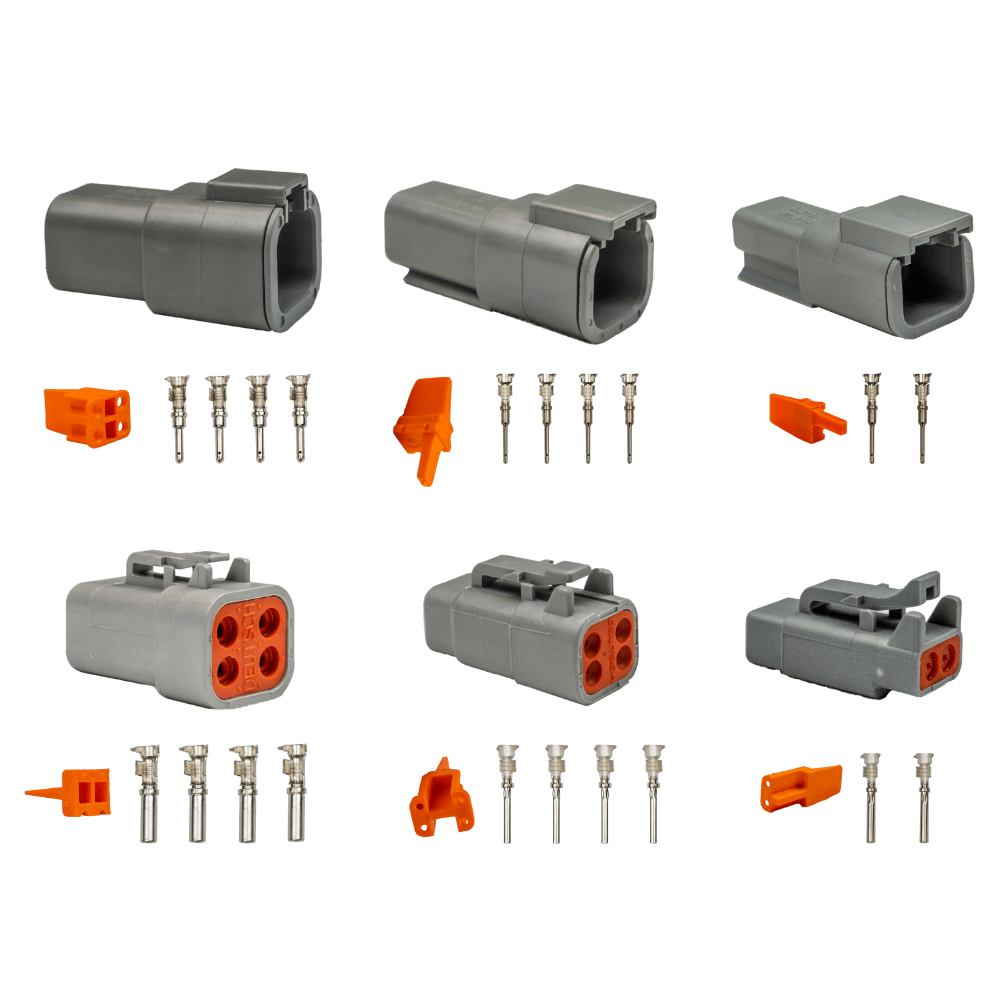

- 1x DTP 4-way connector kit, both sides
- 1x DTM 4-way connector kit, both sides
- 1x DTM 2-way connector kit, both sides
- Lets the DPD, eGate and ECU wiring be disconnected for service
Installation notes
FuelTech's recommended pinout:
| Connector | Pin | Wire |
|---|---|---|
| DTP 4-pin female (DPD side) | 1 | Large red wire from DPD |
| DTP 4-pin female (DPD side) | 2 | Large black wire from DPD |
| DTP 4-pin female (DPD side) | 3 | Large blue wire from DPD |
| DTP 4-pin female (DPD side) | 4 | Large white wire from DPD |
| DTP 4-pin male | 1 | 12V from fuse (40A max) |
| DTP 4-pin male | 2 | Battery negative |
| DTP 4-pin male | 3 | eGate large red wire (motor +) |
| DTP 4-pin male | 4 | eGate large white wire (motor -) |
| DTM 2-pin female (DPD side) | 1 | Small red wire from DPD |
| DTM 2-pin female (DPD side) | 2 | Small white wire from DPD |
| DTM 2-pin male | 1 | Odd-numbered yellow ECU output (1, 3, 5 or 7) |
| DTM 2-pin male | 2 | Even-numbered yellow ECU output (2, 4, 6 or 8) |
| DTM 4-pin female (eGate side) | 1 | Small red wire from eGate (5V+) |
| DTM 4-pin female (eGate side) | 2 | Small black wire from eGate (sensor ground) |
| DTM 4-pin female (eGate side) | 3 | Small white wire from eGate (position signal) |
| DTM 4-pin female (eGate side) | 4 | Small orange/yellow wire from eGate (temperature signal) |
| DTM 4-pin male | 1 | Green/red stripe from ECU (5V+) |
| DTM 4-pin male | 2 | Green/black stripe from ECU (sensor ground) |
| DTM 4-pin male | 3 | Any free white ECU input (position signal) |
| DTM 4-pin male | 4 | Any free white ECU input (temperature signal) |
The small blue wire in the eGate multi-core cable is not used.
