How do I identify my bell housing J-code?

It is stamped into the casting of your original Toyota A340 automatic bell housing. A J3 plate can be requested after ordering at the same price.

Can I use the front mount shifter in an SC300?

No. The front mount sits too far forward in this chassis. Use the rear mount shifter.

Which slave cylinder does this kit use?

The T56 99 Camaro slave cylinder, installed fully compressed against the pressure plate fingers with no preload.

Is a driveshaft included?

No. Driveshafts are ordered separately. Steel and aluminum are both built on 3 inch tube, and carbon is also offered.

What do I need to supply myself?

The bell housing from an automatic 2JZ in J1, J2 or J3, and on the base kit the GM T56 slave cylinder.

What is included in the base kit?

J1/J2 adapter plate, flywheel, transmission crossmember with mount, pilot bearing, bearing rings and hardware.

Lexus SC300 CD009 Transmission Adapter Kit | ASE

Name: 2JZGTE 2JZ 1JZ 2JZGE to SC300 CD009 Transmission Adapter | ASE
Brand: Autosports engineering
SKU: 11560-1
Price: 1349.99 USD
Availability: InStock

Description
Shipping + Returns

Description

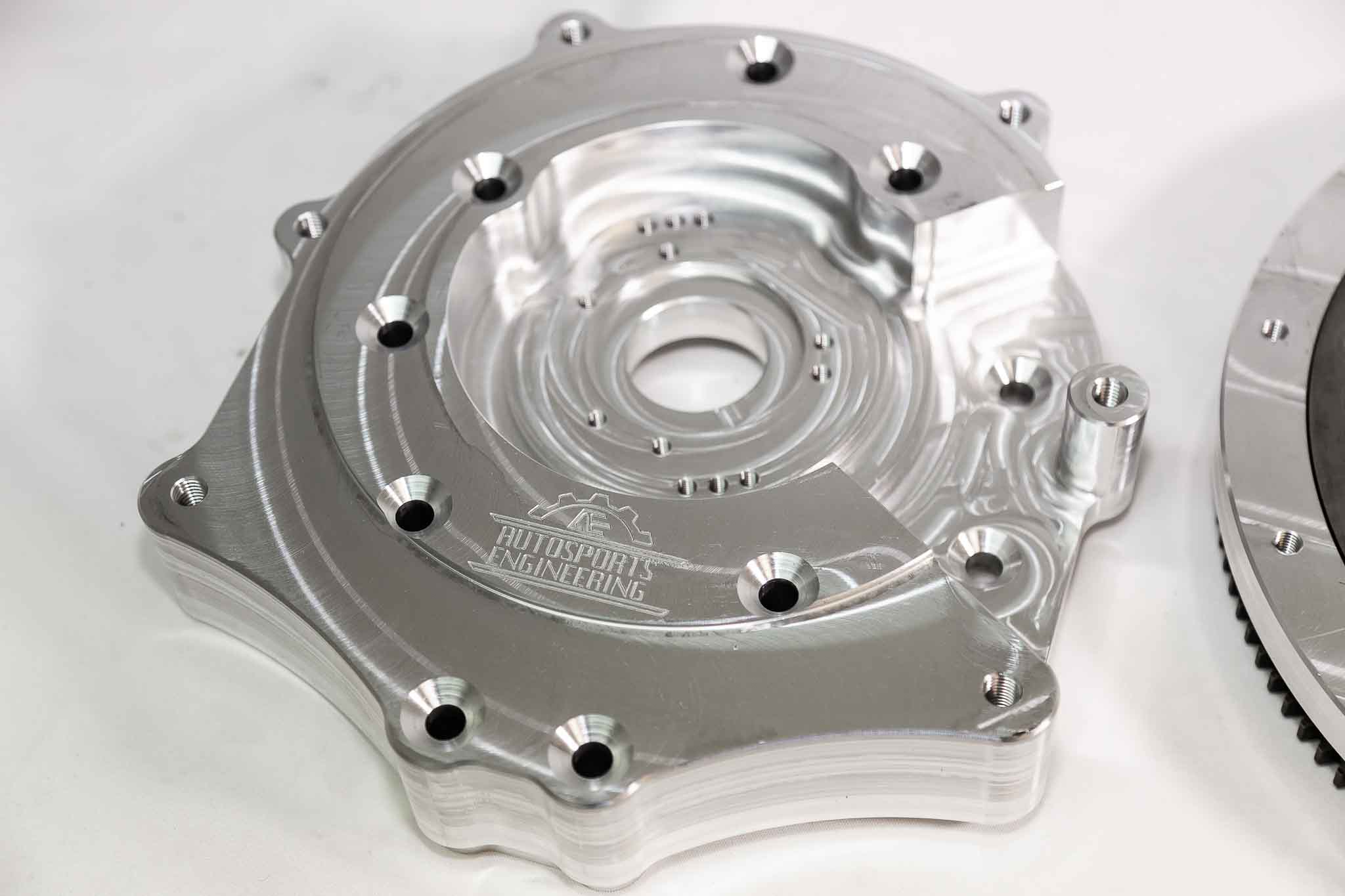

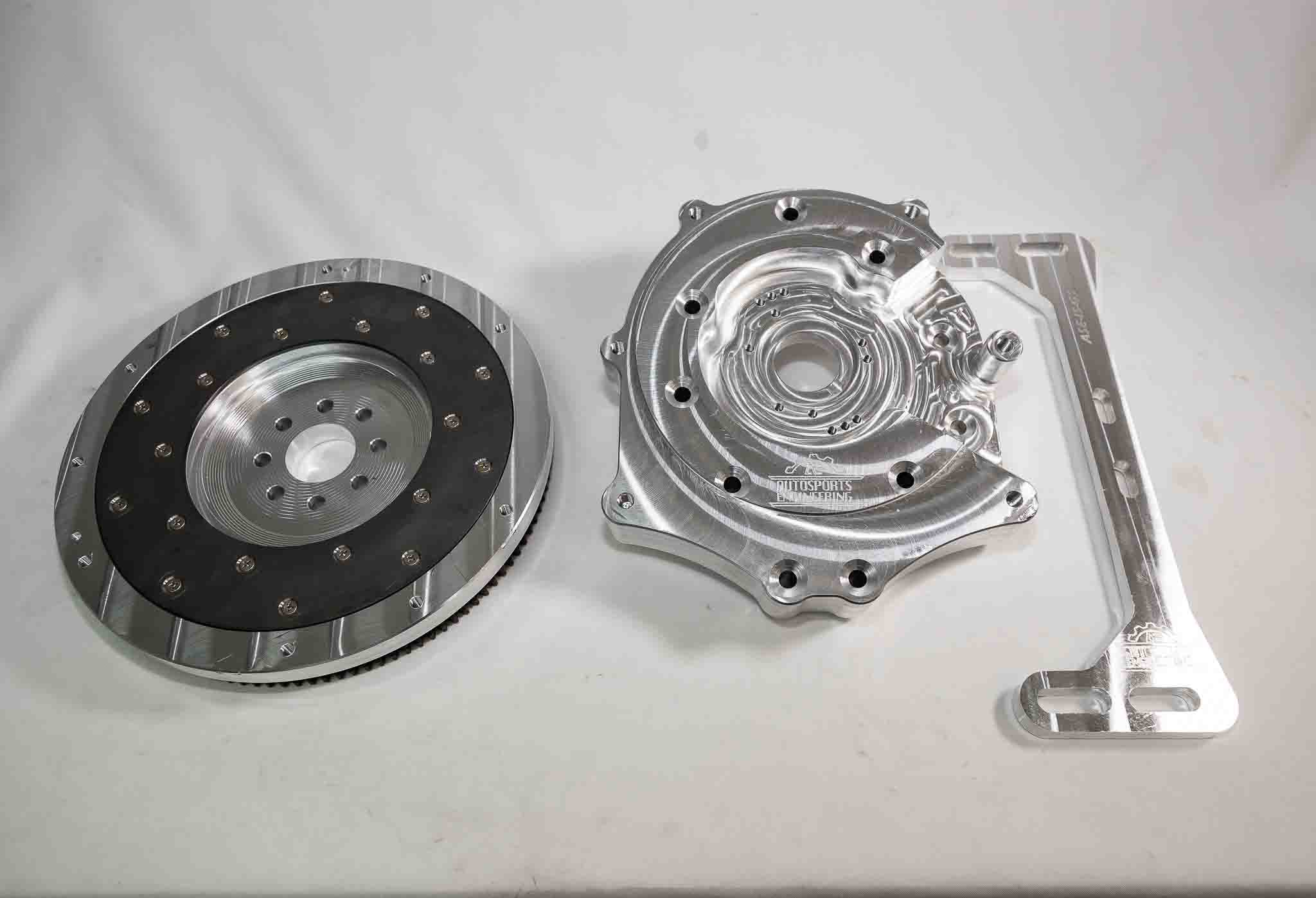

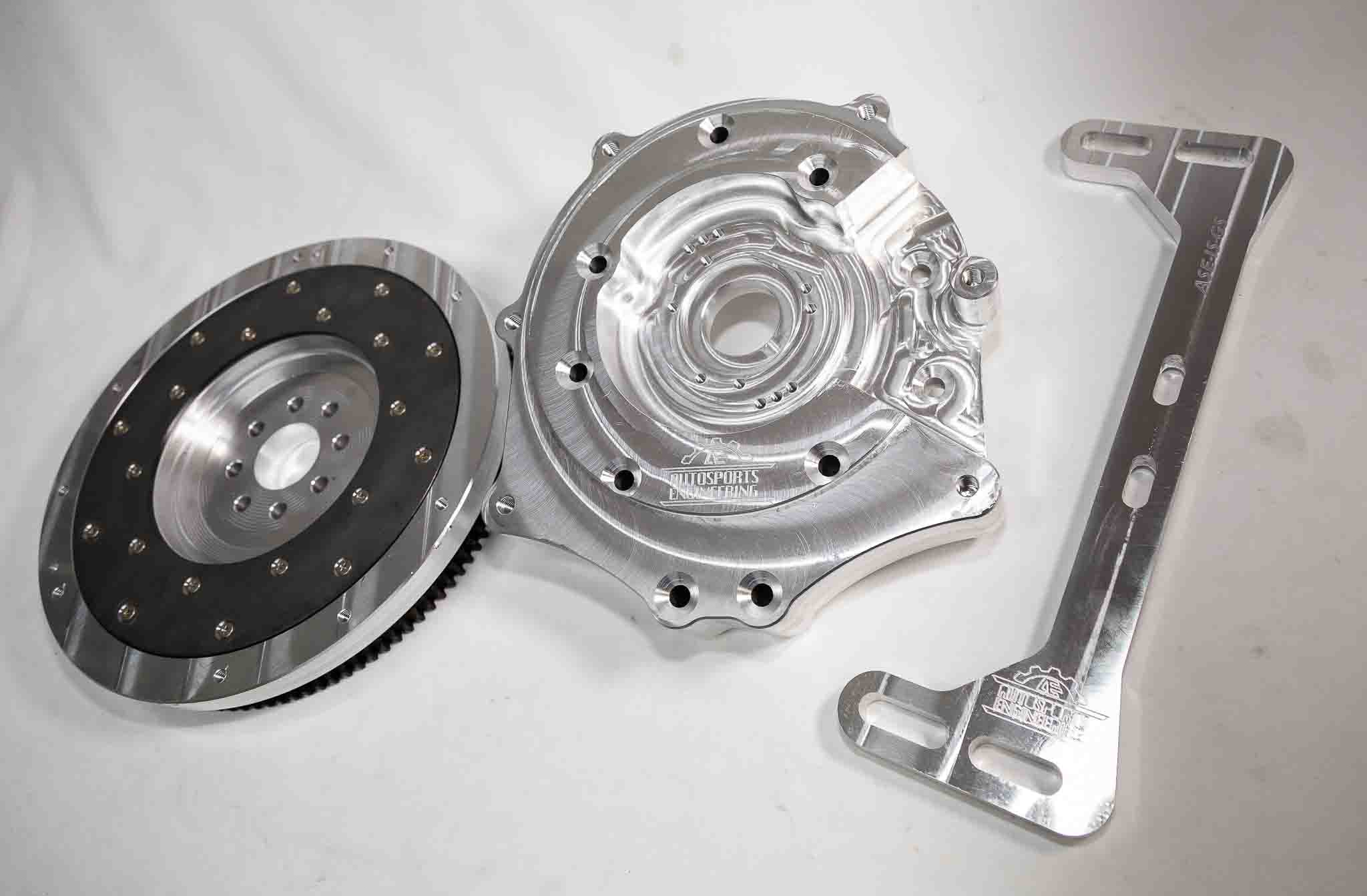

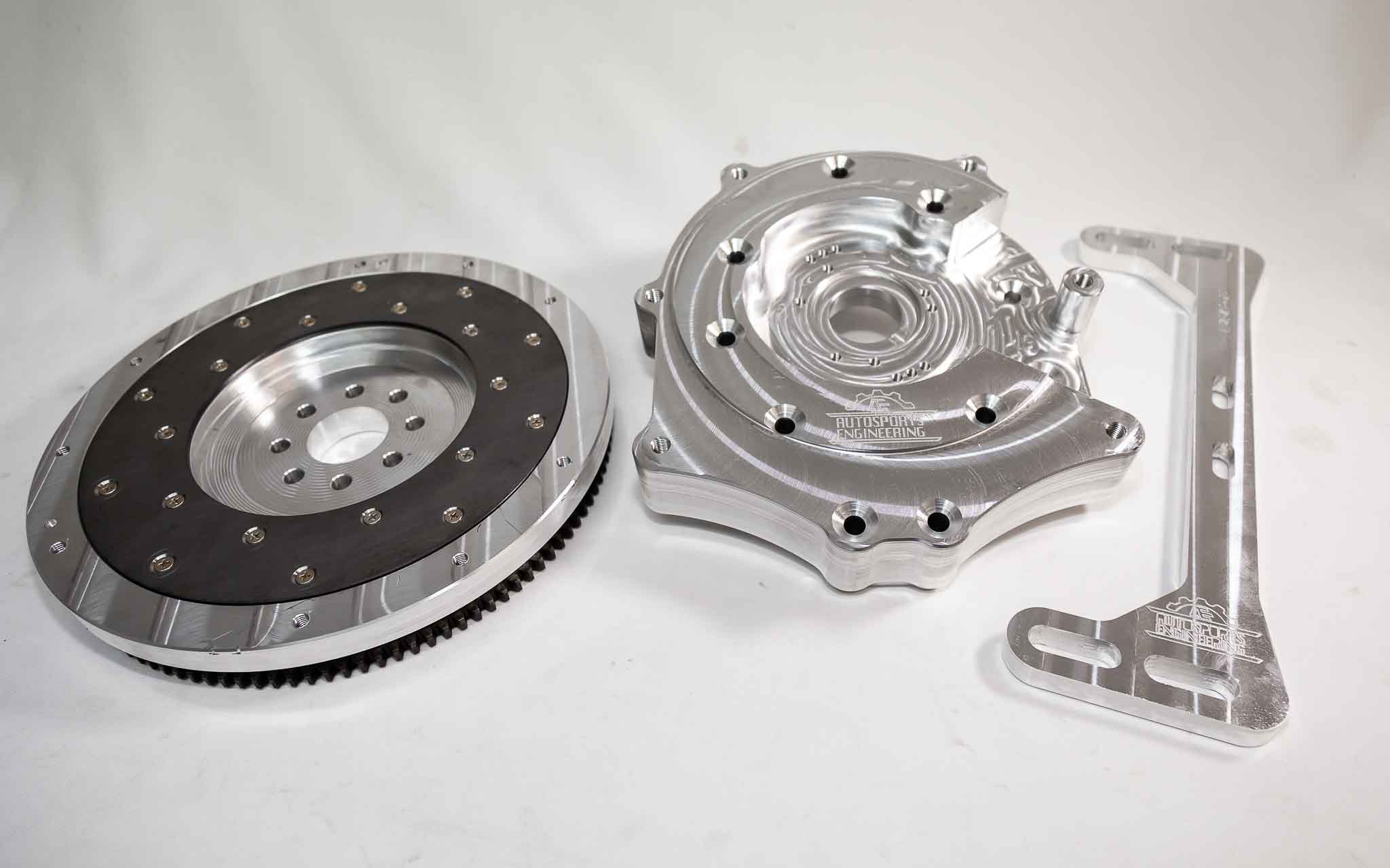

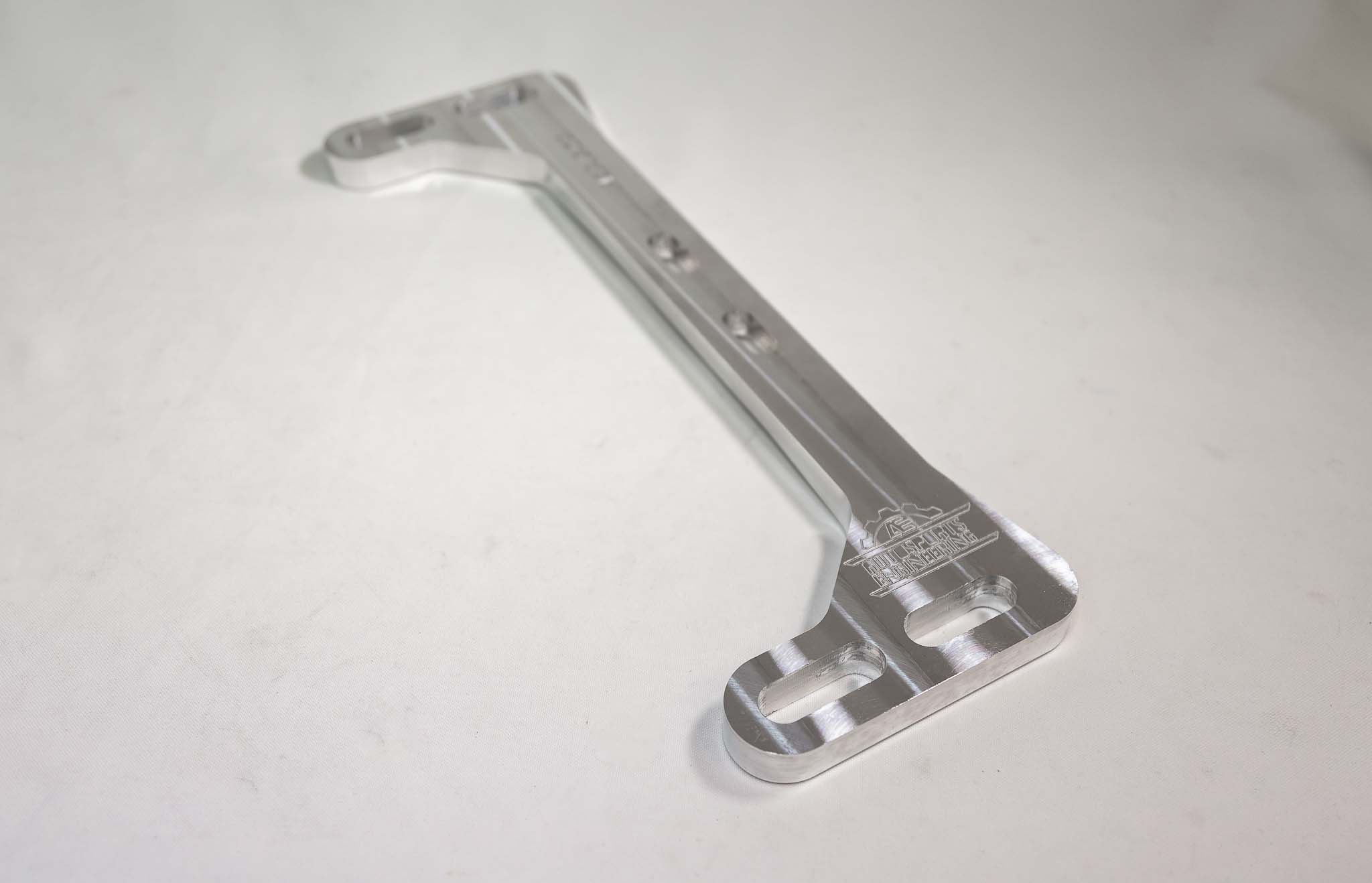

Base Kit: J1/J2 Adapter Plate, Flywheel, Transmission Crossmember & Mount, Hardware, Pilot Bearing, Bearing Rings

Precision Crafted: Billet 6061 Aluminum Aircraft Grade for durability and performance.
Compatibility: Connects 2JZGTE, 2JZ, 1JZ, 2JZGE engines to the SC300 CD009 6-speed transmission.
Enhanced Clutch Performance: Compatible with Single Disc 350Z/370Z Clutch kits from ACT, SPEC, Competition, Clutch Masters and more.

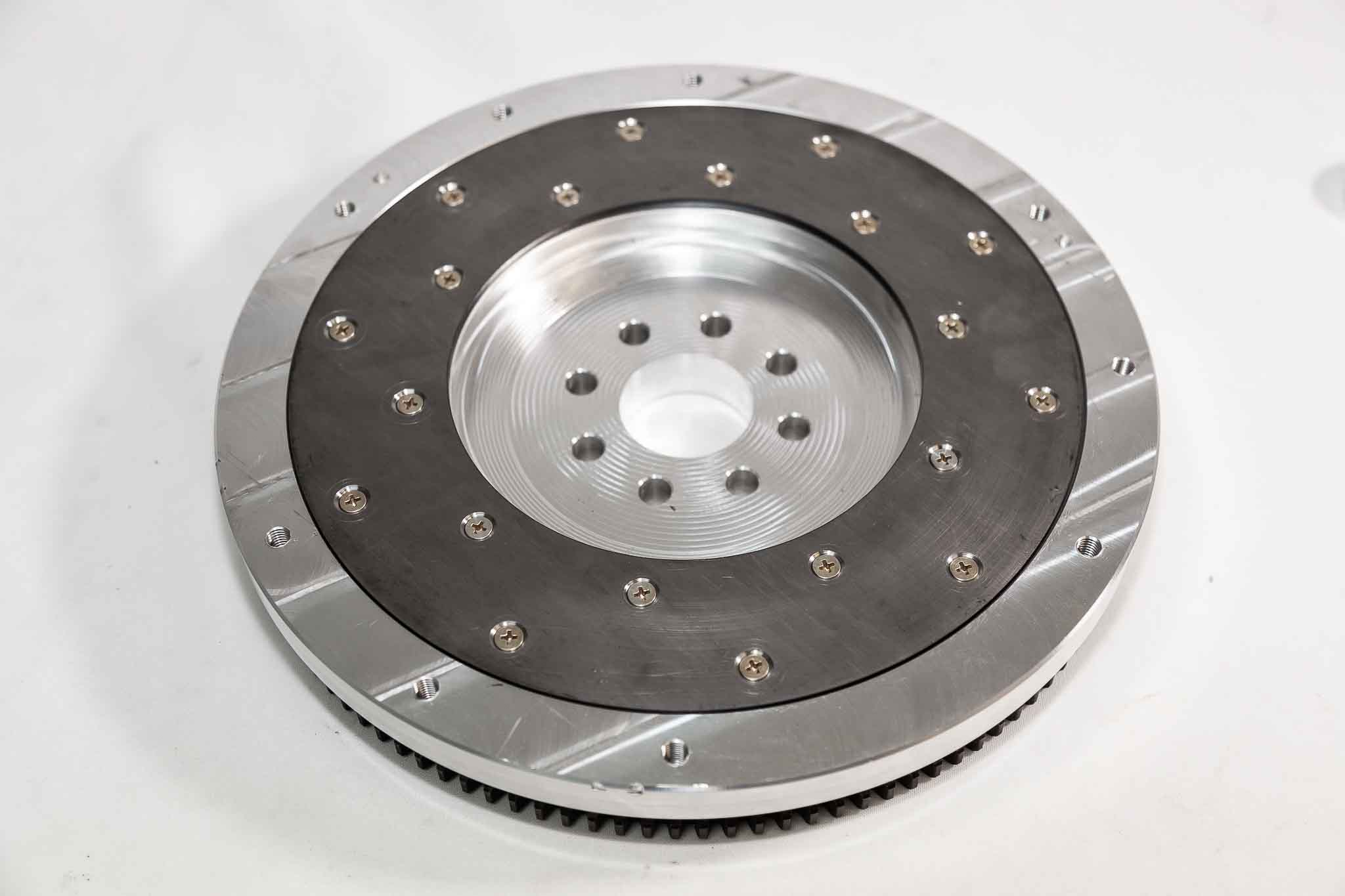

Custom Flywheel Included: ASE Custom flywheel tailored for the CD009 Clutch kit.
Easy Installation: Includes hardware to mount Slave, Adapter Plate, Flywheel, and Transmission Crossmember with Mount.
Additional Components: Pilot Bearing Adapter Bushing included. Uses Bell Housing from Automatic 2JZ (not included, J1 J2 or J3) and GM T56 slave cylinder (not included).

Identifying your bell housing — J1, J2 or J3

The J-code is stamped into the casting of your original Toyota A340 automatic bell housing. Check there before selecting. A J3 plate can be requested after ordering at the same price.

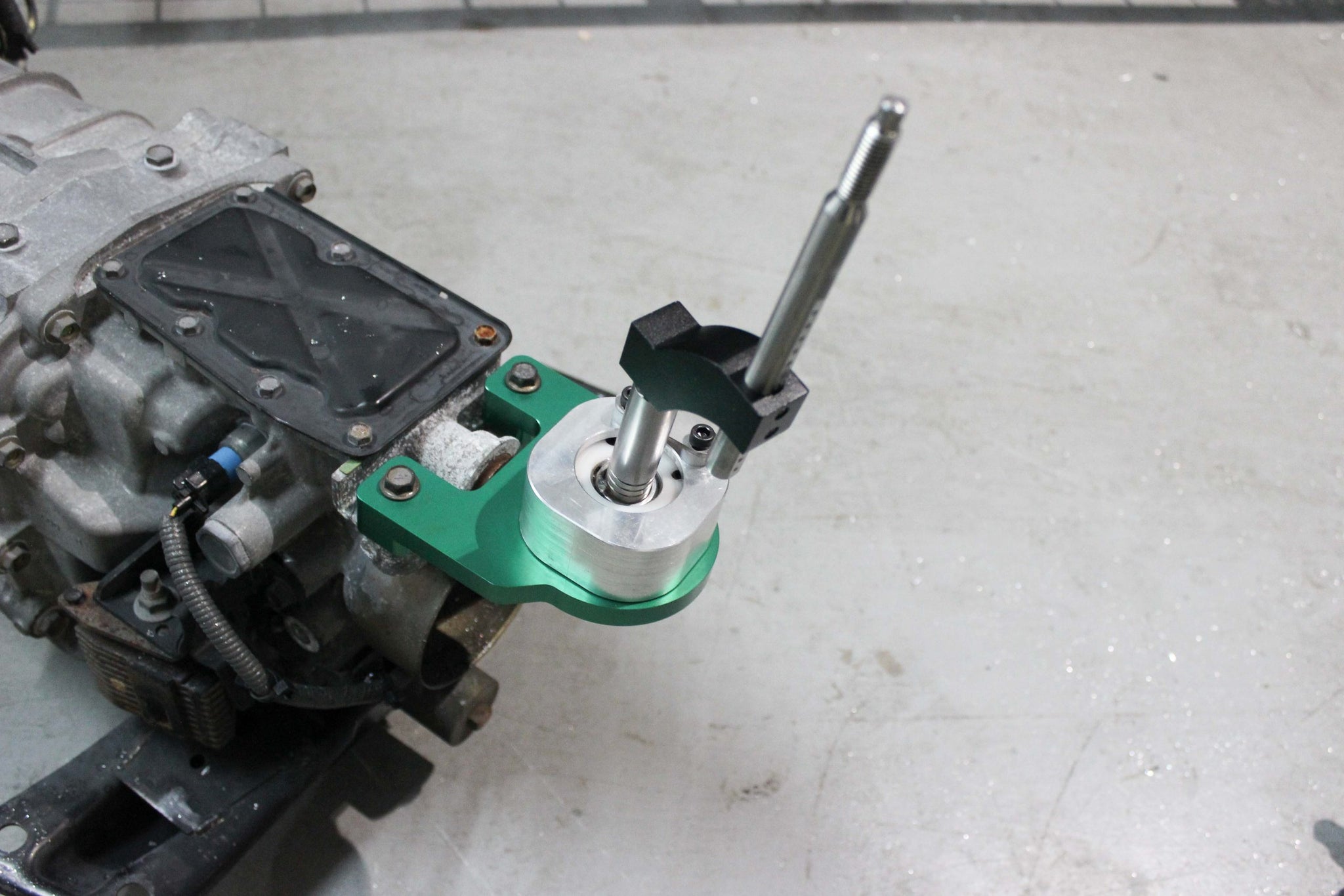

Shifter

Use the rear mount shifter in an SC300. The front mount is not usable in this chassis.

Slave cylinder

Uses the T56 99 Camaro slave cylinder for correct throw. It should sit fully compressed against the pressure plate fingers with no preload.

Driveshaft

Not included — ordered separately. Steel and aluminum are both built on 3" tube, and carbon is also offered.

Shipping + Returns

All standard non custom made to order items are eligible for return within 30 days of purchase. To request a return purchaser must email us or call to request Instructions on how to proceed with returning an item. Upon receipt of your return you will be issued a return within 3-5 business days. Any custom order items will only have 7 days from the date of purchase/payment to request a cancellation/refund. Beyond that time frame you will be issued a refund up to 30 days from purchase minus a 20% restocking/cancellation fee. All refunds will be issued in the same form as your payment was made/ If you purchase via PayPal your refund will be via PayPal etc. Buyer is responsible for all costs associated with the return of an item as far as shipping/freights go. All items must be return in NEW unused condition. Any damage to the item with be due a 20% minimum restocking fee. Exchanges for product defect or warranty will not incur any restocking charges and shipping charges will be credited as well.
