Which ranges are available?

0-30 psi, 0-150 psi, 0-300 psi, 0-500 psi and 0-1500 psi.

How is the Short Body different from the Pressure Sensor PRO?

The Short Body is a compact stainless sensor, 45.5 mm tall (52.8 mm for 0-30 psi) with a 27 mm hex. Both use a 5V supply, 0.5-4.5V output, 1/8 in NPT thread and the same A/B/C pinout.

Accuracy is plus or minus 1.0% of span, with long-term stability within 0.25% of span per year.

Pin A is ground, pin B is 5V and pin C is signal.

Is it sealed against water?

Yes. The enclosure is rated IP67, or IP65 for electrical code G.

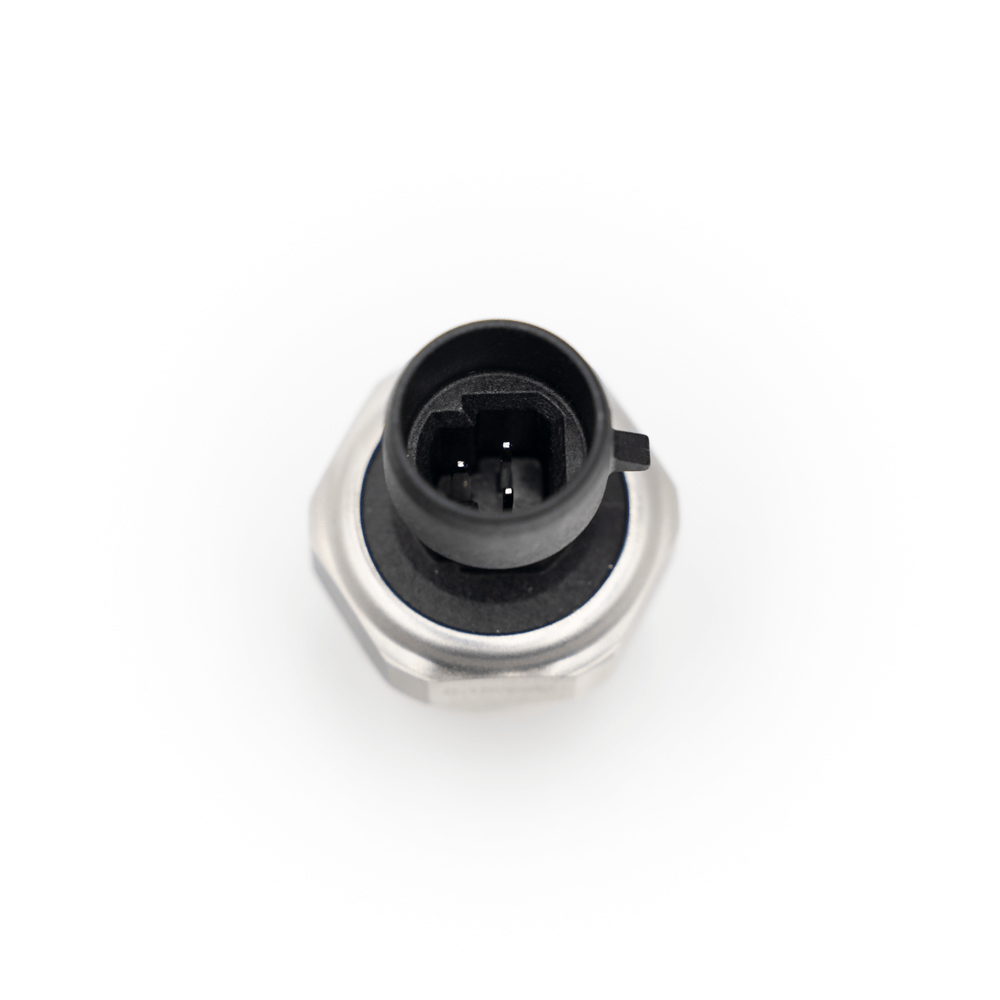

FuelTech Pressure Sensor Short Body

FuelTech short body pressure sensor 0-150 psi

FuelTech short body pressure sensor pinout and dimensions

FuelTech short body pressure sensor 0-300 psi

FuelTech short body pressure sensor 0-500 psi

FuelTech short body pressure sensor 0-30 psi version

FuelTech short body pressure sensor 0-1500 psi

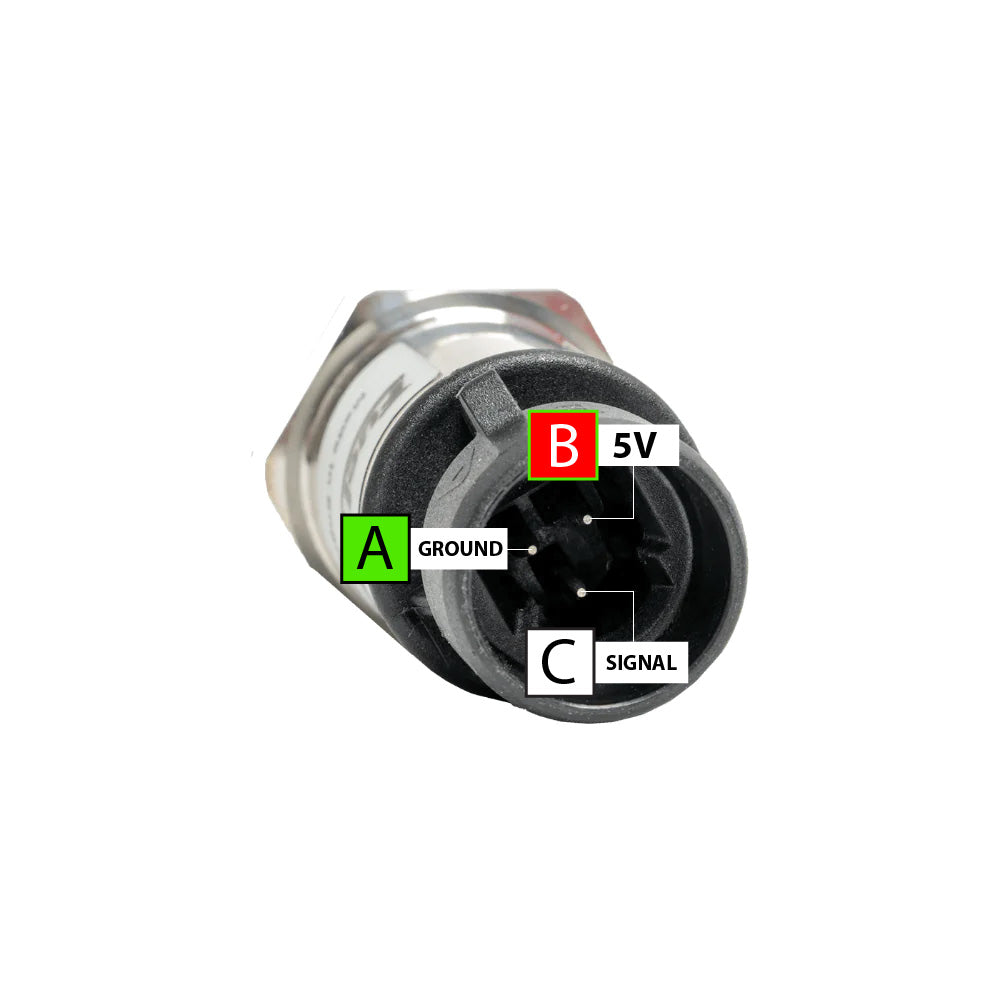

FuelTech 3-pin pressure sensor connector pinout diagram A ground B 5V C signal

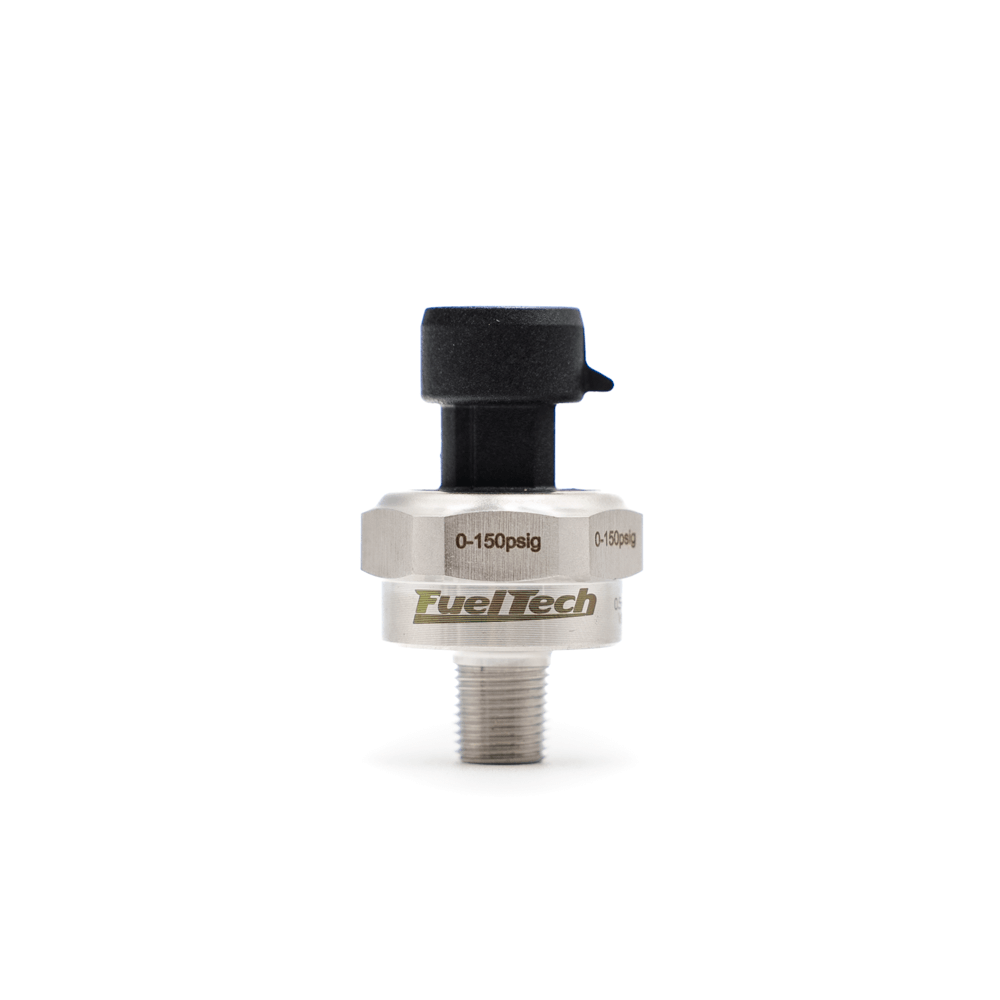

Load image into Gallery viewer, FuelTech short body pressure sensor 0-150 psi

Load image into Gallery viewer, FuelTech short body pressure sensor pinout and dimensions

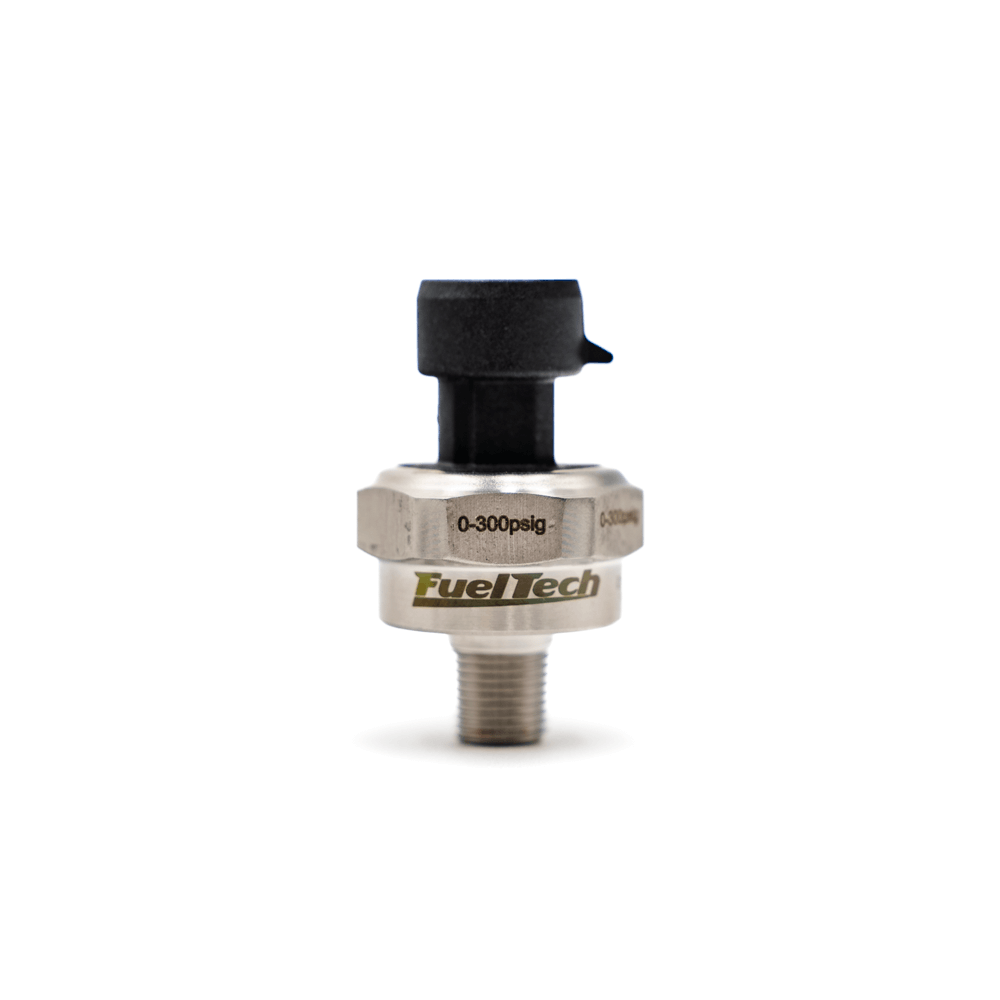

Load image into Gallery viewer, FuelTech short body pressure sensor 0-300 psi

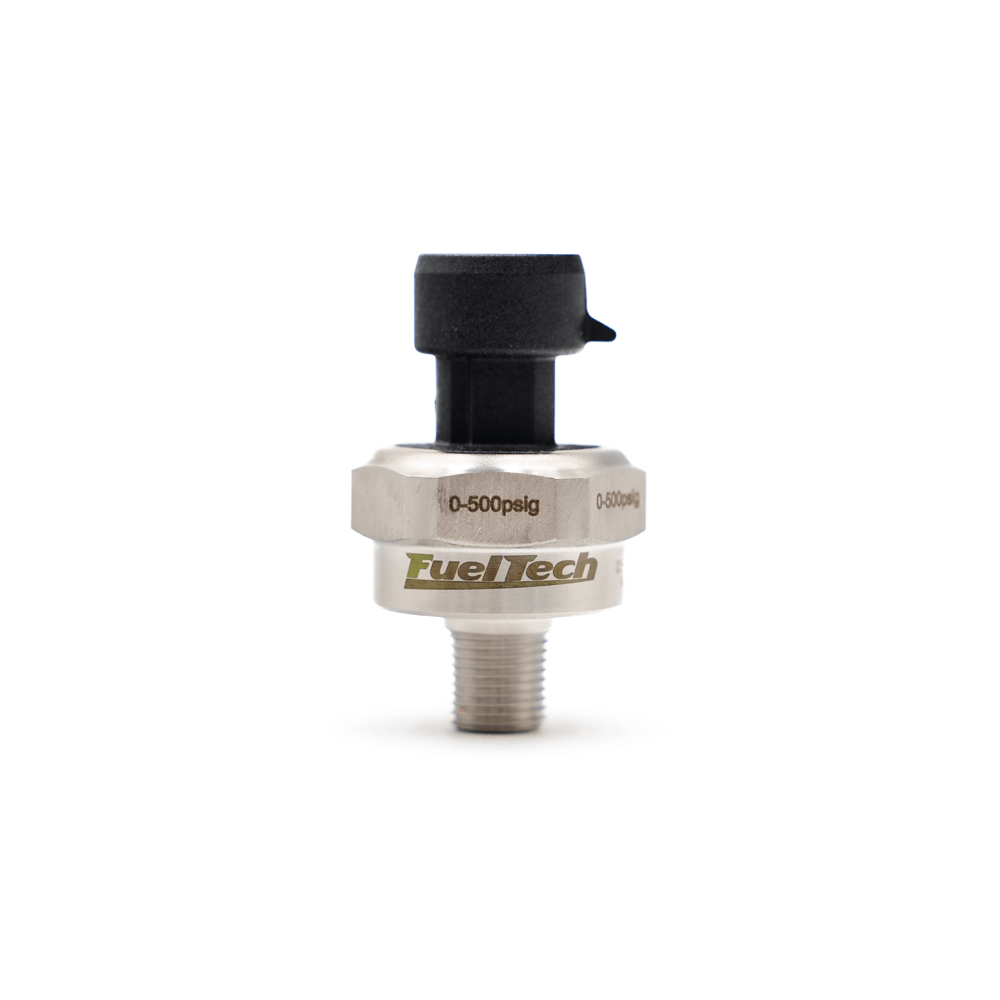

Load image into Gallery viewer, FuelTech short body pressure sensor 0-500 psi

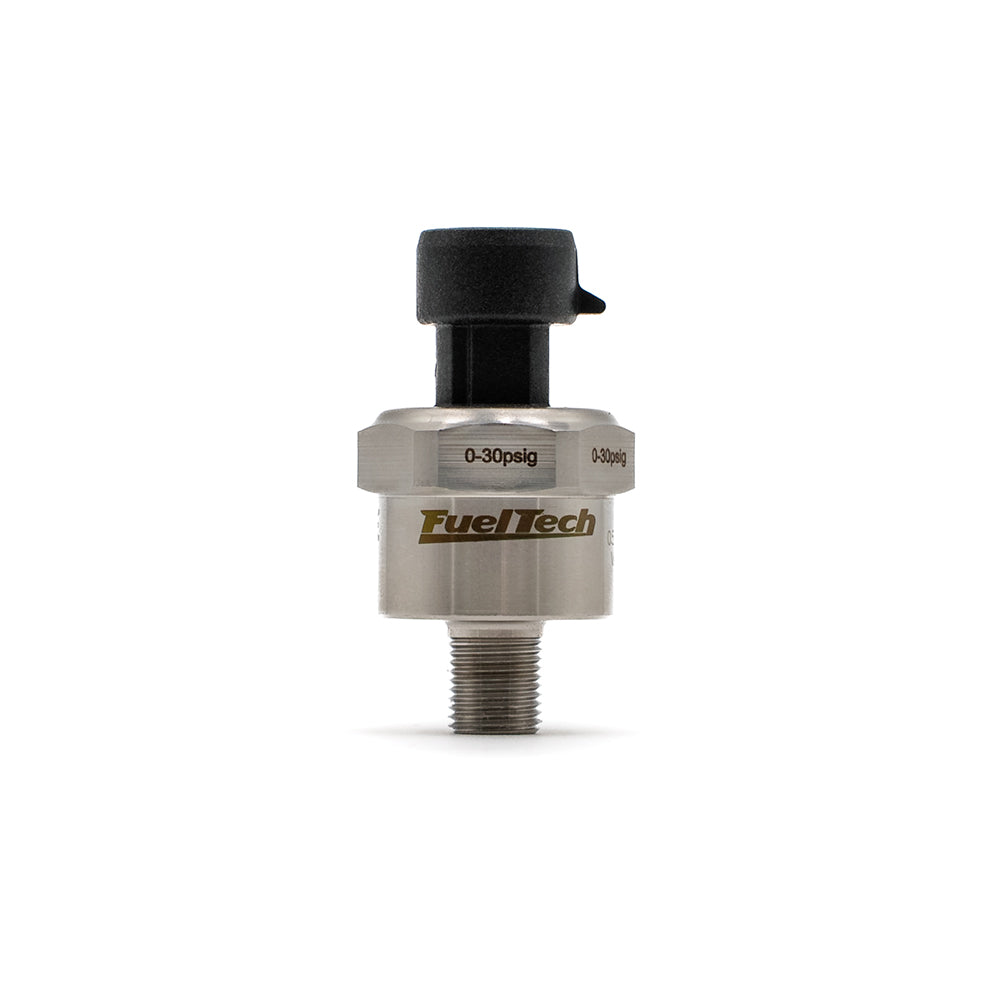

Load image into Gallery viewer, FuelTech short body pressure sensor 0-30 psi version

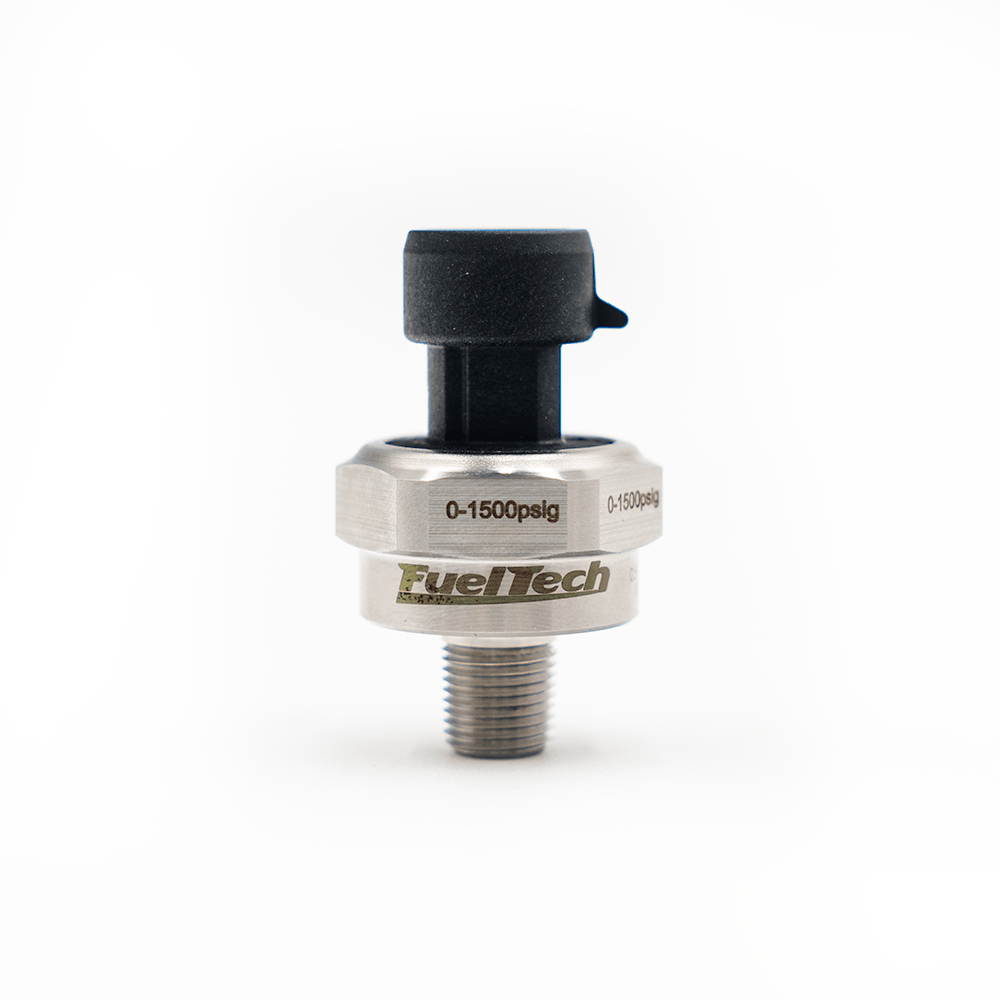

Load image into Gallery viewer, FuelTech short body pressure sensor 0-1500 psi

Load image into Gallery viewer, FuelTech 3-pin pressure sensor connector pinout diagram A ground B 5V C signal

The FuelTech Short Body Pressure Sensor is a compact stainless steel transducer for logging fuel, oil...

FuelTech Pressure Sensor Short Body

Brand: FuelTech

SKU: 5005100590

availability: In stock

Product Code: Pressure Sensors

$89.00

The FuelTech Short Body Pressure Sensor is a compact stainless steel transducer for logging fuel, oil...

Range *

0-30 PSI

0-150 PSI

0-300 PSI

0-500 PSI

0-1500 PSI

Options *

w/o mating plug kit

w/ mating plug kit

Quantity

- +

Subtotal: $89.00

Quantity must be 1 or more

I agree with the terms and conditions

283 customers are viewing this product

FuelTech Pressure Sensor Short Body

0-30 PSI / w/o mating plug kit - $89.00

Have Questions?

+1888 641 5150

Ask an Experts

Guaranteed Fitment
Always the correct part

In-House Experts
We know our products

Added Value
Fast Support and Installation Help

Shipping
Wordwide Delivery

Description
Shipping + Returns

Description

The FuelTech Short Body Pressure Sensor is a compact stainless steel transducer for logging fuel, oil and other pressures where space is tight. It outputs a 0.5-4.5V signal on a 5V supply, responds in under 5 ms and is sealed to IP67, making it a solid general-purpose sensor for FuelTech ECUs and data systems.

Ranges: 0-30 (PS30), 0-150 (PS150), 0-300 (PS300), 0-500 (PS500) or 0-1500 psi (PS1500)
Output: 0.5-4.5V on 5V supply
Thread: 1/8 in NPT
Height: 45.5 mm (52.8 mm for 0-30 psi); 27 mm hex
Stainless steel body, 17-4 PH stainless wetted parts

Specifications

Accuracy	±1.0% of span
Stability	≤±0.25% of span per year
Zero / span tolerance	0.5% of span each
Response time	< 5 ms
Warm-up time	< 20 ms
Compensated temperature	-58°F to +257°F (-40°C to +125°C)
Operating temperature	-40°F to +257°F (-40°C to +125°C)
Fatigue life	50 million cycles
Enclosure	IP67 (IP65 for electrical code G)
Vibration	20 g RMS random, 20-2000 Hz per IEC 60068-64
Shock	100 g, 6 ms
Approvals	CE, European Pressure Directive, RoHS, UL recognized (files E219842 and E174228)

Pinout: A - Ground, B - 5V, C - Signal.

Shipping + Returns

All standard non custom made to order items are eligible for return within 30 days of purchase. To request a return purchaser must email us or call to request Instructions on how to proceed with returning an item. Upon receipt of your return you will be issued a return within 3-5 business days. Any custom order items will only have 7 days from the date of purchase/payment to request a cancellation/refund. Beyond that time frame you will be issued a refund up to 30 days from purchase minus a 20% restocking/cancellation fee. All refunds will be issued in the same form as your payment was made/ If you purchase via PayPal your refund will be via PayPal etc. Buyer is responsible for all costs associated with the return of an item as far as shipping/freights go. All items must be return in NEW unused condition. Any damage to the item with be due a 20% minimum restocking fee. Exchanges for product defect or warranty will not incur any restocking charges and shipping charges will be credited as well.
