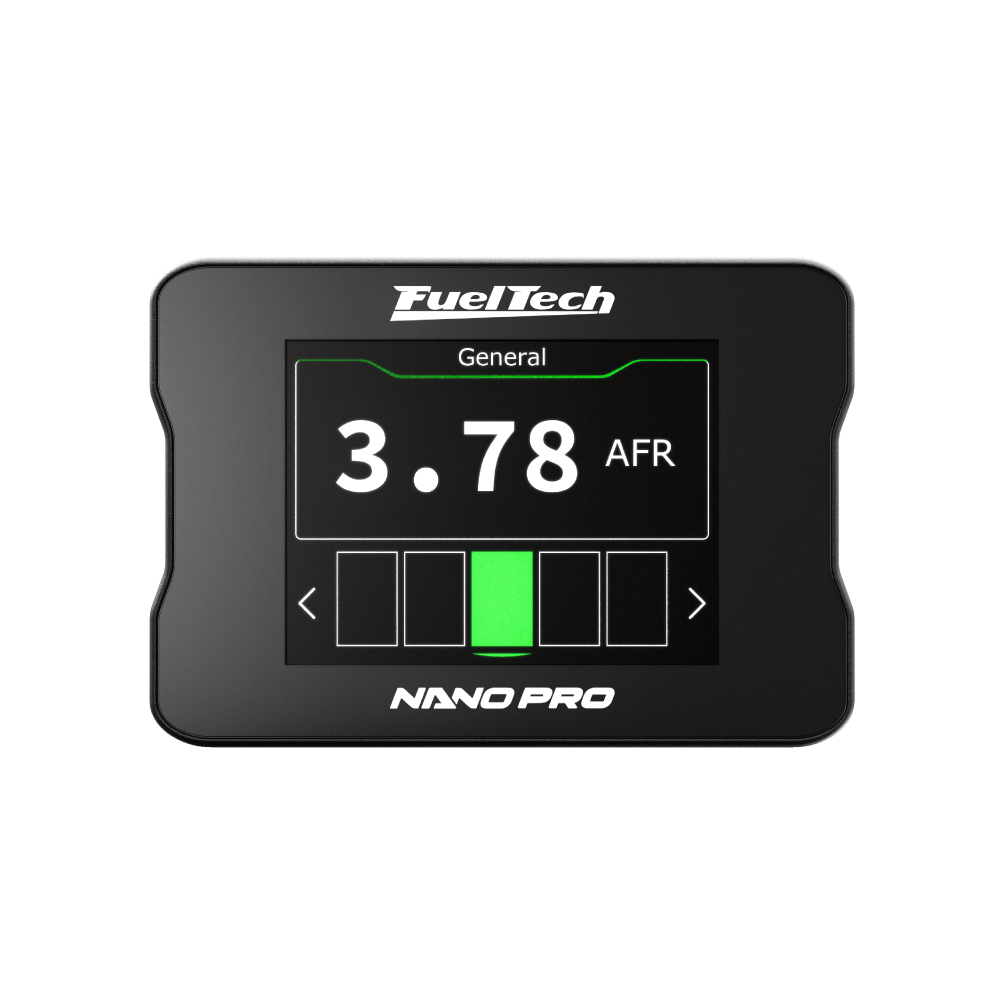

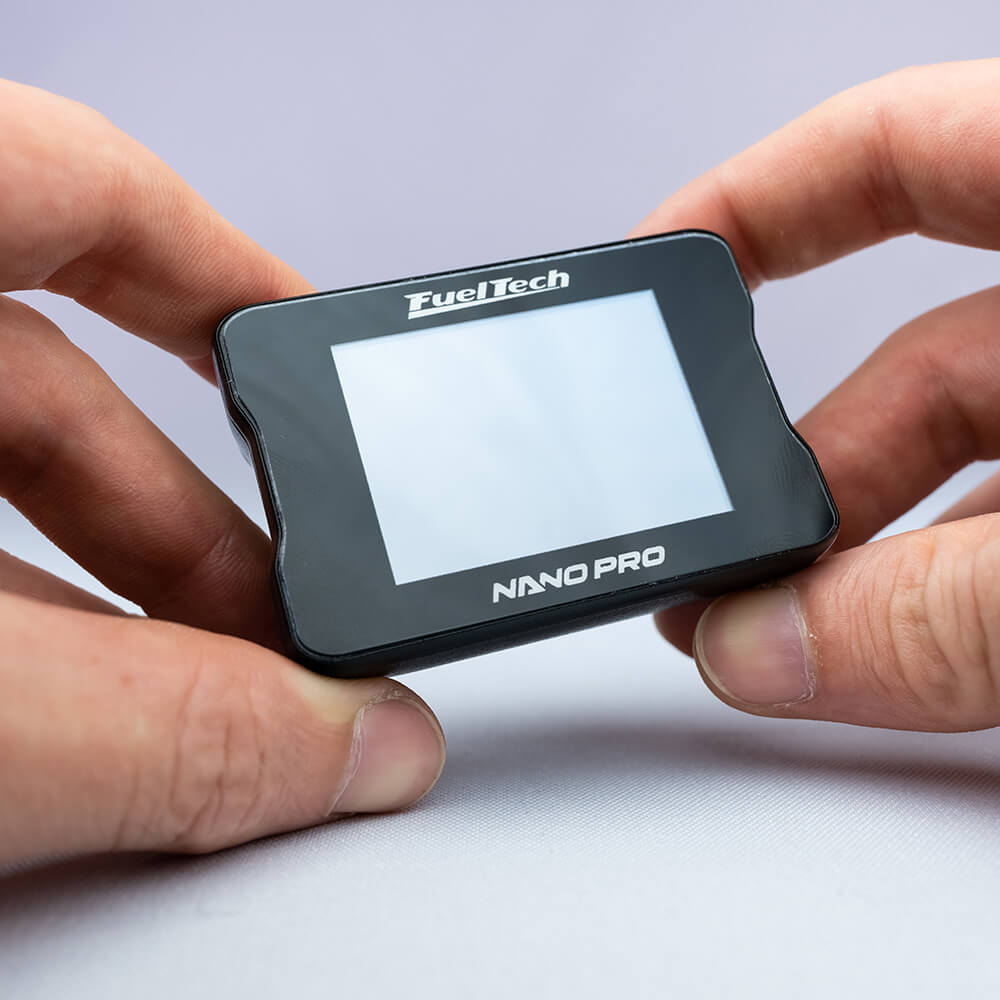

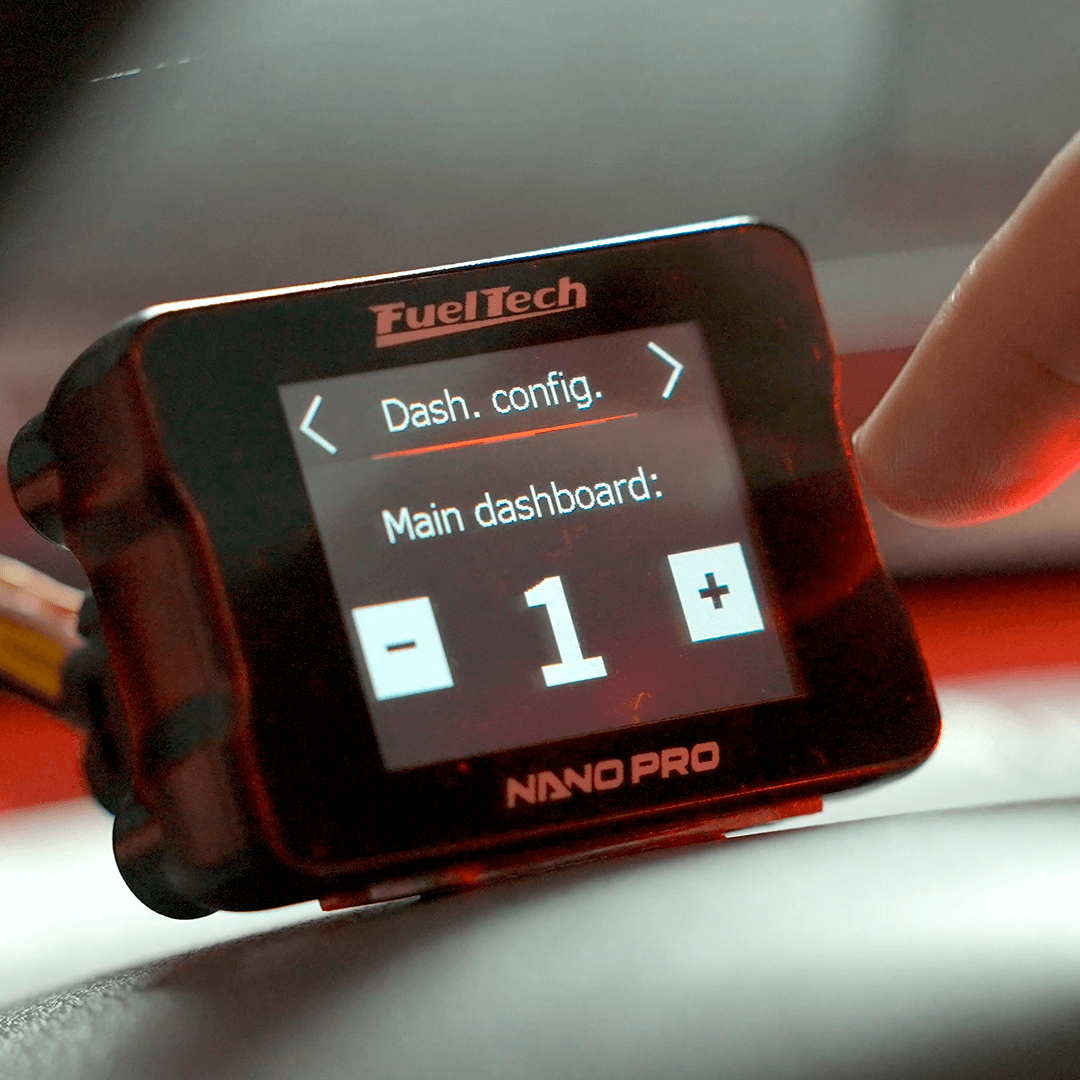

The FuelTech NanoPRO combines three jobs in one small unit: wideband O2 sensor controller, secondary dash display and touchscreen switch panel. It runs five different wideband sensors, shows ECU data on a 2-inch color touchscreen, and can send button commands to a FuelTech ECU over CAN, which saves analog inputs. With an IP67 rating when connected to its harness, it's used in cars, off-road machines and personal watercraft.
- Supports Bosch LSU 4.2, Bosch LSU 4.9, Bosch LSU 5.2, NTK ZFAS and NTK wideband O2 sensors
- Three configurable sensor heating modes (normal, fast, current limited) plus auto startup
- Extended wideband scale; readings can go slightly below 0.21 lambda

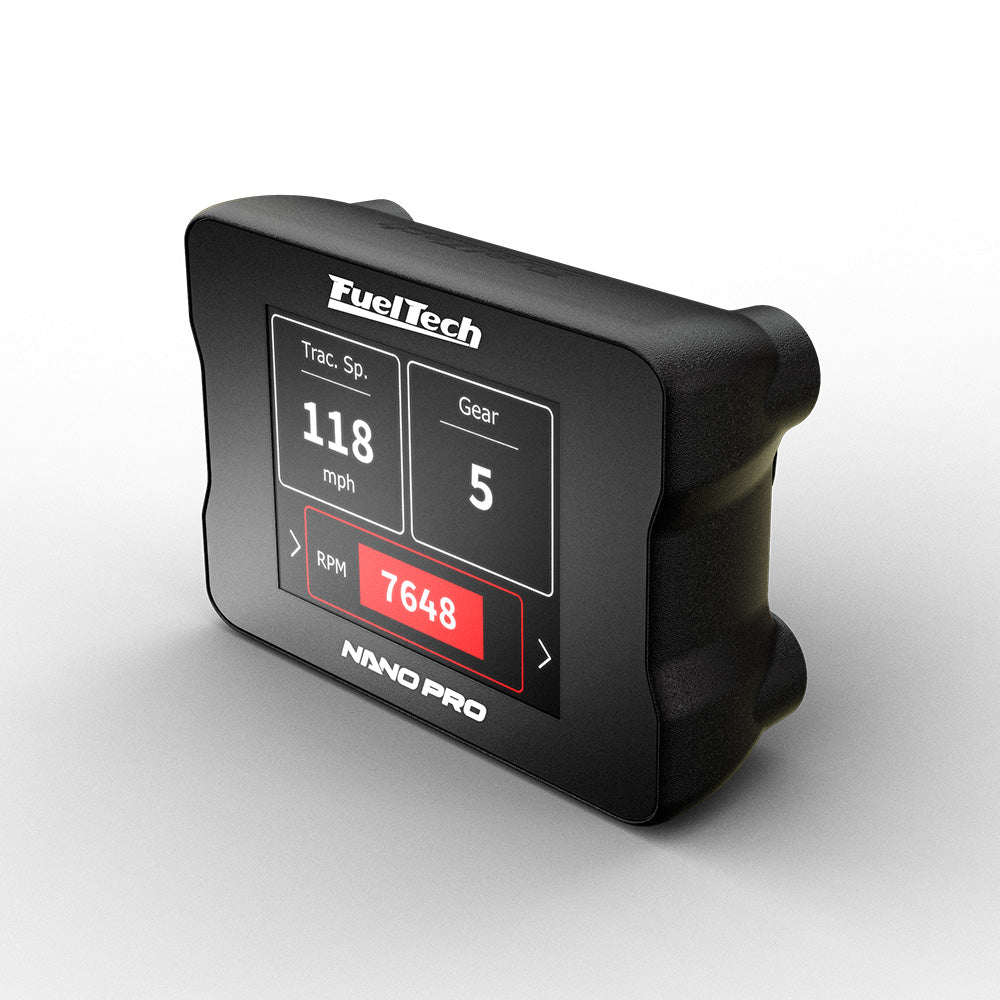

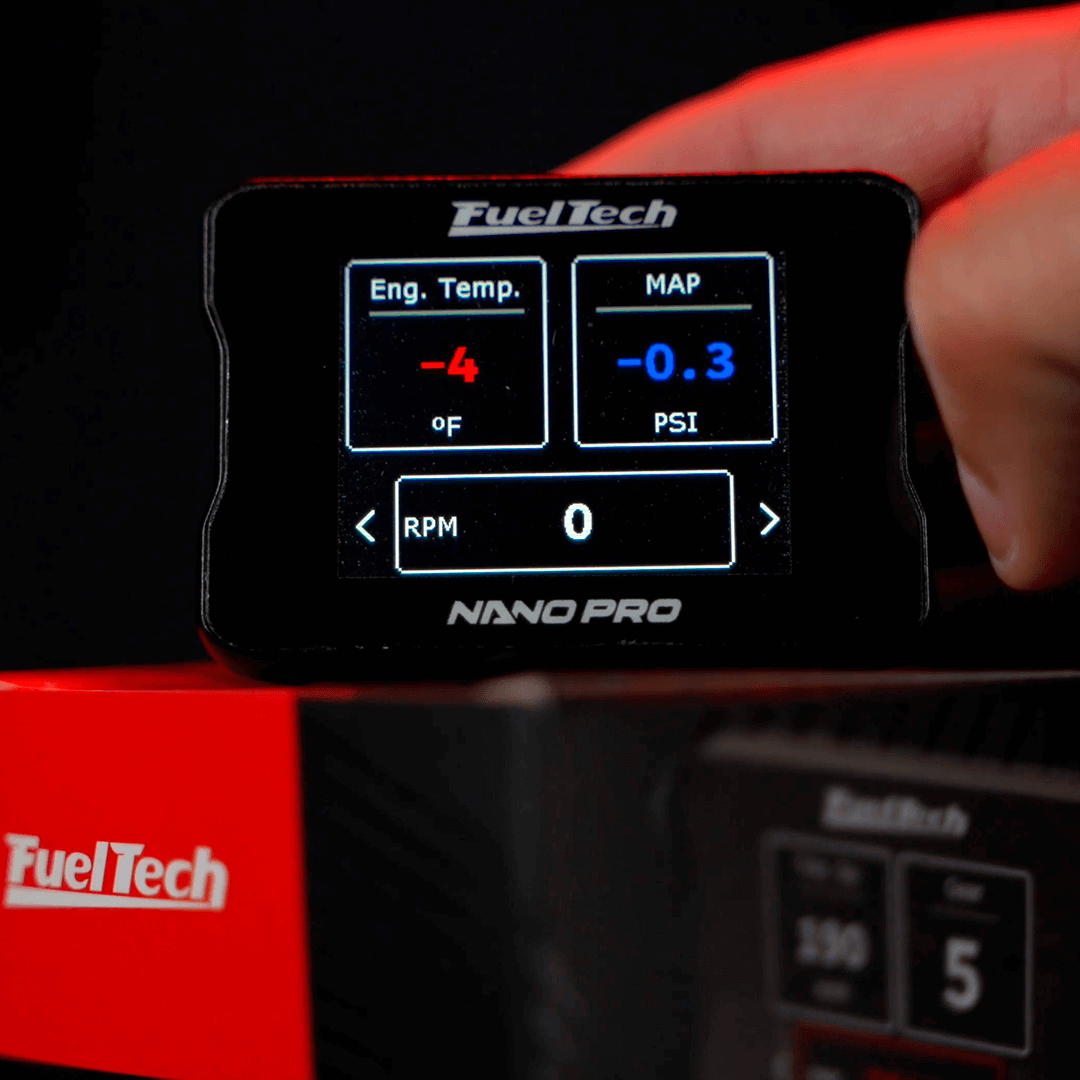

- 2-inch color touchscreen with up to 5 custom gauge screens (oil pressure, fuel pressure, boost, RPM, engine temperature and more)

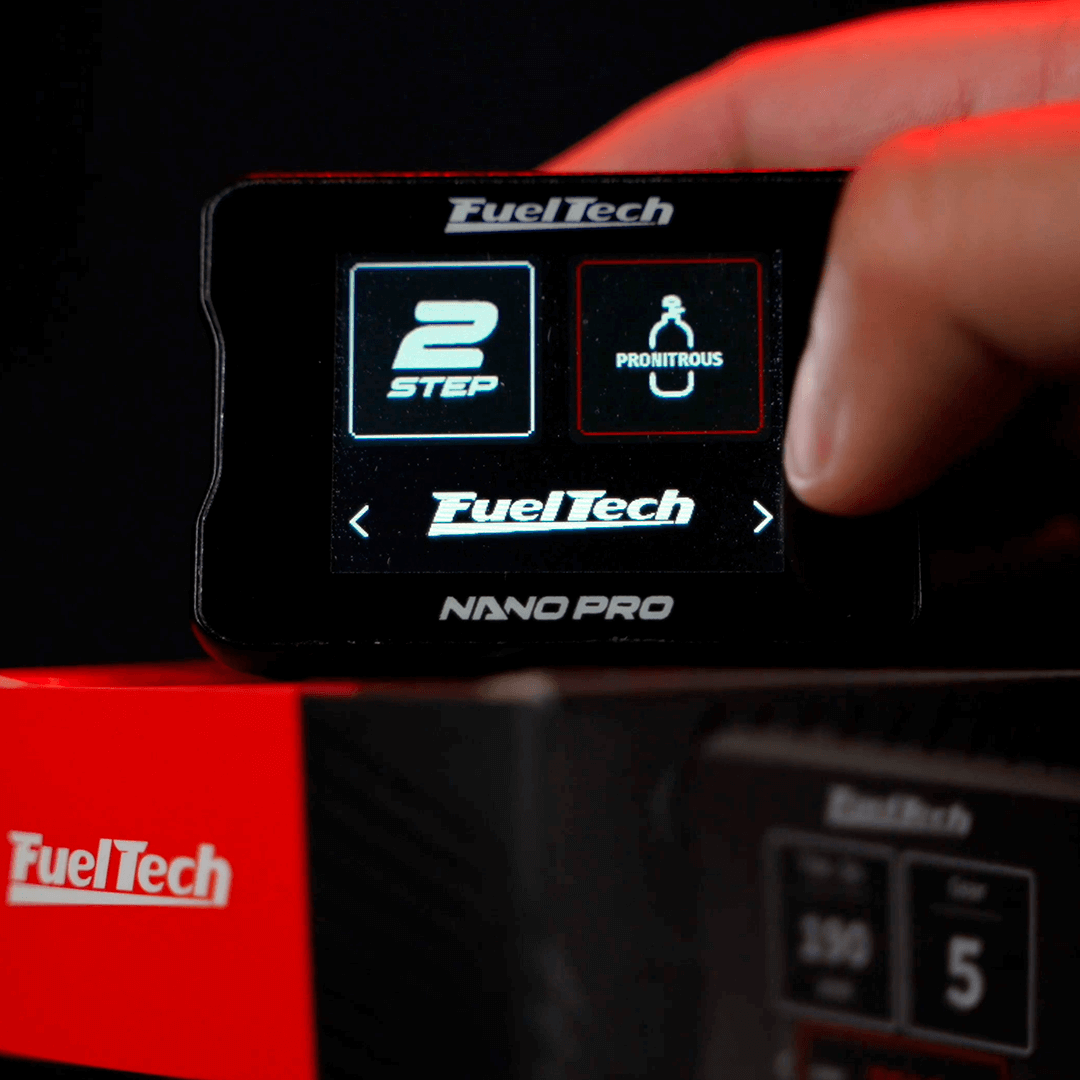

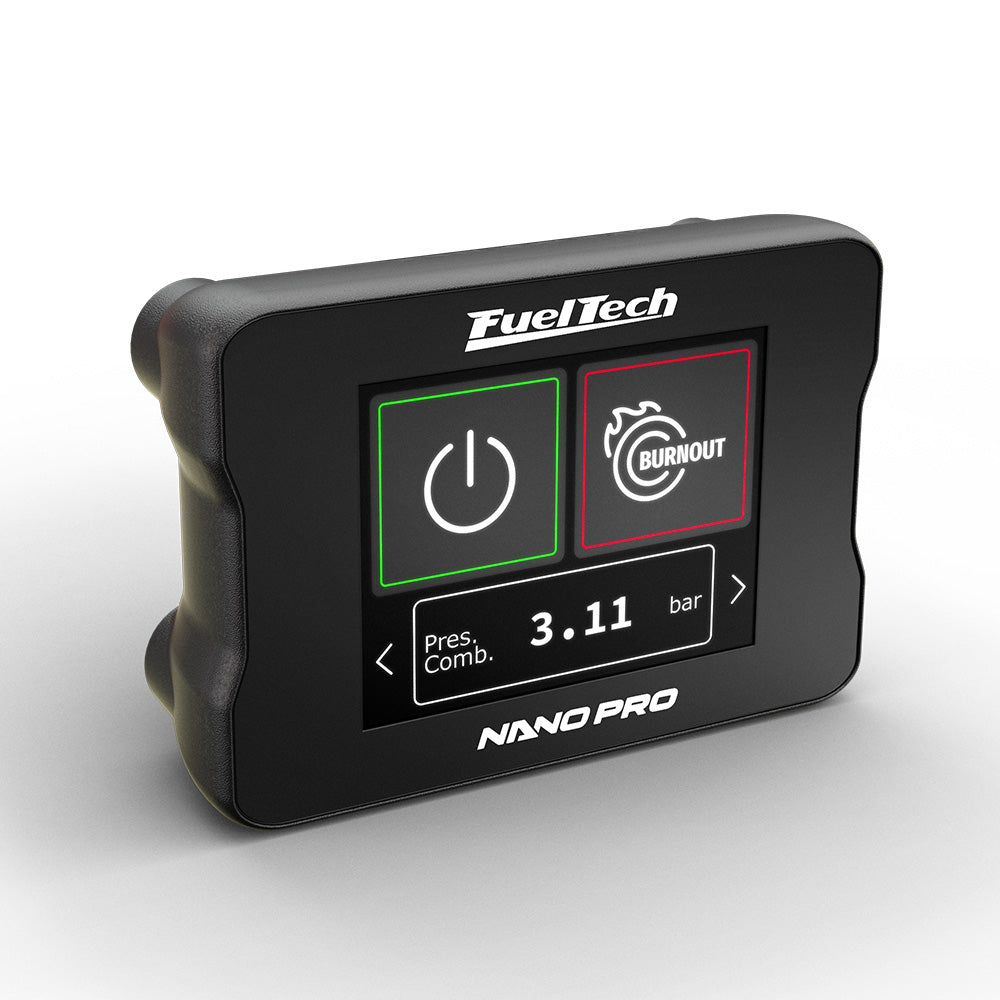

- Switch panel buttons sent over CAN bus to a FuelTech ECU, no analog input needed

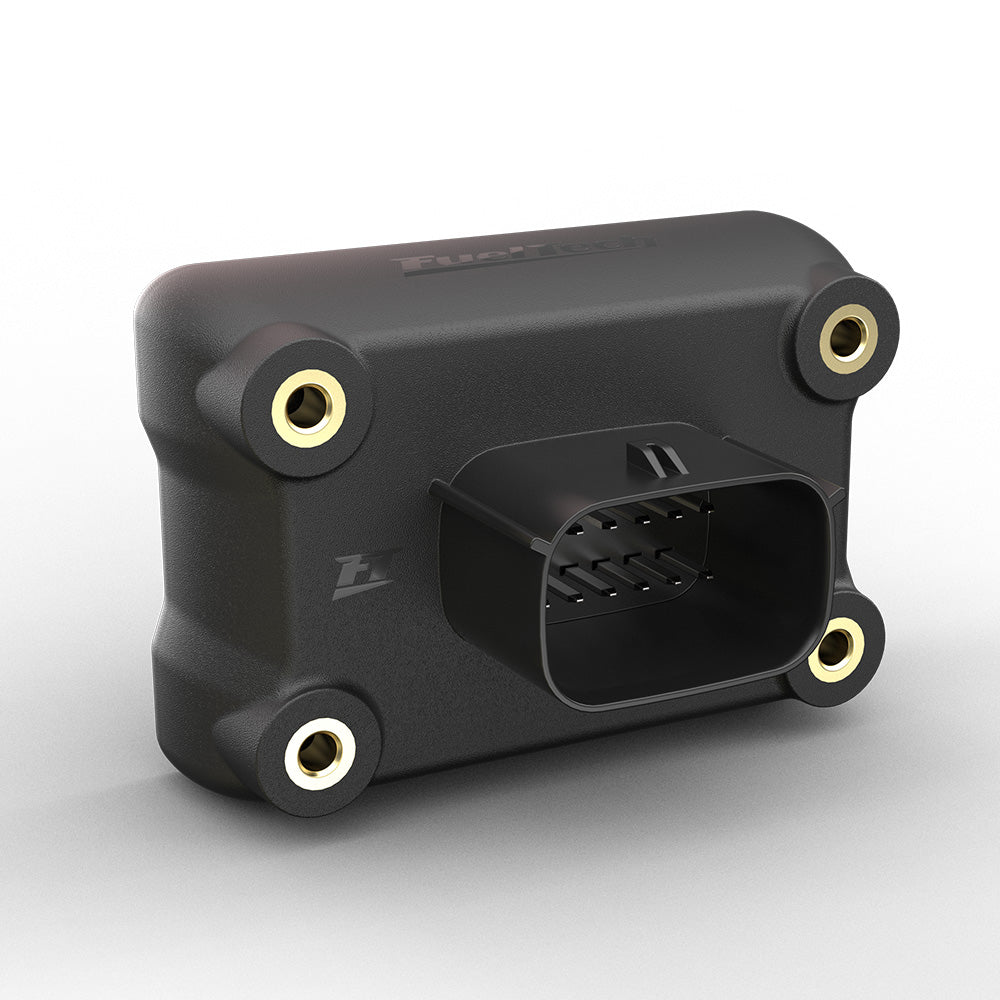

- IP67 rated when properly connected to the harness
What's included
The NanoPRO controller. The harness and O2 sensor are not included unless you choose them in the options. Available add-ons are the OBD2 adapter harness, unterminated Bosch LSU 4.2 harnesses (3 ft, 6.5 ft, 15 ft), unterminated Bosch LSU 4.9 harnesses (6.5 ft, 15 ft) and a Bosch LSU 4.2 O2 sensor.
Compatibility
Bosch LSU 4.2 (sensor and harness available), Bosch LSU 4.9 (harness available), Bosch LSU 5.2, NTK ZFAS (sensor, harness and Bosch-to-NTK adapter available) and the NTK wideband O2 sensor.
Related parts
NanoPRO / WB-O2 Nano mounting bracket, NanoPRO to OBD2 adapter harness, WB-O2 sensor Bosch to NTK adapter harness.
FuelTech NanoPRO manual (PDF)
FuelTech FTManager software (ZIP)
FuelTech NanoPRO 3D CAD file (ZIP)
