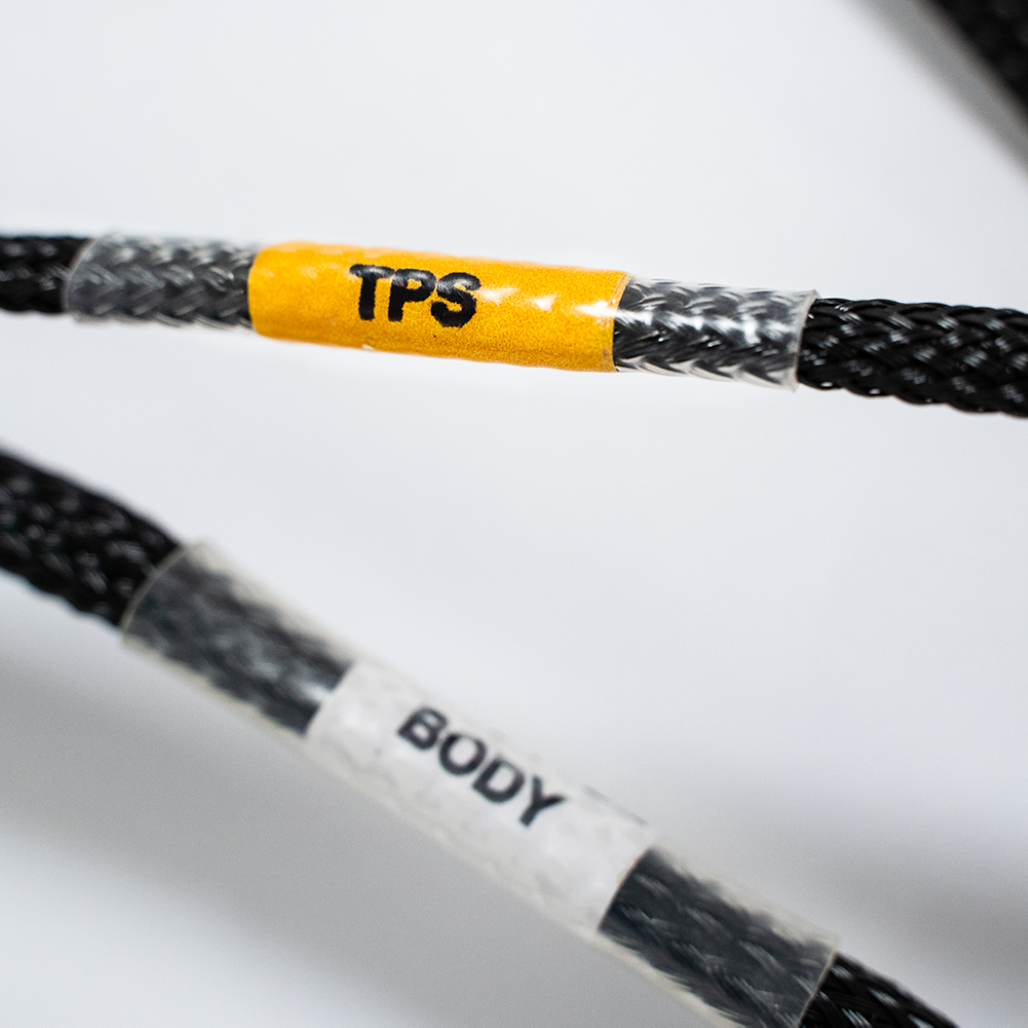

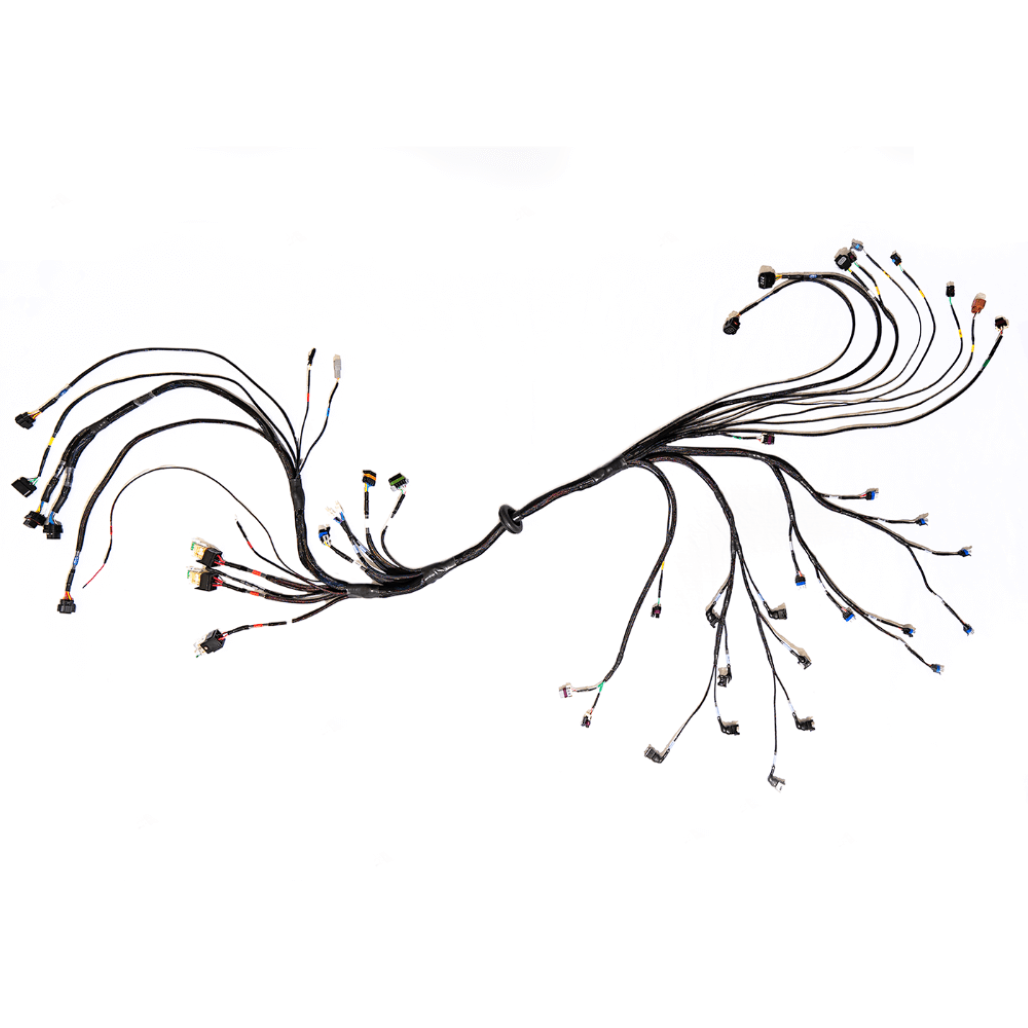

The FT550 LS Engine Gen IV Complete Harness replaces the factory GM ECU and harness on an LS so the engine runs standalone on a FuelTech FT550 or FT550LITE. It is pre-terminated for the LS with all relays and fuses, a firewall grommet and a labeled connector at every sensor, so power-up is a three-wire battery and ignition hookup. Both 58x and 24x triggers, LS3-style coils, flex fuel and dual wideband are supported out of the box.

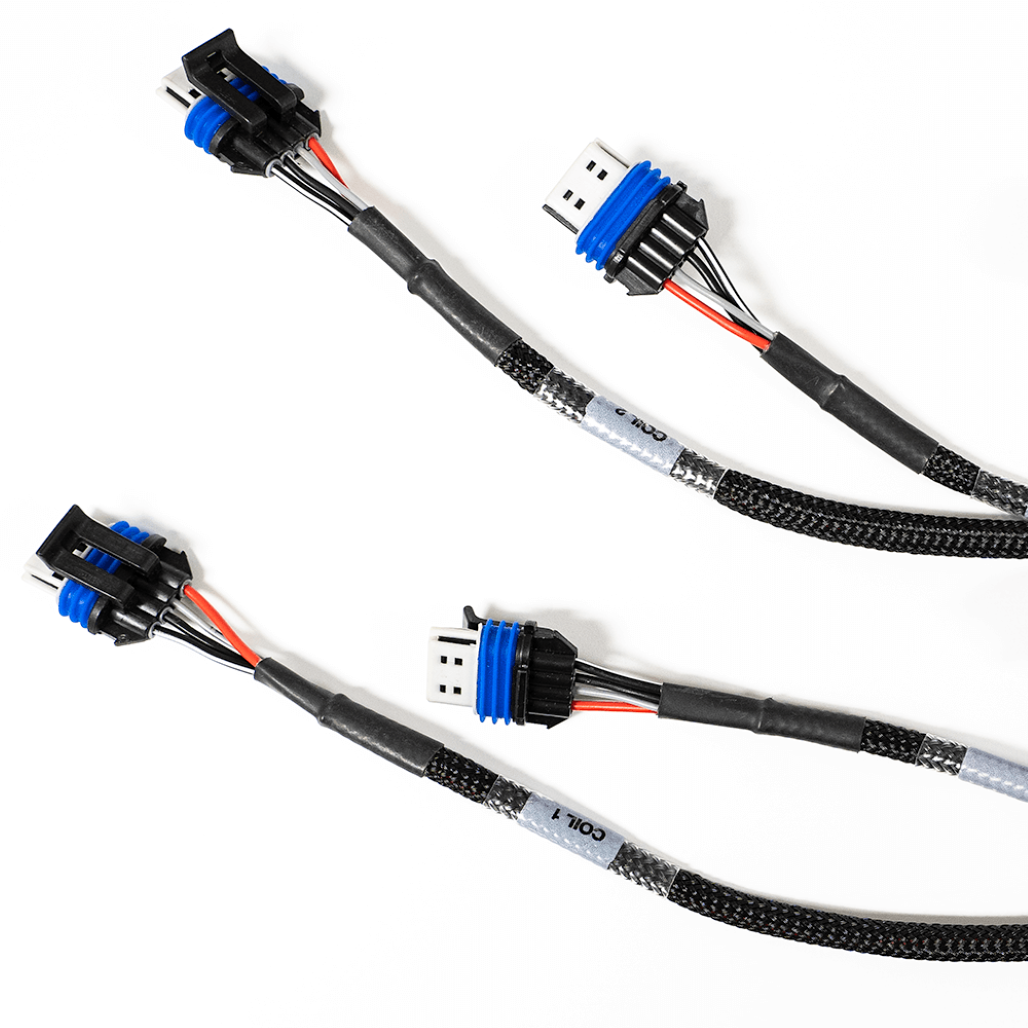

FuelTech FT550 or FT550LITE on a GM Gen IV LS engine. Throttle support covers the OEM GM pedal and electronic throttle body from the LS2, LS3, LS7, LSA, LS9 and similar, as well as a cable throttle body when converted from electronic to mechanical throttle.
Electronic pedal, electronic throttle body, TPS, 24x or 58x crank trigger, front and rear cam sync, flex fuel, fuel pressure, oil pressure, coolant and intake air temperature. More can be added through the INPUTS connector.
