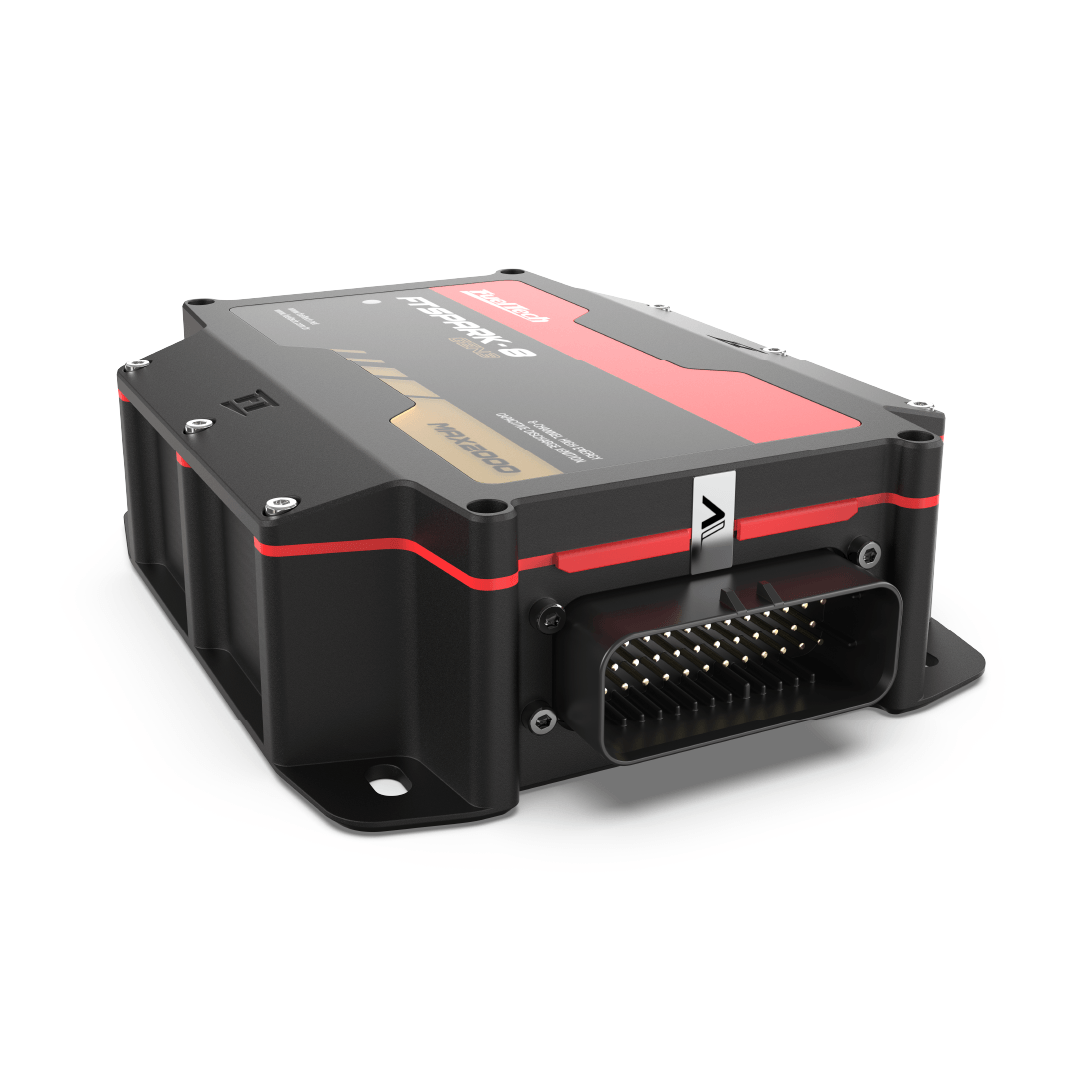

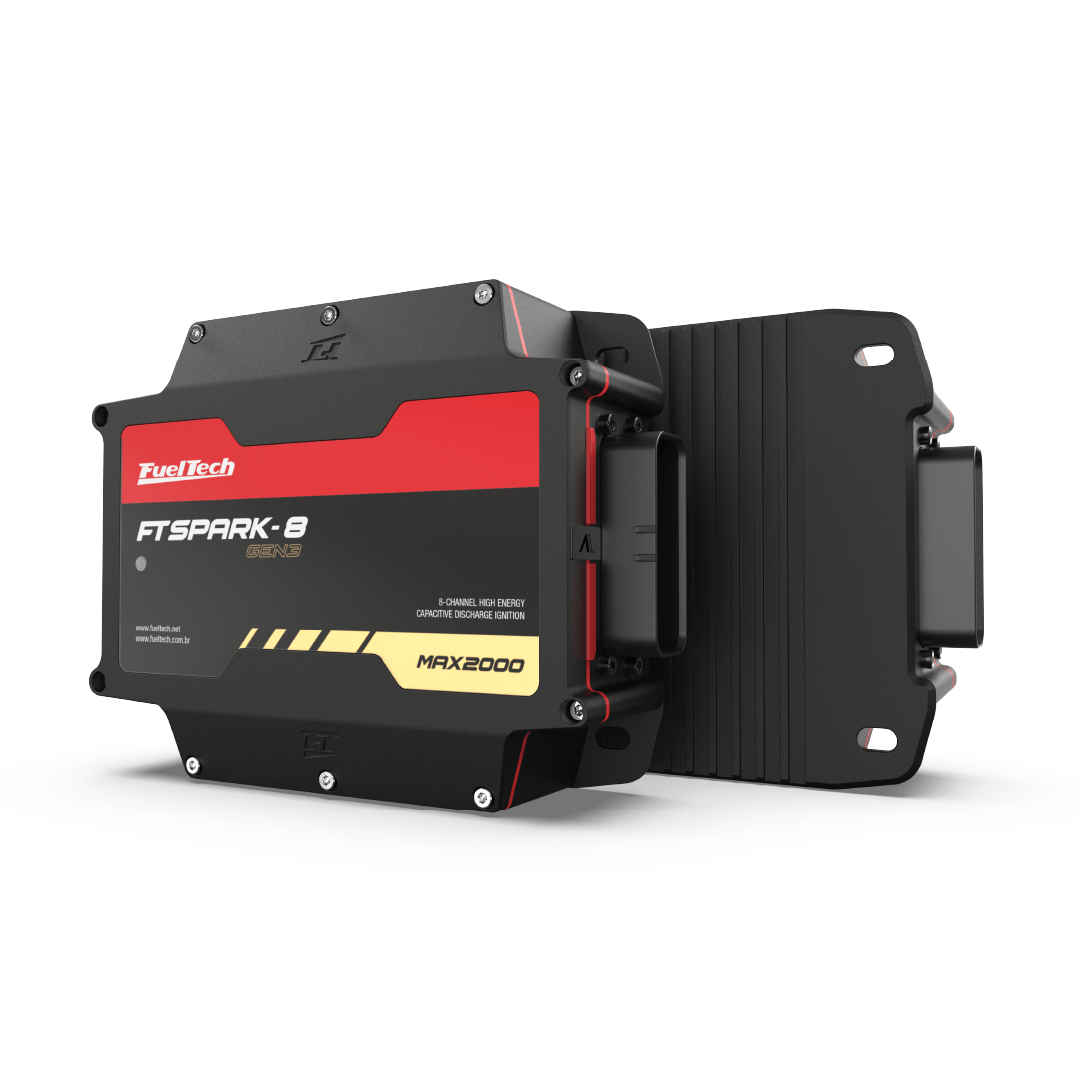

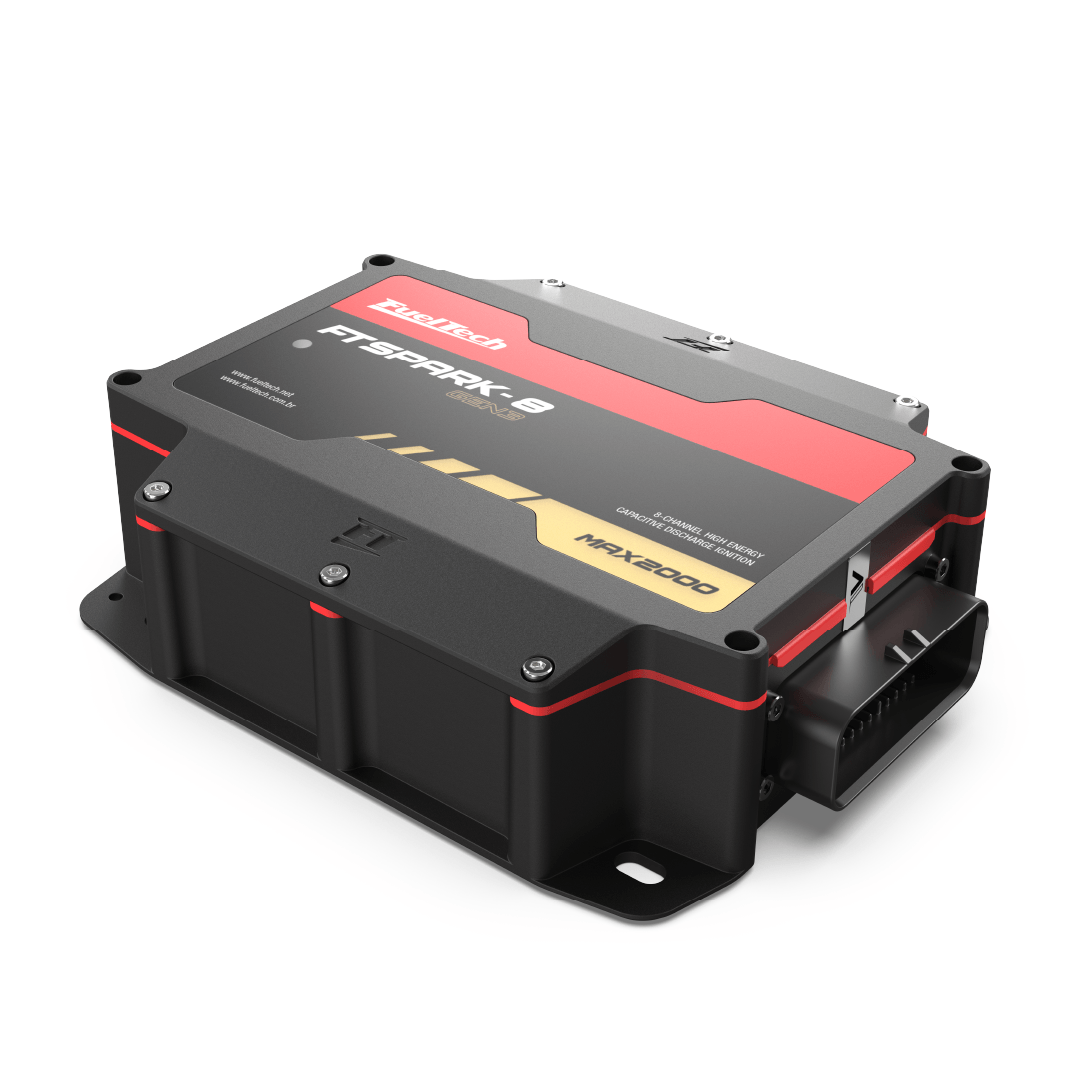

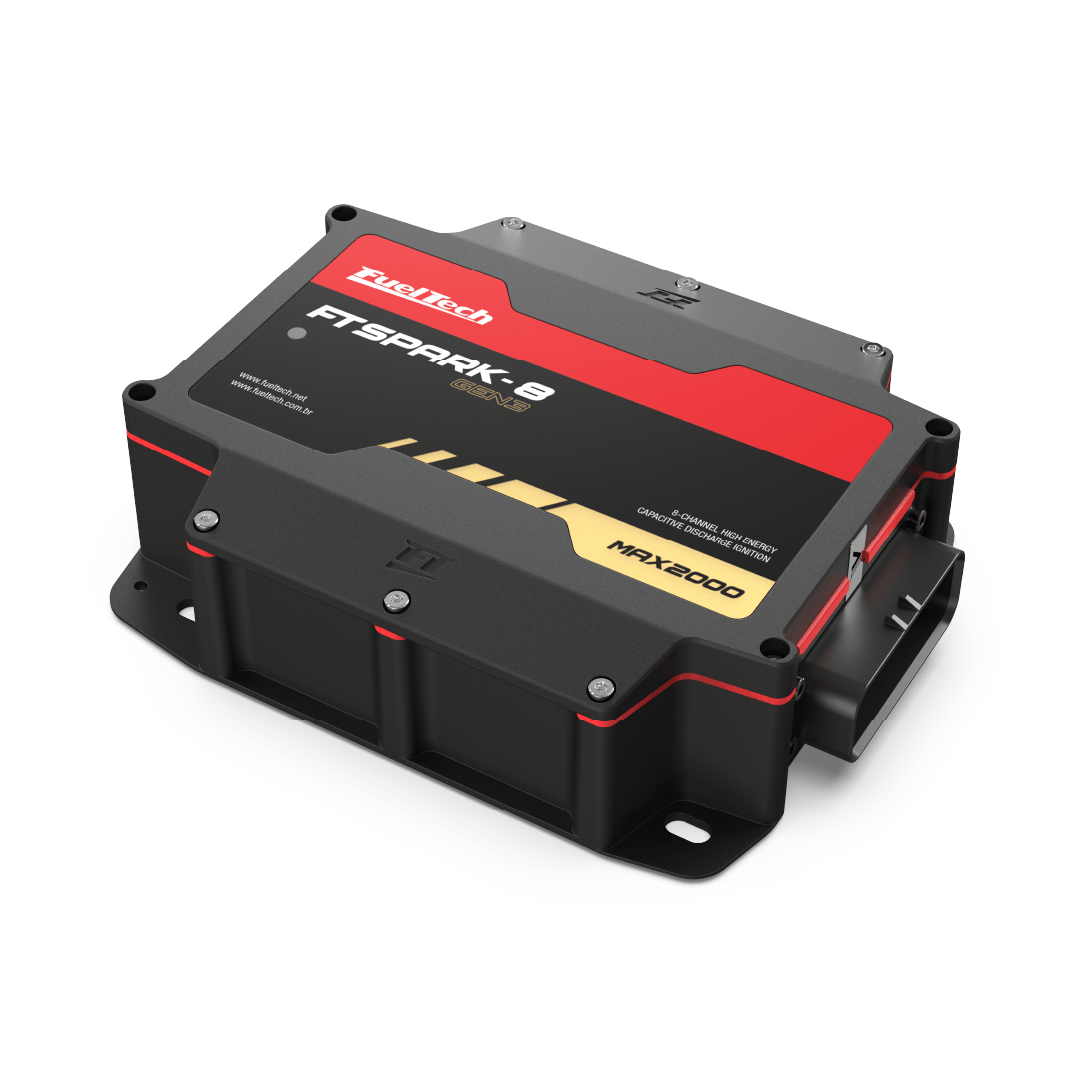

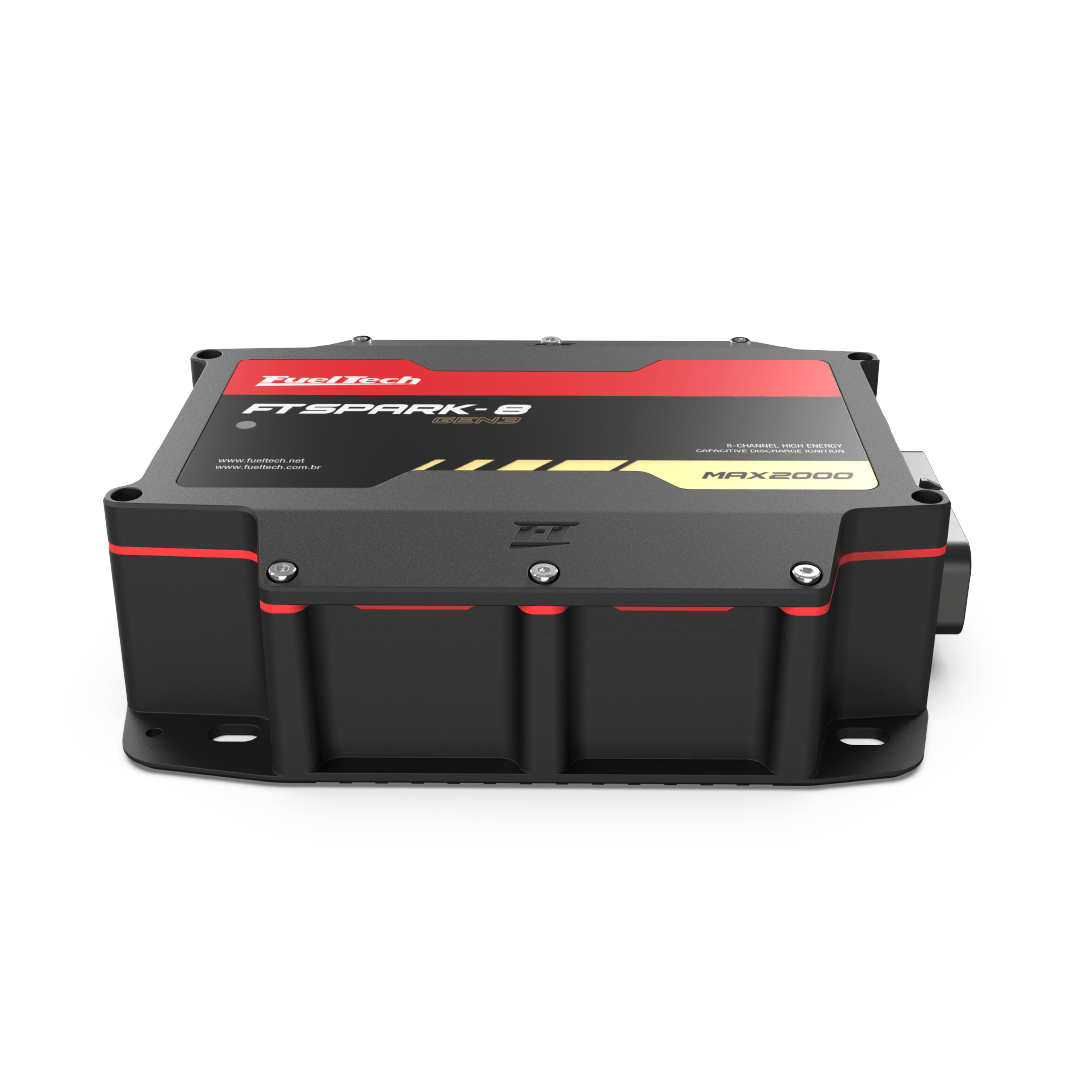

The FTSPARK-8 GEN3 MAX2000 is FuelTech's 8-channel capacitive discharge ignition, rated up to 2000 mJ per channel. It is built for the hardest mixtures to light - big boost, high compression, alcohol and nitromethane - and adds CAN control, per-channel diagnostics and a Multispark mode over the GEN2 unit it replaces. Eight independent channels cover V8s and other engines up to 8 cylinders.
- Up to 2000 mJ of ignition energy per channel
- 475-500 V primary coil voltage to help prevent misfire under high boost and compression
- Up to 175 A primary coil current with the FuelTech CDI Racing Ignition Coil
- Strong spark current even when energy is turned down to 150 mJ
- Programmable Multispark mode fires a series of sparks per combustion event
- Ignition energy adjustable over CAN or a dedicated energy-level input
- Per-channel diagnostics over CAN; channel data logs in the FuelTech datalogger
- Single-wire multiplexed trigger input can fire all channels from one ECU output
- Motorsport-standard trigger inputs for use with other ECUs
Who it's for
Engines running high cylinder pressure, heavy boost, alcohol or nitromethane, where conventional ignition systems reach their limits. Intended for drag racing, rally, off-road and endurance use.
Installation notes
GEN3 MAX2000 keeps the GEN2 pinout and mounting points, so it is a direct mechanical and electrical swap for an FTSPARK GEN2 - no rewiring. Internally it has reinforced construction for vibration and G-loads, automotive-grade connectors and an improved thermal design for lower operating temperatures and longer duty cycles.
