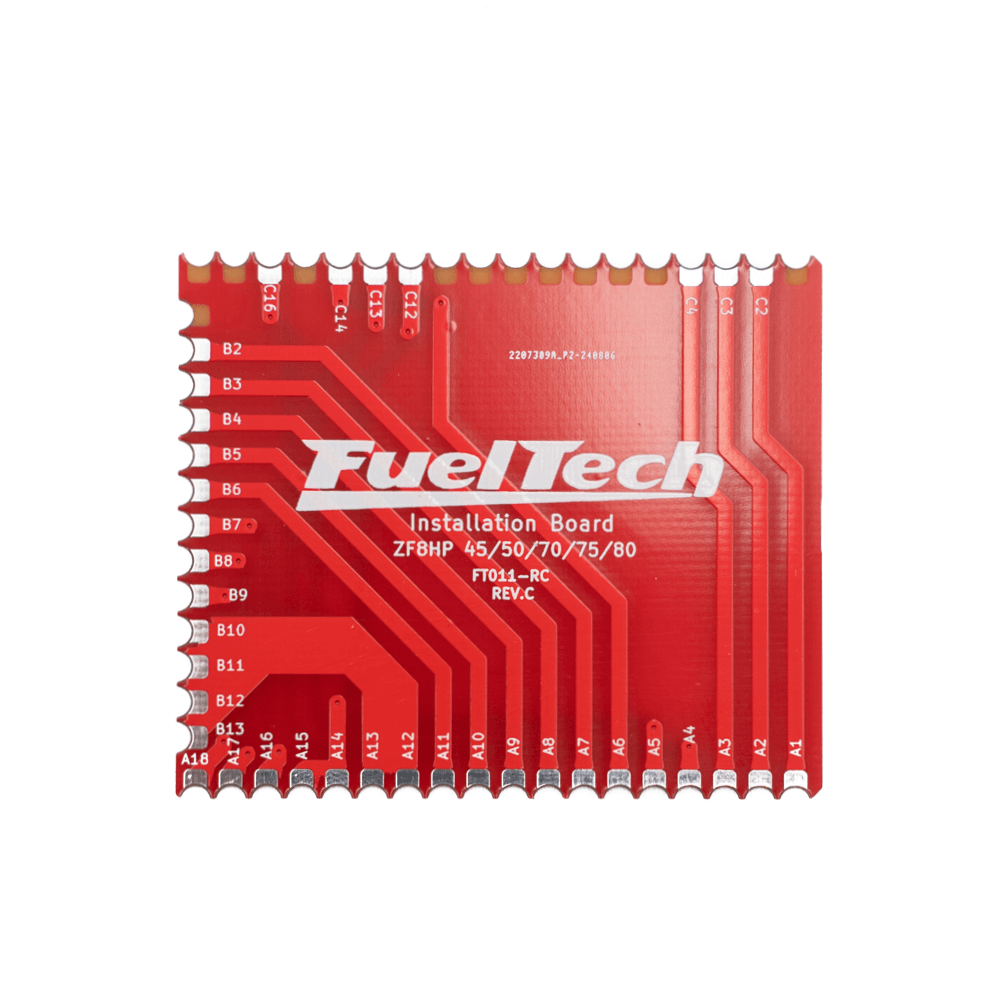

The FuelTech 8HP PCB is a purpose-built circuit board that takes the place of the factory mechatronic control electronics on a ZF 8HP, so the transmission can be commanded directly by a FuelTech ECU. Shift points, line pressure and torque management all live in the FuelTech map instead of a locked OEM TCU — which is exactly what a swapped 8HP needs when the donor car's controller isn't coming along.
- Interfaces the 8HP valve body solenoids and sensors with a FuelTech ECU
- Shift points, line pressure and shift timing set from the programmable map
- Live data for transmission temperature, fluid pressure and shift behavior
- Built for swaps — no donor-vehicle CAN network or OEM TCU required
- Board only; installed into the transmission by the customer or their shop
What else you need
The board is one part of a three-piece control system. A complete 8HP setup on FuelTech also requires:
- A FuelTech ECU to run the transmission strategy
- A FuelTech Peak & Hold PRO injector driver to drive the transmission's pressure solenoids
Who it's for
Builders already running — or planning to run — FuelTech engine management who want the 8HP controlled from the same ECU rather than a separate standalone TCU. It pairs with ASE's 8HP conversion kits, which supply the mechanical side of the swap: adapter plate, flexplate and driveshaft adapter.
Installation
Fitting the board means opening the transmission and replacing the control electronics on the valve body, so it should be done by a qualified transmission technician. Improper installation can cause transmission malfunction or failure. Read the FuelTech 8HP board installation manual before ordering.
