Adapting a 2JZGTE, 2JZ, 1JZ, or 2JZGE engine to a 350Z CD009 6-speed transmission, using a J3 bell housing.

Hardware for the slave, adapter plate, flywheel, and bell housing, plus a pilot bearing adapter bushing and a new input shaft seal.

The J3 bell housing itself and the GM T56 slave cylinder.

Why is the J3 plate thinner than the J1 J2 plate?

Because the J3 transmission is significantly deeper, so the plate is machined thinner to compensate.

Does the J3 bell housing need to be notched?

Yes. The thinner J3 plate leaves less vertical height around the bell housing, so the clutch lines interfere. Hold the bell housing up to the plate, mark where the lines and fittings want to pass through, and grind the notches out. J1 and J2 plates do not require notching because they are thicker and leave enough clearance.

What are the torque specs?

Adapter plate countersunk bolts torque to 30 ft-lb and the bell housing torques to 40 ft-lb. Both are engraved on the bottom of the plate.

What bolt lengths does the J3 plate use?

The J3 plate uses 50mm long bolts in 8x1.25 thread pitch, plus two short 30mm bolts. J1 and J2 plates use 70mm bolts instead. Bell housing bolt holes are 10x1.5.

Should I use Loctite on the adapter plate bolts?

No. The countersunk bolts are small and only torque to 30 ft-lb. Aggressive thread locker means stripping the heads the next time the plate comes off for service.

Do I need to cut the spud?

No. The recess on the ASE plate is machined deep enough to clear it. This was addressed by a design change years ago, but the old advice still circulates.

When do I install the slave cylinder?

Before bolting the bell housing to the adapter plate. Once the bell housing is on you cannot get the slave into position or route the lines.

Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE Engine to 350Z CD009 6-speed Transmission Adapter Plate Only - J3

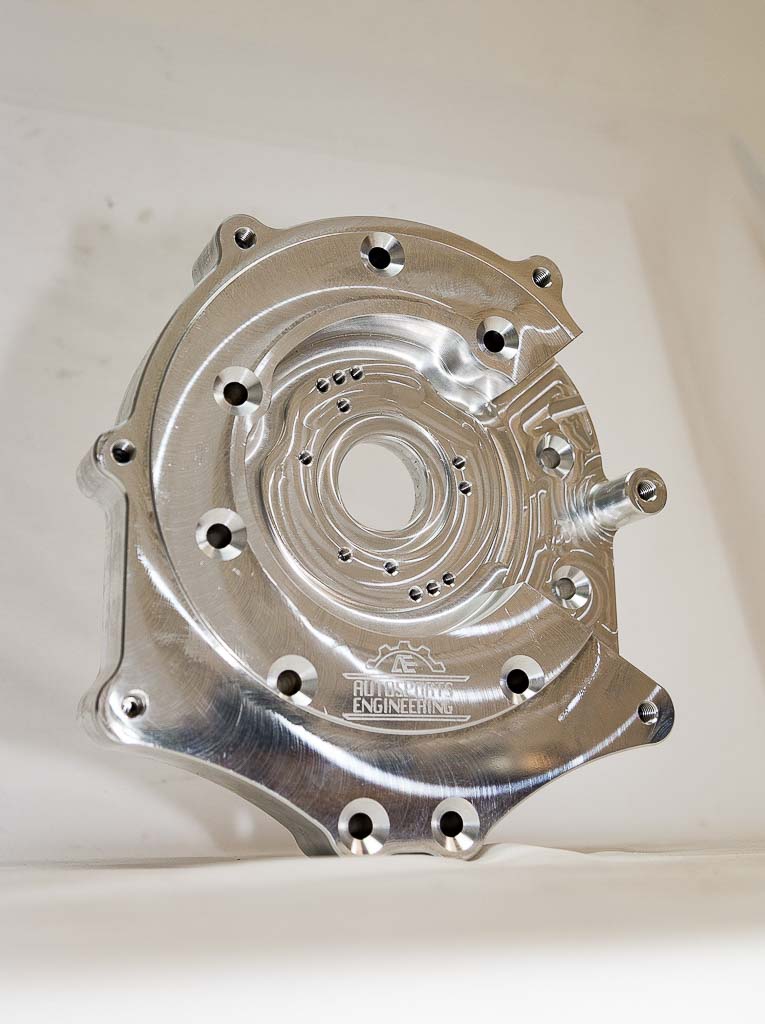

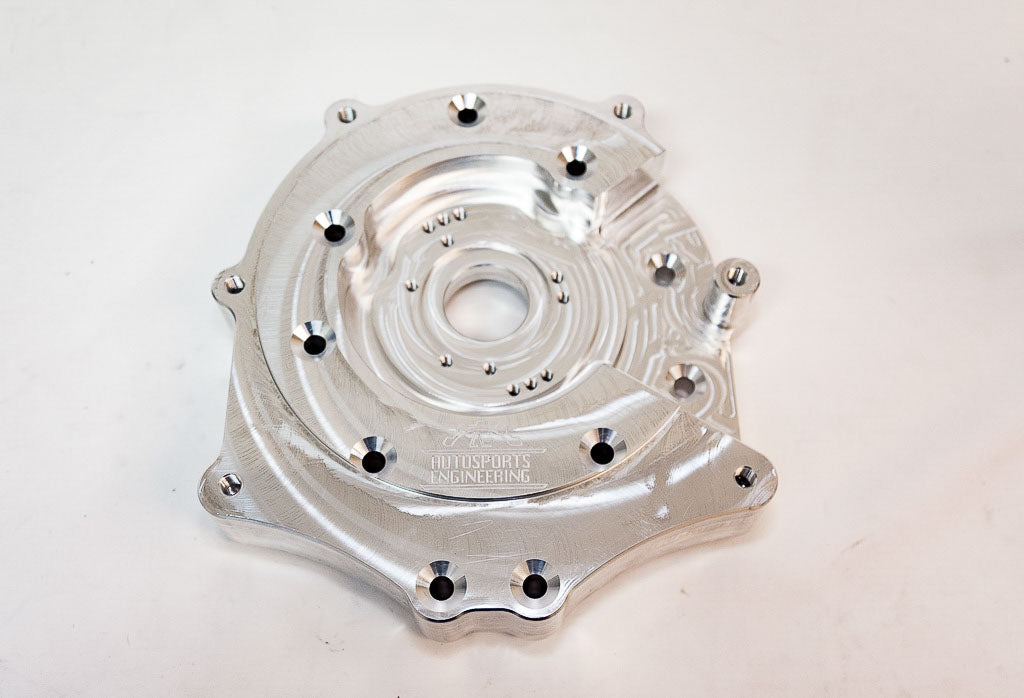

Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3

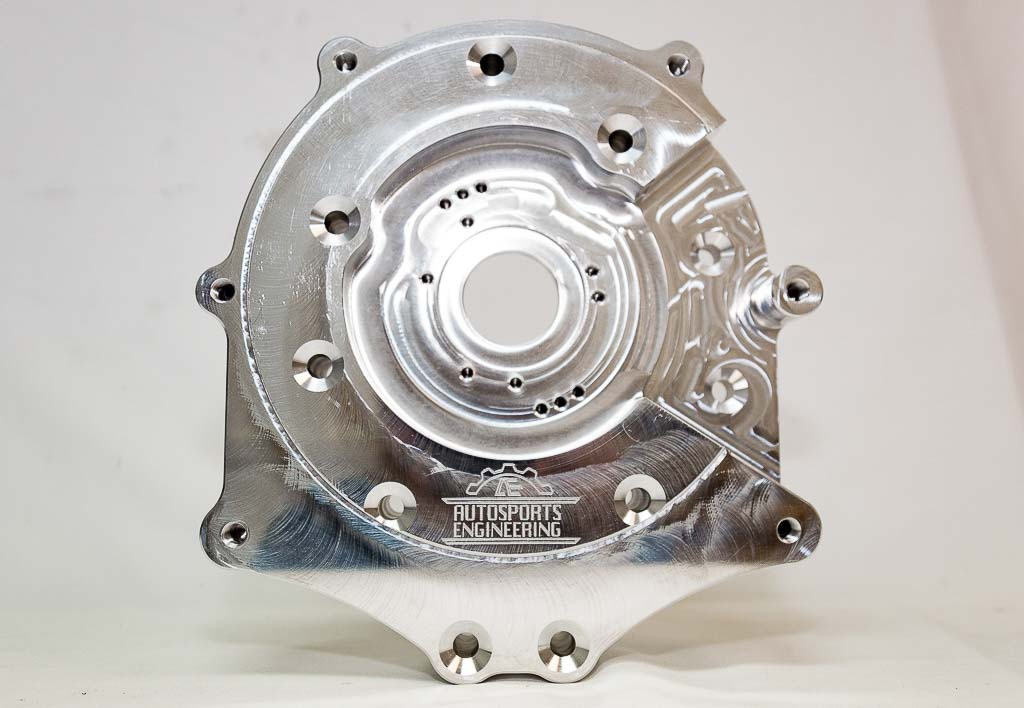

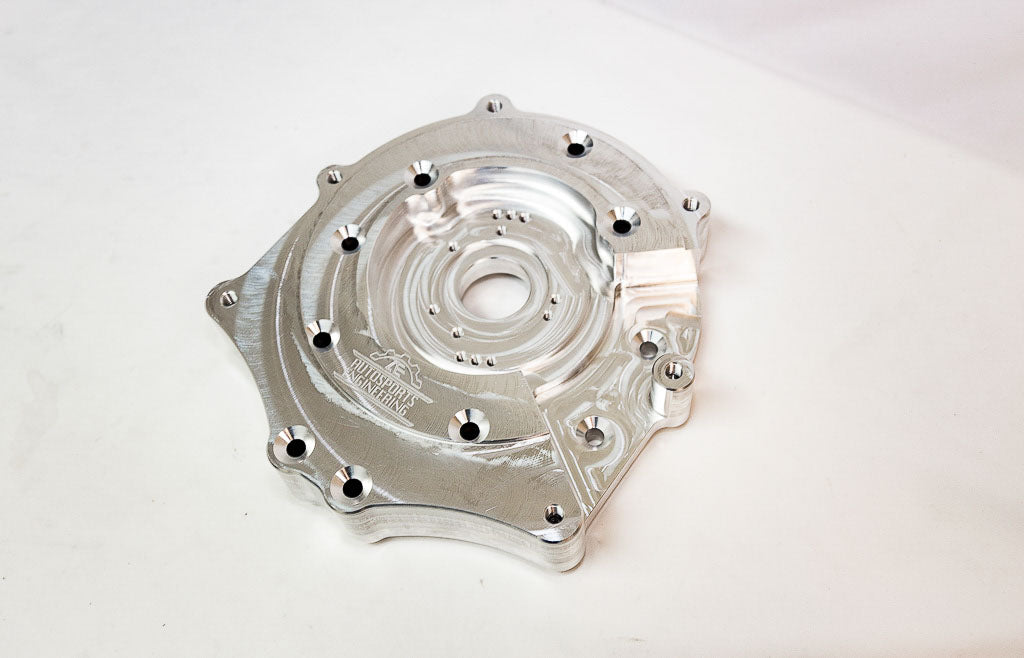

Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3, view 2

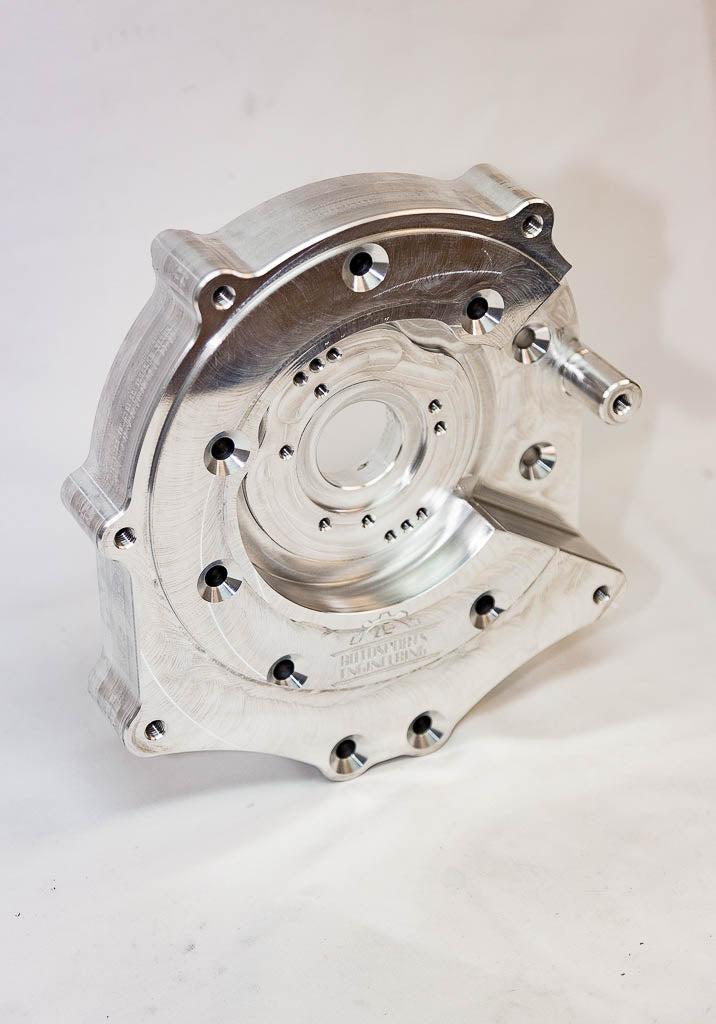

Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3, view 3

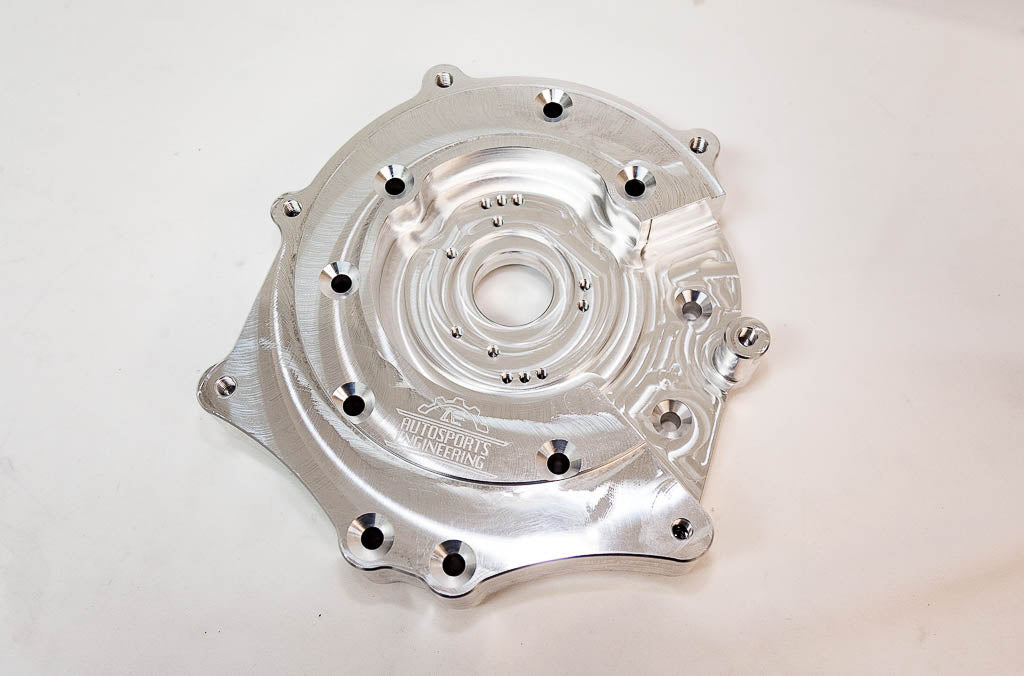

Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3, view 4

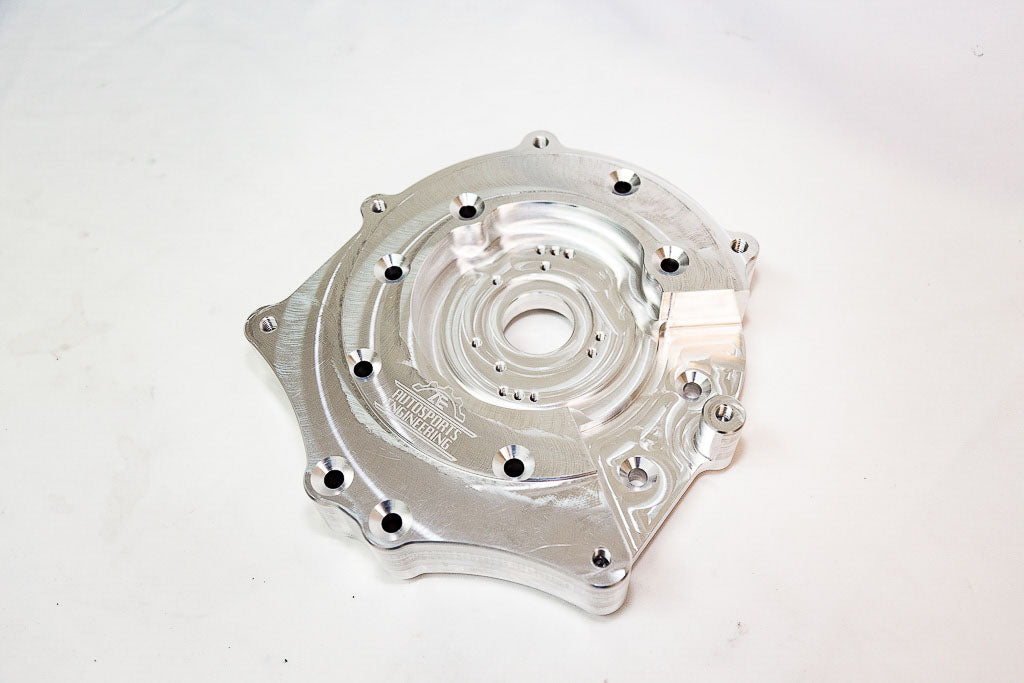

Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3, view 5

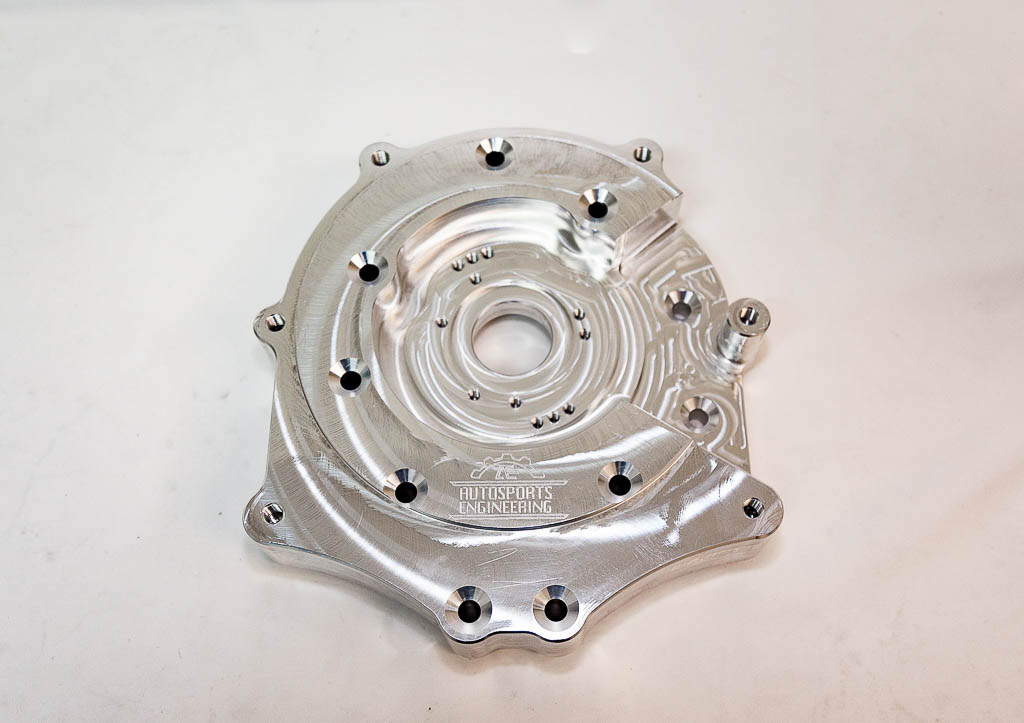

Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3, view 6

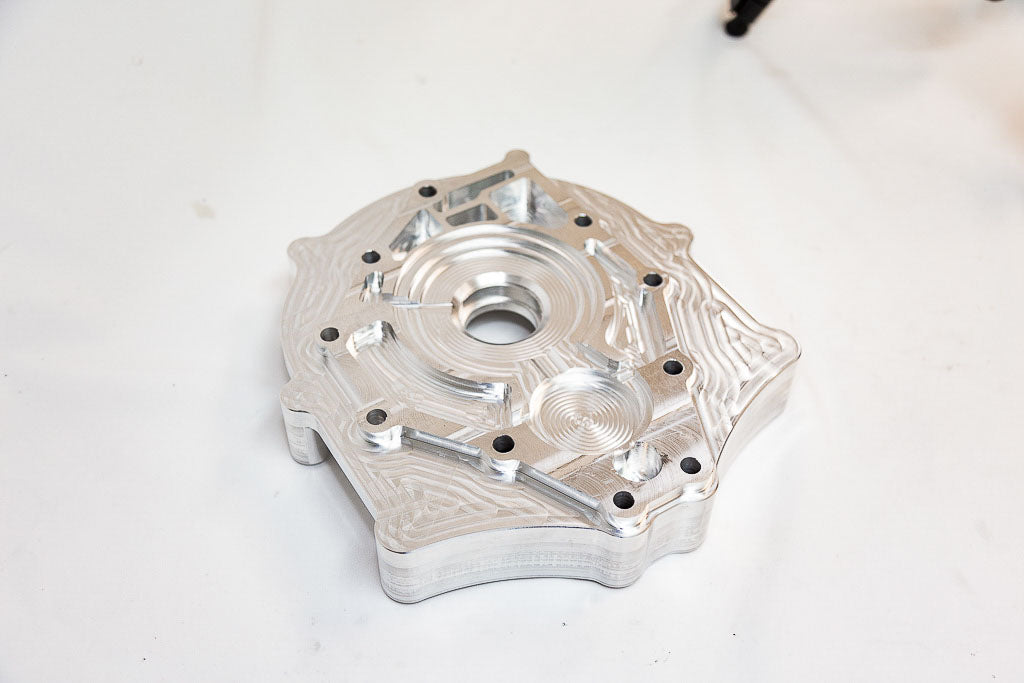

Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3, view 7

Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3, view 8

Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3, view 9

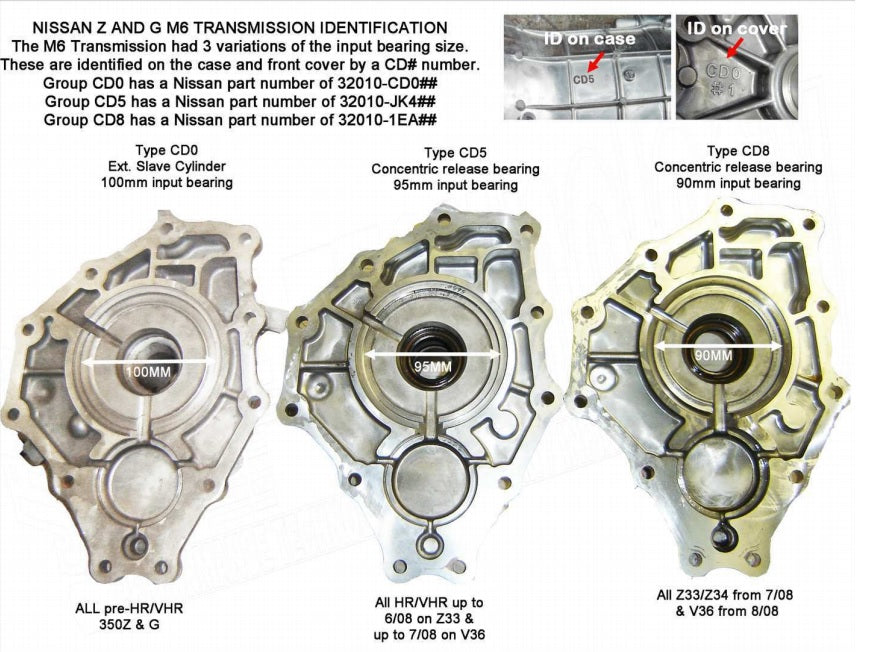

Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3, bearing size detail

Load image into Gallery viewer, Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3

Load image into Gallery viewer, Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3, view 2

Load image into Gallery viewer, Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3, view 3

Load image into Gallery viewer, Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3, view 4

Load image into Gallery viewer, Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3, view 5

Load image into Gallery viewer, Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3, view 6

Load image into Gallery viewer, Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3, view 7

Load image into Gallery viewer, Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3, view 8

Load image into Gallery viewer, Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3, view 9

Load image into Gallery viewer, Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE engine to 350Z CD009 6-speed transmission adapter plate, J3, bearing size detail

Billet 6061 Aluminum Aircraft Grade Uses our ASE Custom flywheel for CD009 Clutch kit Uses Bell...

Autosports Engineering 2JZGTE 2JZ 1JZ 2JZGE Engine to 350Z CD009 6-speed Transmission Adapter Plate Only - J3

Brand: Autosports engineering

SKU: 11601

availability: In stock

Product Code:

$599.99

Billet 6061 Aluminum Aircraft Grade Uses our ASE Custom flywheel for CD009 Clutch kit Uses Bell...

Quantity

- +

Subtotal: $599.99

Quantity must be 1 or more

I agree with the terms and conditions

283 customers are viewing this product

Have Questions?

+1888 641 5150

Ask an Experts

Guaranteed Fitment
Always the correct part

In-House Experts
We know our products

Added Value
Fast Support and Installation Help

Shipping
Wordwide Delivery

Description
Shipping + Returns

Description

Billet 6061 Aluminum Aircraft Grade
Uses our ASE Custom flywheel for CD009 Clutch kit
Uses Bell Housing from Automatic 2JZ not included (J3)
Uses GM T56 slave cylinder not included
Pilot Bearing Adapter Bushing included
Includes Hardware for Slave , Adapter Plate, Flywheel & Bell Housing
New input shaft seal included

J3 specific — the bell housing needs notching

The J3 plate is thinner than the J1/J2 plate because the J3 transmission is significantly deeper. That leaves less vertical height around the bell housing, so the clutch lines interfere and the housing must be notched.

Method: hold the bell housing up to the plate, mark with a sharpie where the lines and fittings want to pass through, and grind the notches out. J1 and J2 plates do not require this.

Torque specifications

Adapter plate countersunk bolts — 30 ft-lb
Bell housing — 40 ft-lb

Hardware

All plate bolts are 8 × 1.25 thread pitch. The J3 plate uses 50mm bolts plus two short 30mm bolts. Bell housing holes are 10 × 1.5.

Complete installation video

J3 bell housing notching is covered at 9:23. Read the full written installation guide →
