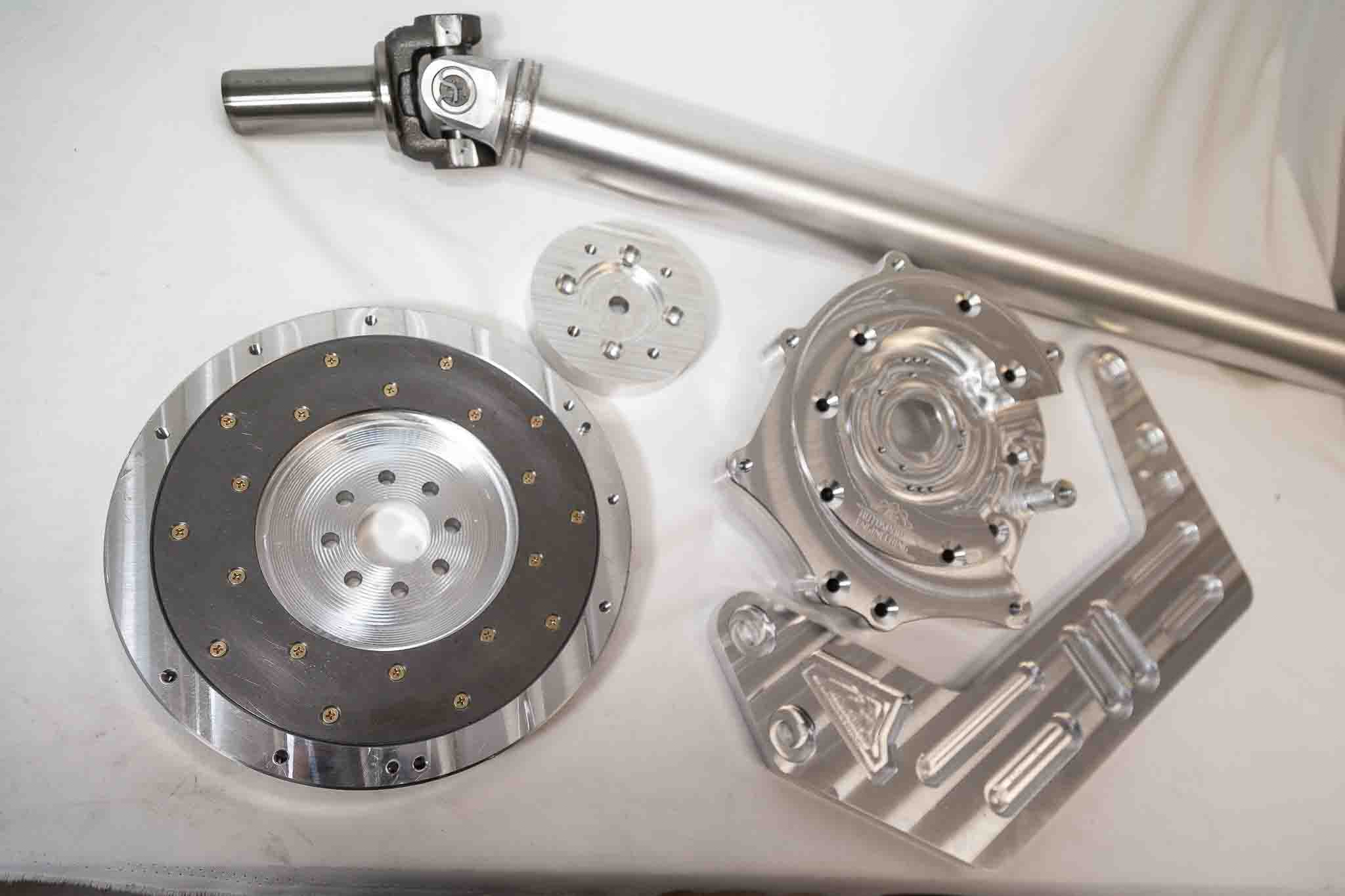

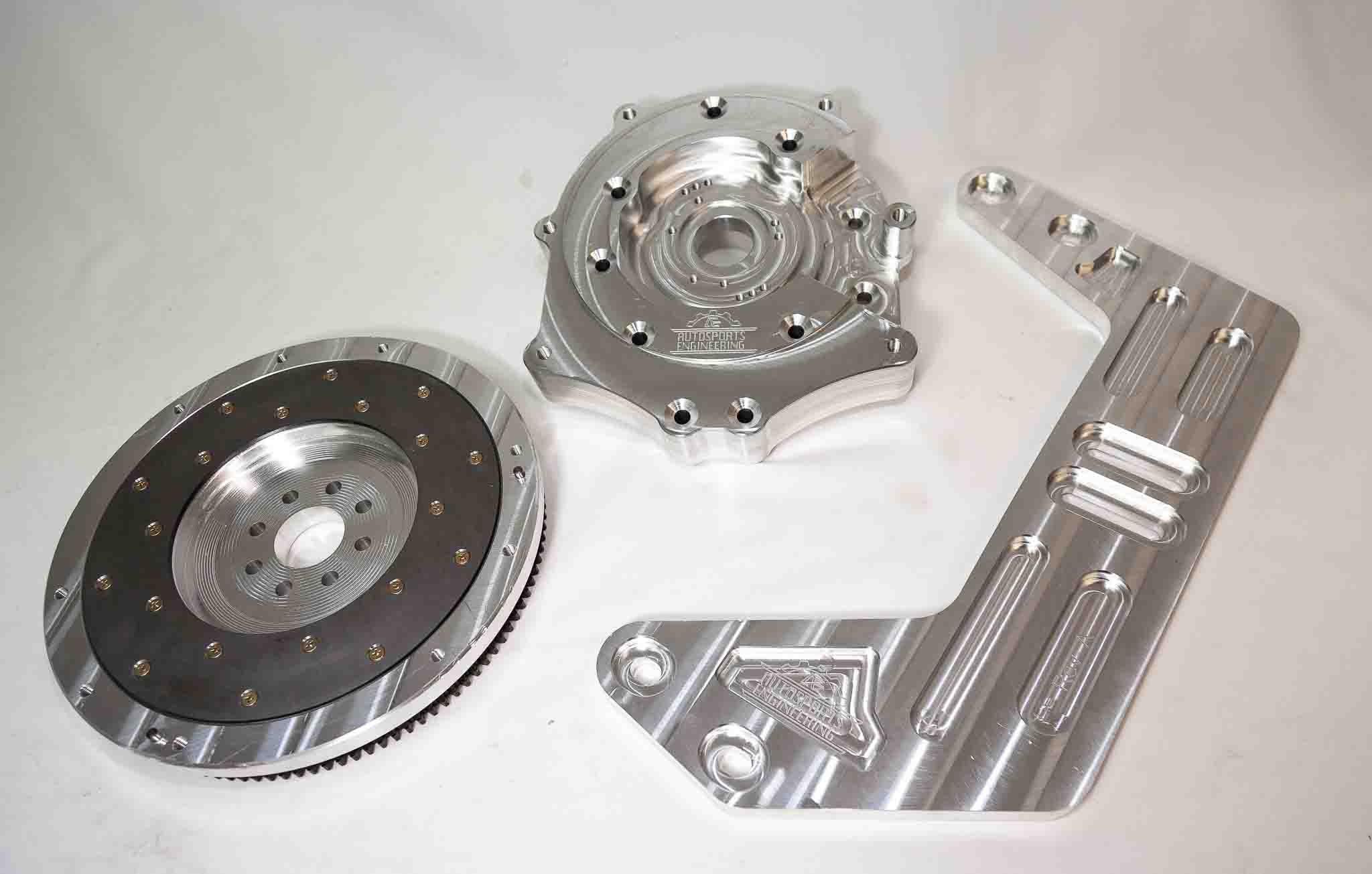

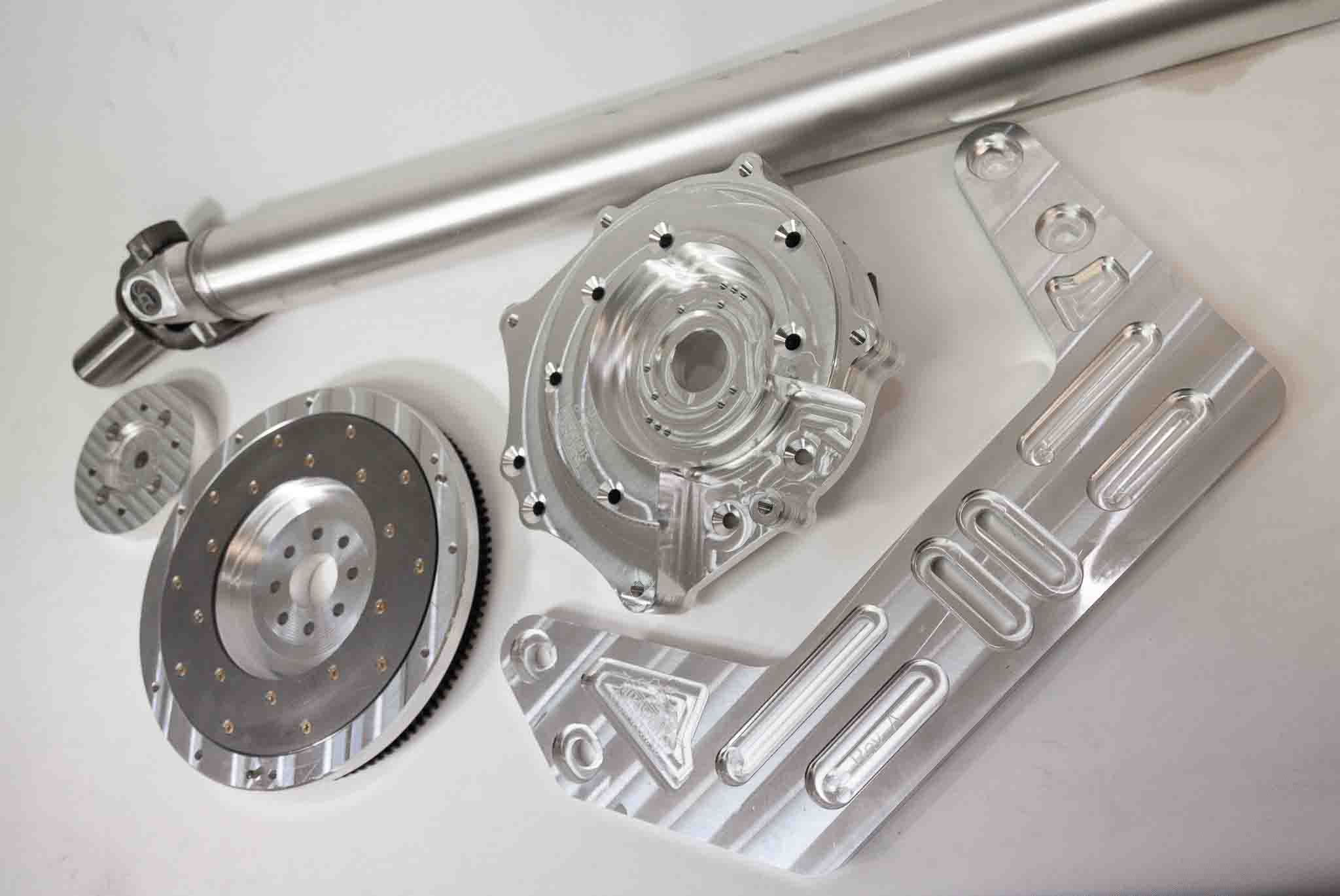

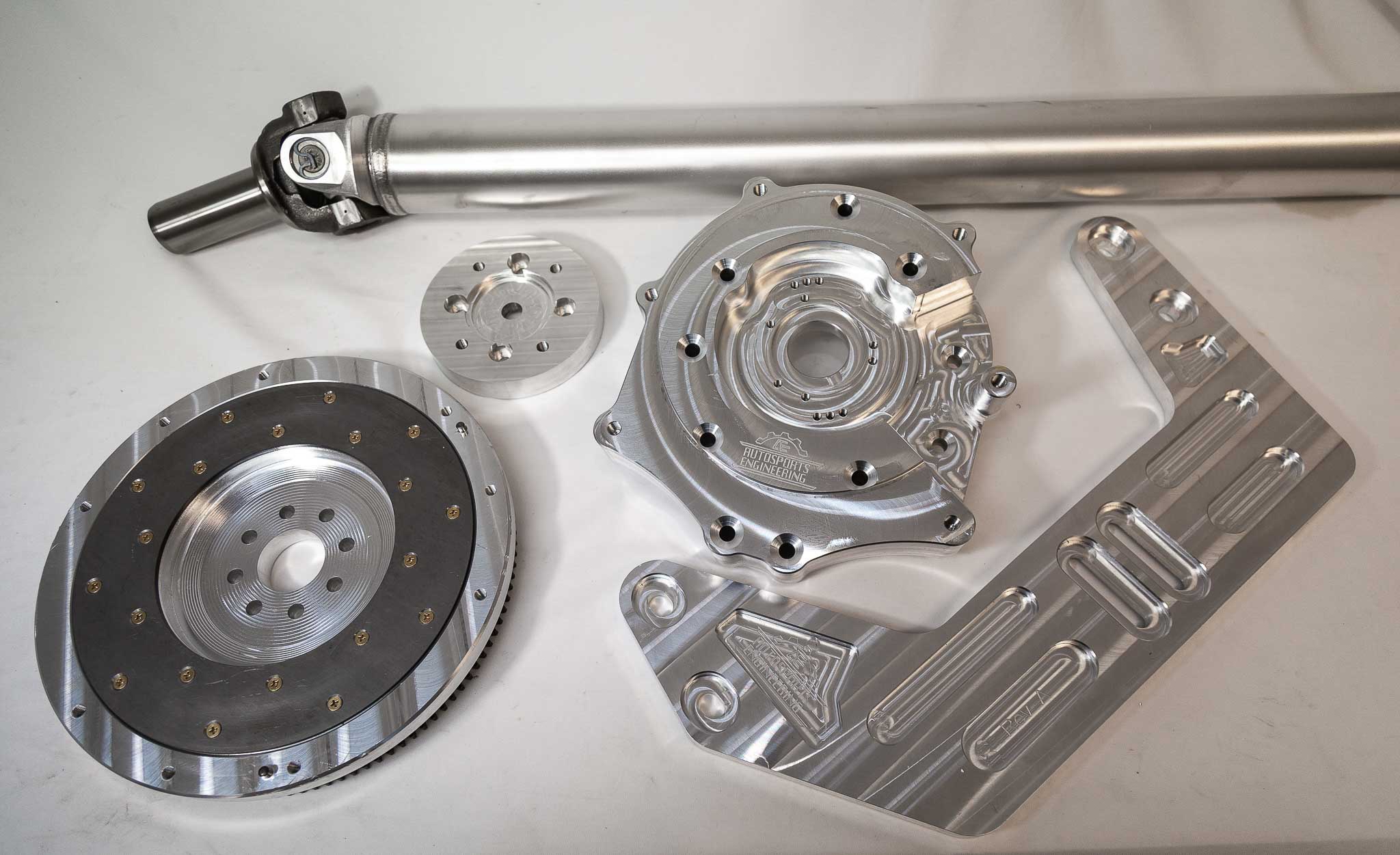

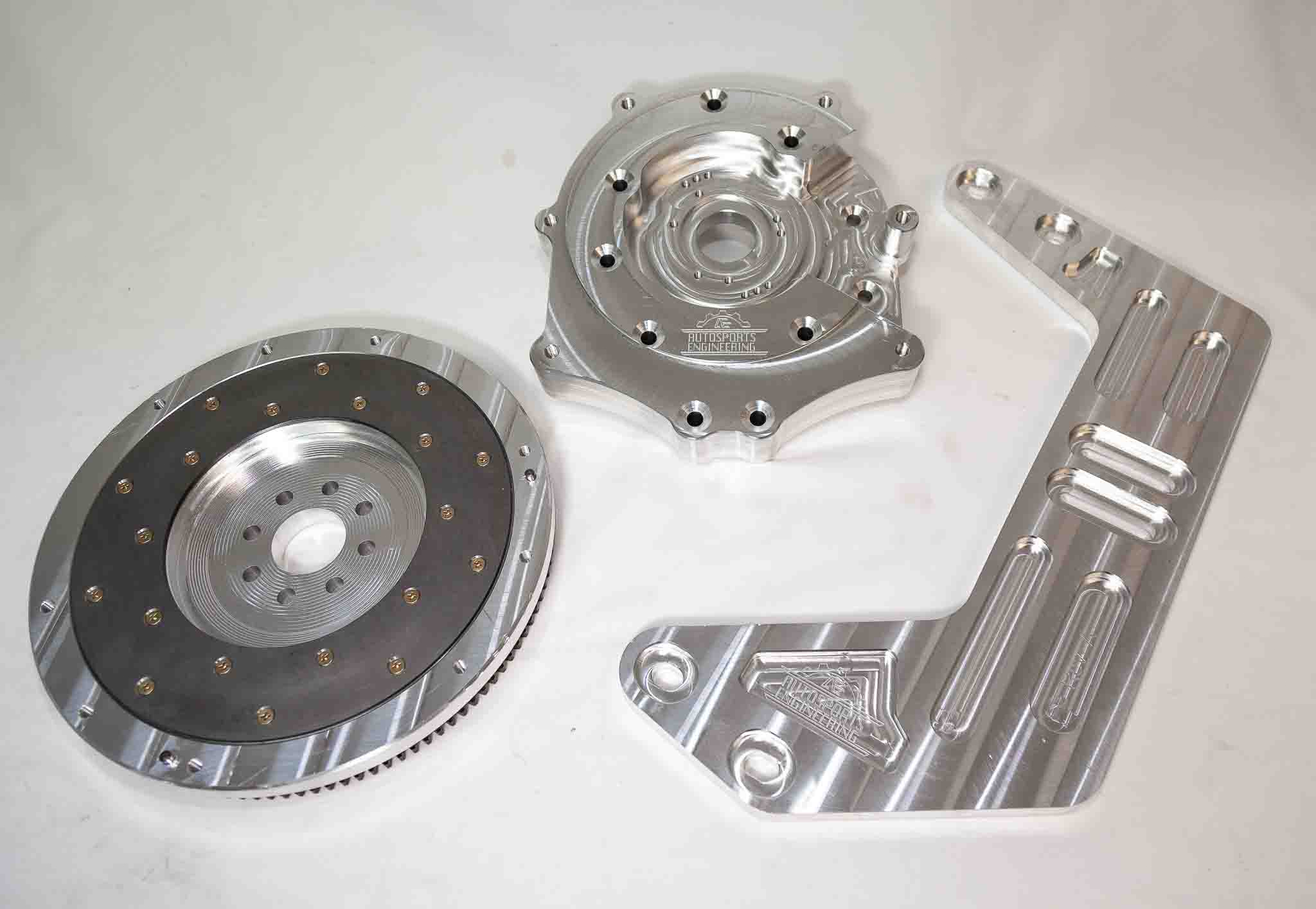

Base Kit: Adapter Plate, Flywheel, Crossmember & Mount, Hardware, Pilot Bearing, Bearing Rings
-
Billet 6061 Aluminum Construction: Aircraft-grade aluminum for durability and strength.
-
Compatible with Various Clutch Kits: Works with Single Disc 350Z/370Z Clutch kits from ACT, SPEC, Competition, Clutch Masters and others.
-
Custom Flywheel Included: ASE Custom flywheel designed for the CD009 Clutch kit.
-
Comprehensive Kit: Includes Transmission Crossmember with Mount & Hardware.
-
Full Hardware Set: Hardware for Slave, Adapter Plate, Flywheel & Bell Housing.
-
Pilot Bearing Adapter Bushing: Included.
-
Note: Bell Housing from Automatic 2JZ, GM T56 slave cylinder, and J1 J2 or J3 bell housing not included.
Identifying your bell housing — J1, J2 or J3
The J-code refers to the Toyota A340 automatic bell housing and is stamped into the casting of your original automatic bell housing. A J3 plate can be requested after ordering at the same price.

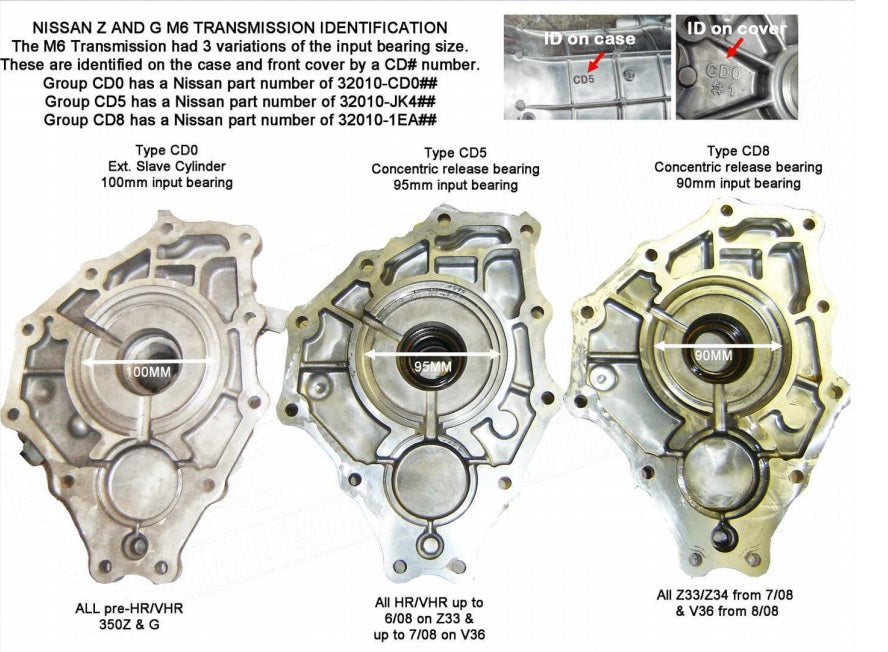

CD or JK transmission?
Either works — CD and JK adapter plates interchange freely. The 350Z uses the CD009; the 370Z, G37 and later G35 use the JK. The only ASE product where the distinction matters is the front mount shifter.
Slave cylinder
Uses the T56 99 Camaro slave cylinder for correct throw, installed fully compressed against the pressure plate fingers with no preload.
Clutch note
350Z and 370Z clutch kits are the same for this conversion — only the release bearing differs, and that bearing is not used here because the conversion runs the T56 bearing instead.
Driveshaft
Not included — ordered separately. Steel and aluminum are both built on 3" tube, and carbon is also offered.
